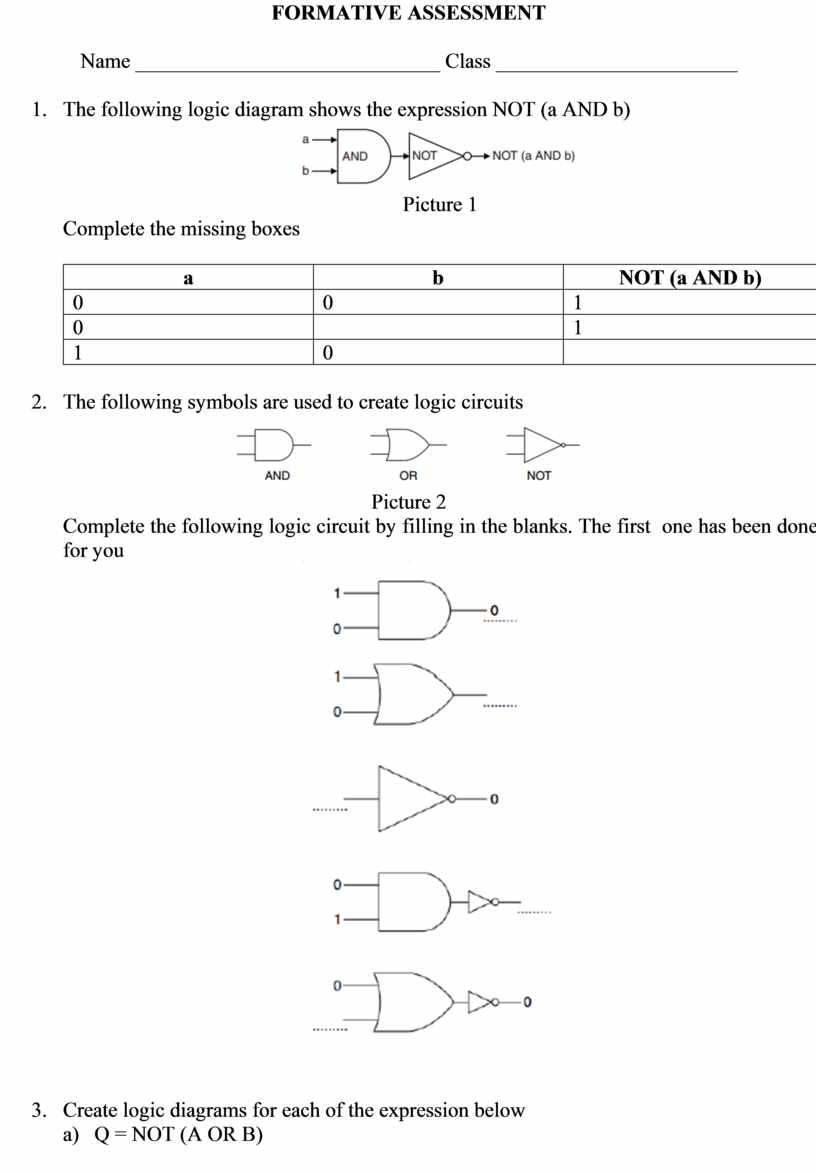

FORMATIVE ASSESSMENT
Name _____________________________ Class _______________________
1. The following logic diagram shows the expression NOT (a AND b)
Picture 1
Complete the missing boxes
|
a |
b |
NOT (a AND b) |
|
0 |
0 |
1 |
|
0 |
|
1 |
|
1 |
0 |
|
2. The following symbols are used to create logic circuits
Picture 2

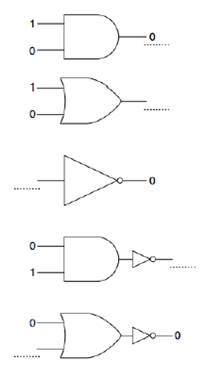

Complete the following logic circuit by filling in the blanks. The first one has been done for you

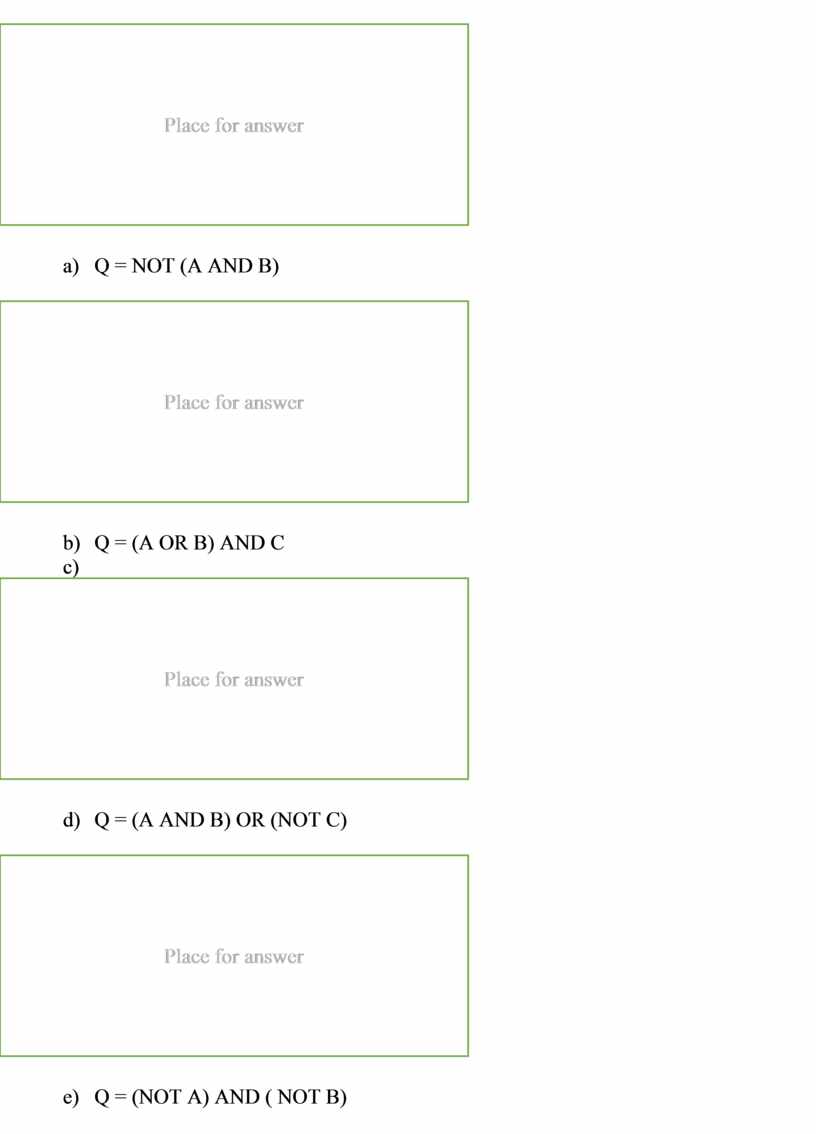

3. Create logic diagrams for each of the expression below
a) Q = NOT (A OR B)
b) Q = NOT (A AND B)
c) Q = (A OR B) AND C
d)
e) Q = (A AND B) OR (NOT C)
f) Q = (NOT A) AND ( NOT B)

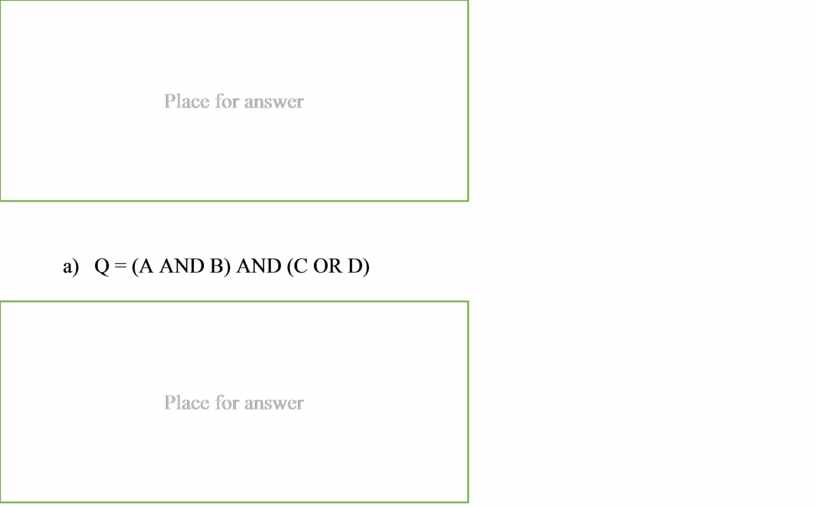

g) Q = (A AND B) AND (C OR D)
