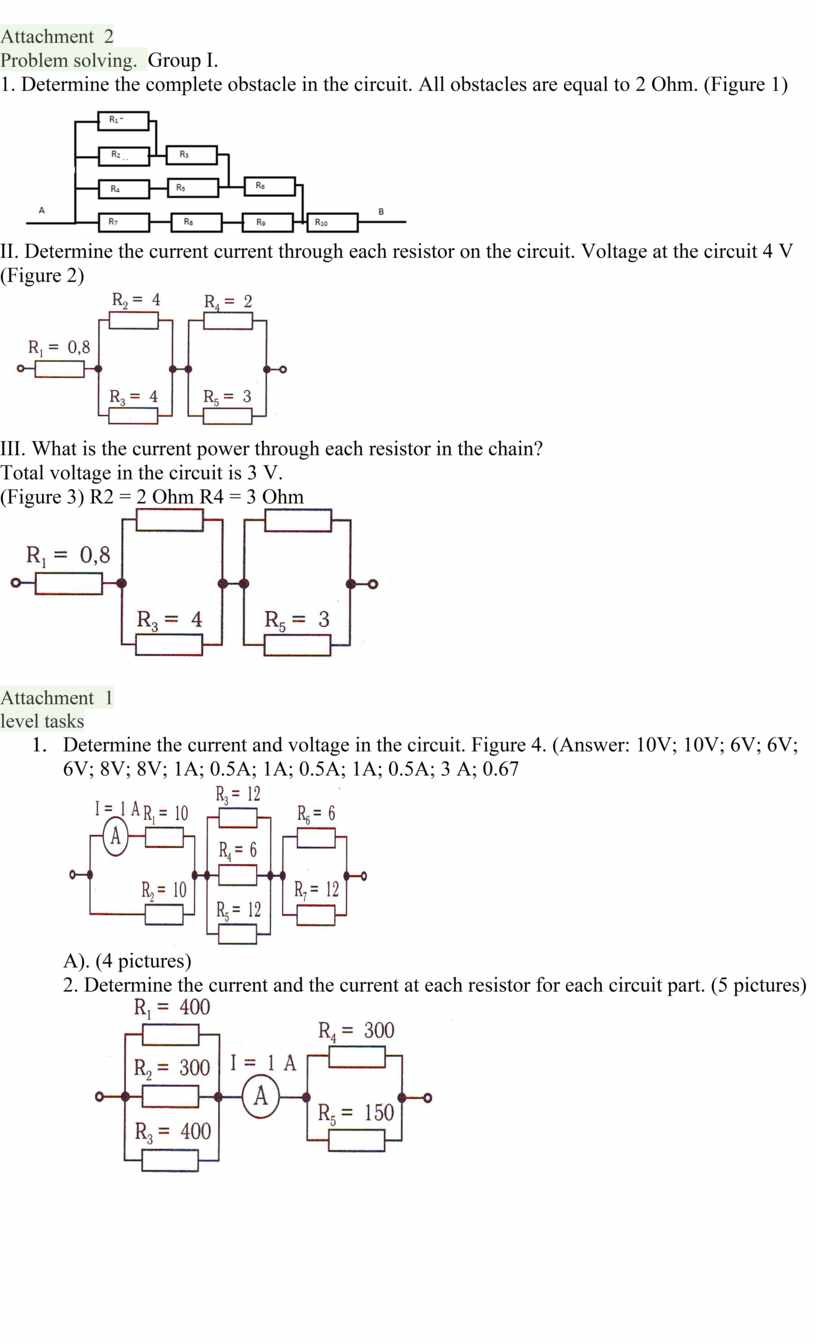

Problem solving. Group I.

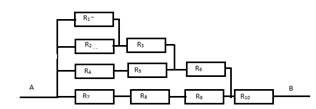

1. Determine the complete obstacle in the circuit. All obstacles are equal to 2 Ohm. (Figure 1)
II. Determine the current current through each resistor on the circuit. Voltage at the circuit 4 V (Figure 2)
III. What is the current power through each resistor in the chain?
Total voltage in the circuit is 3 V.

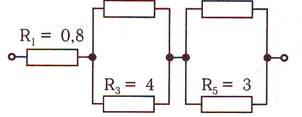

(Figure 3) R2 = 2 Ohm R4 = 3 Ohm
Attachment 1
level tasks
1. Determine the current and voltage in the circuit. Figure 4. (Answer: 10V; 10V; 6V; 6V; 6V; 8V; 8V; 1A; 0.5A; 1A; 0.5A; 1A; 0.5A; 3 A; 0.67
A). (4 pictures)
2. Determine the current and the current at each resistor for each circuit part. (5 pictures)
