Mixed connection of conductors..pptx
Mixed connection of conductors |
-to use Ohm's law for a circuit unit with mixed connection of conductors; |
the purpose of the lesson:

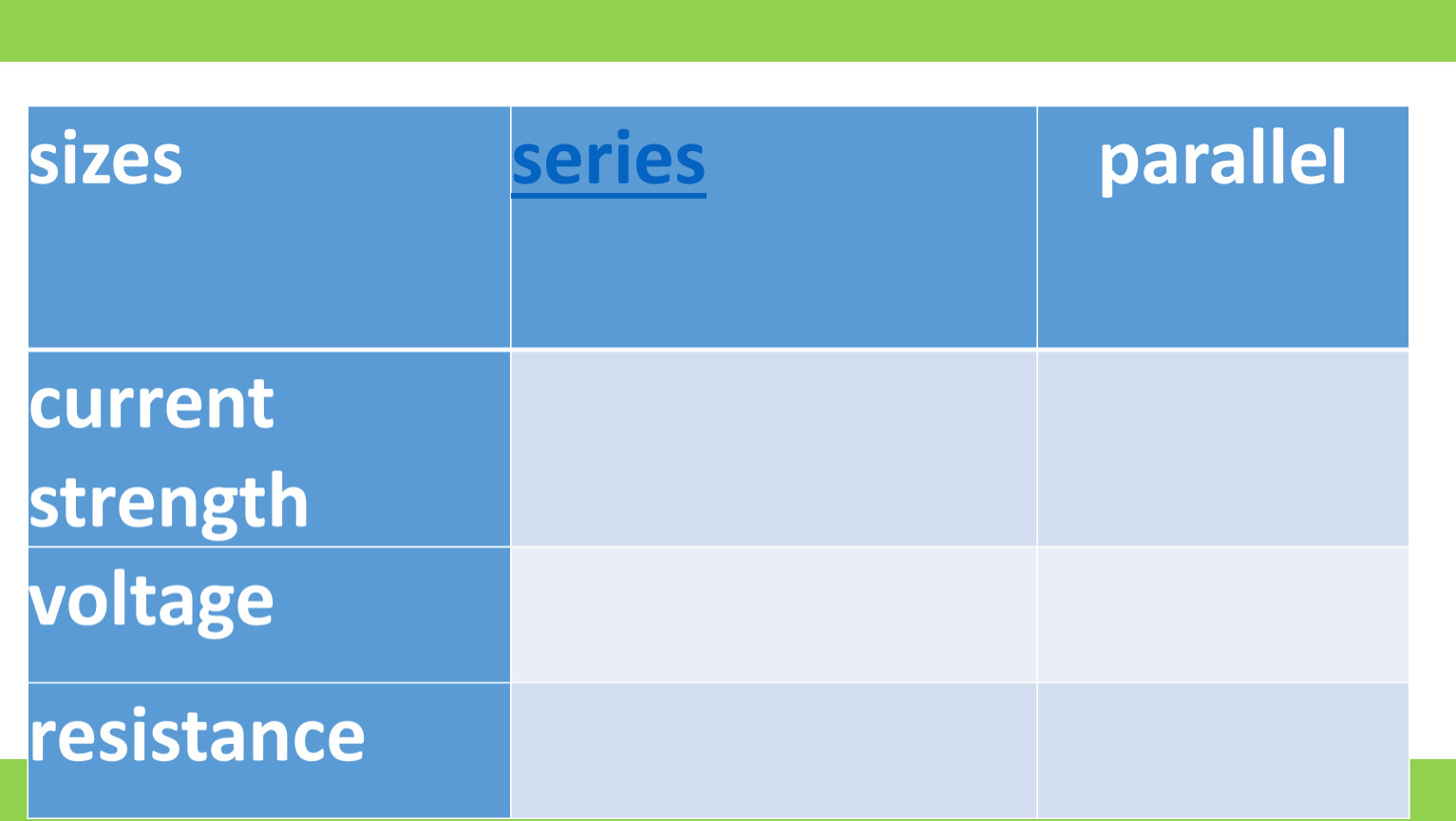

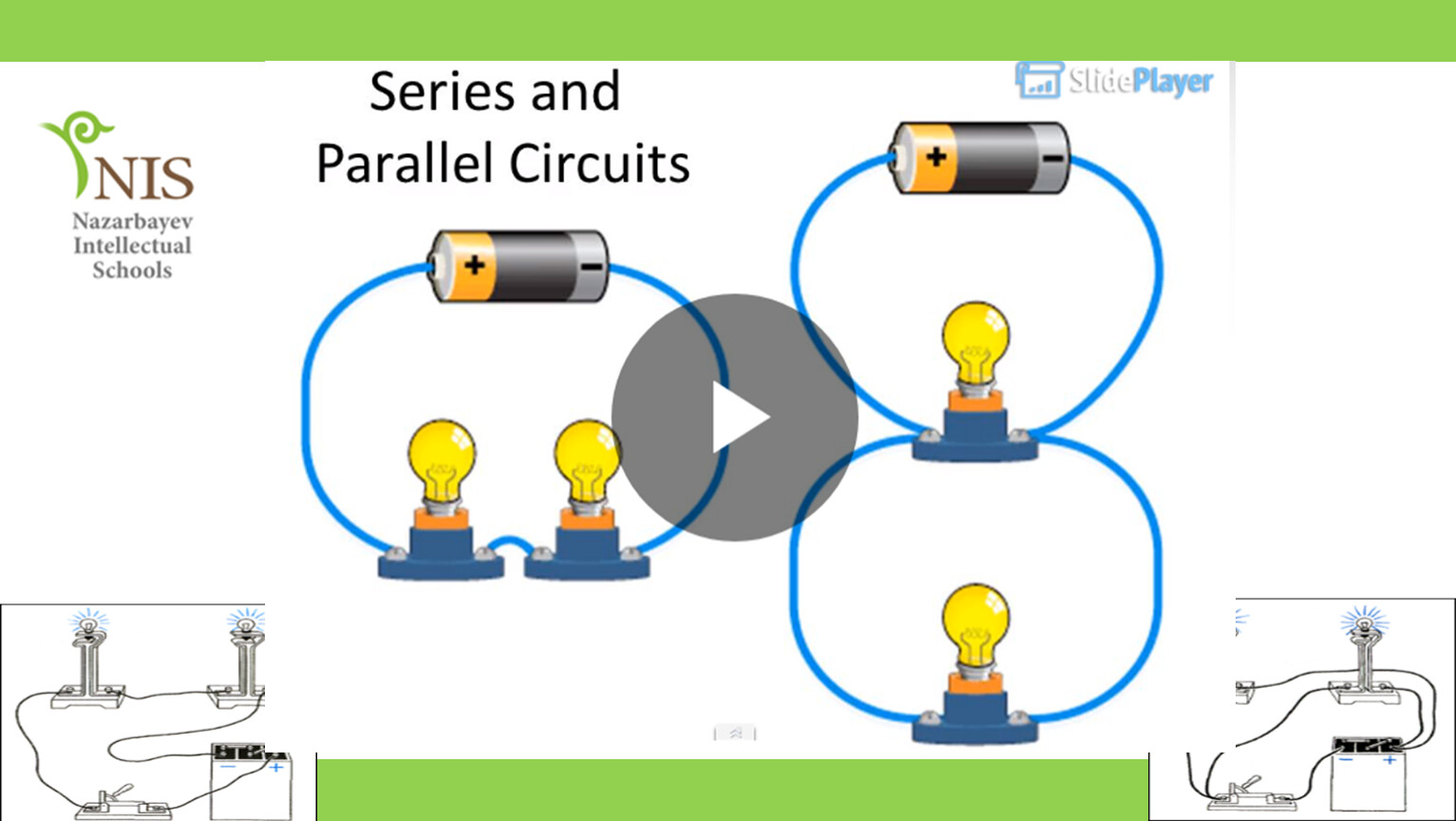

sizes | series | parallel |
current strength | ||
voltage | ||
resistance | ||

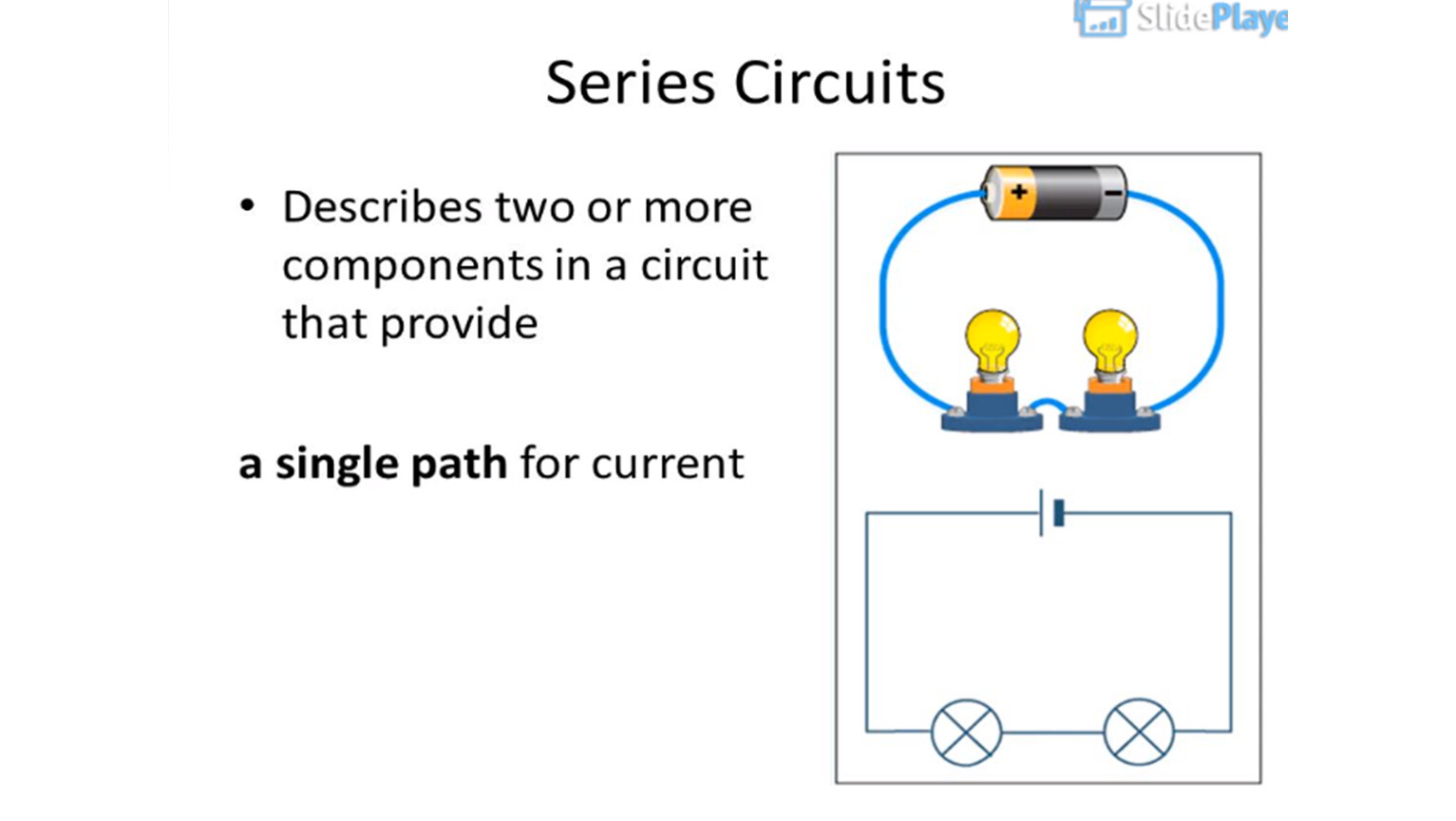

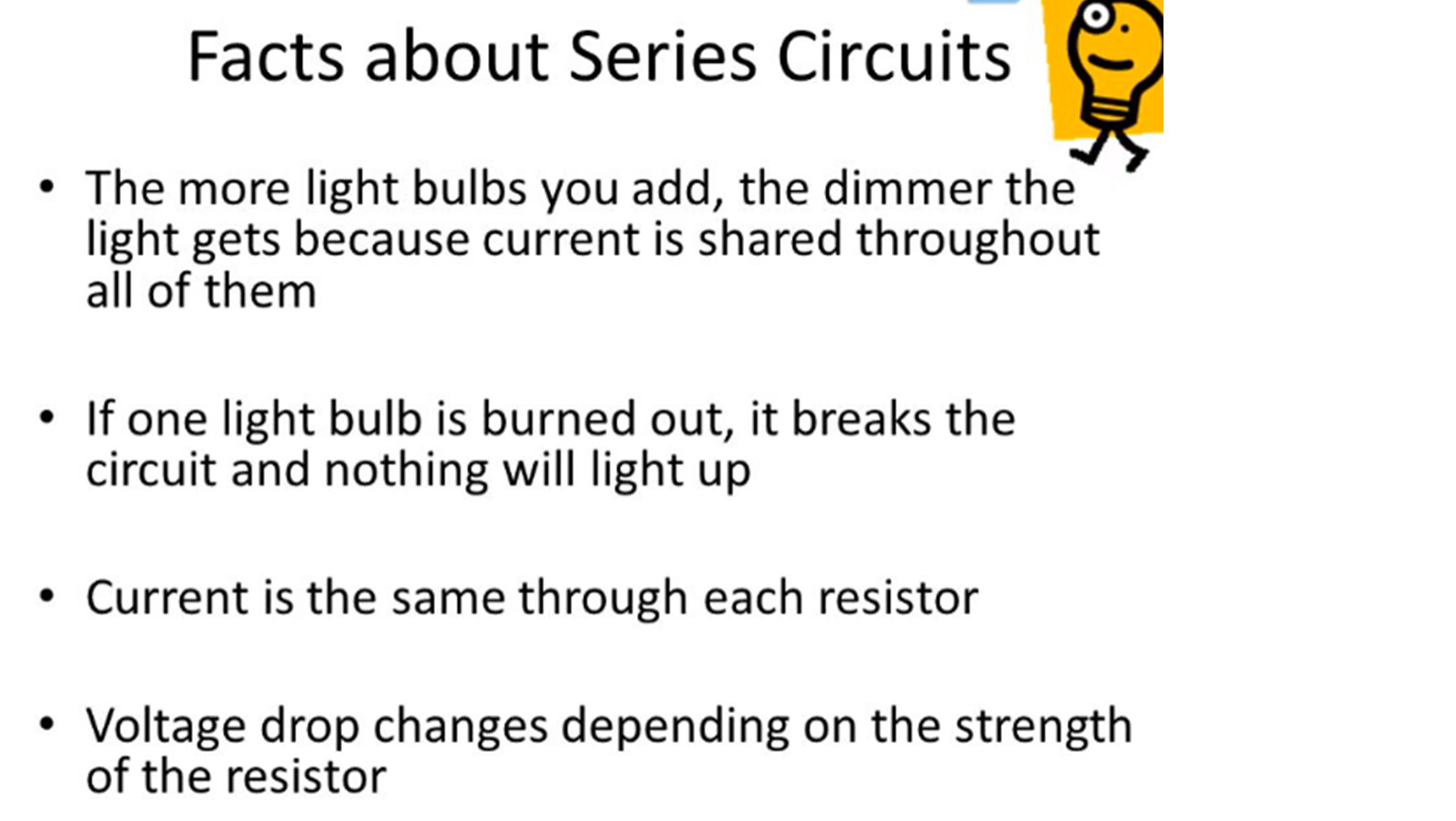

serial connection

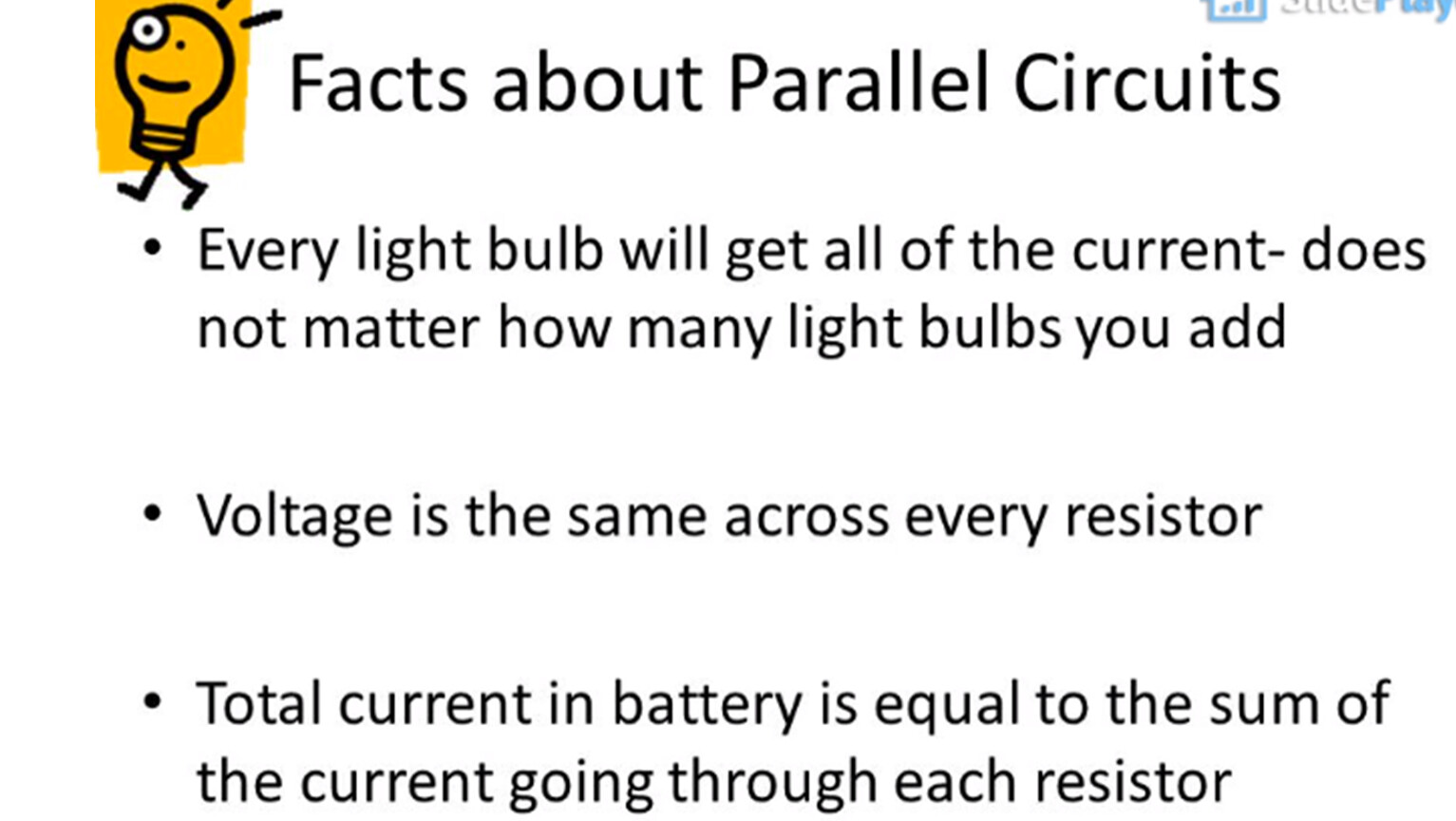

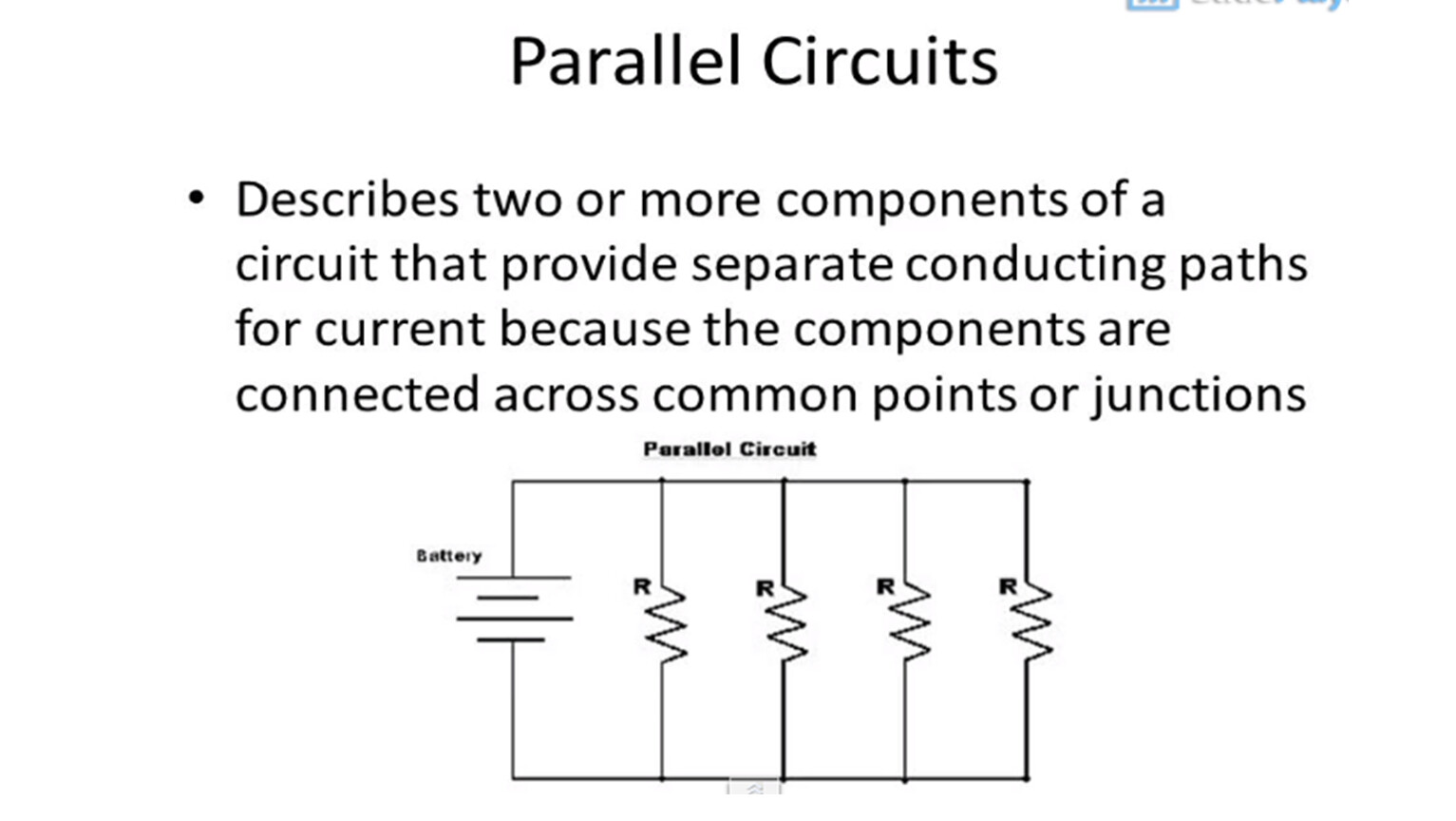

parallel connection

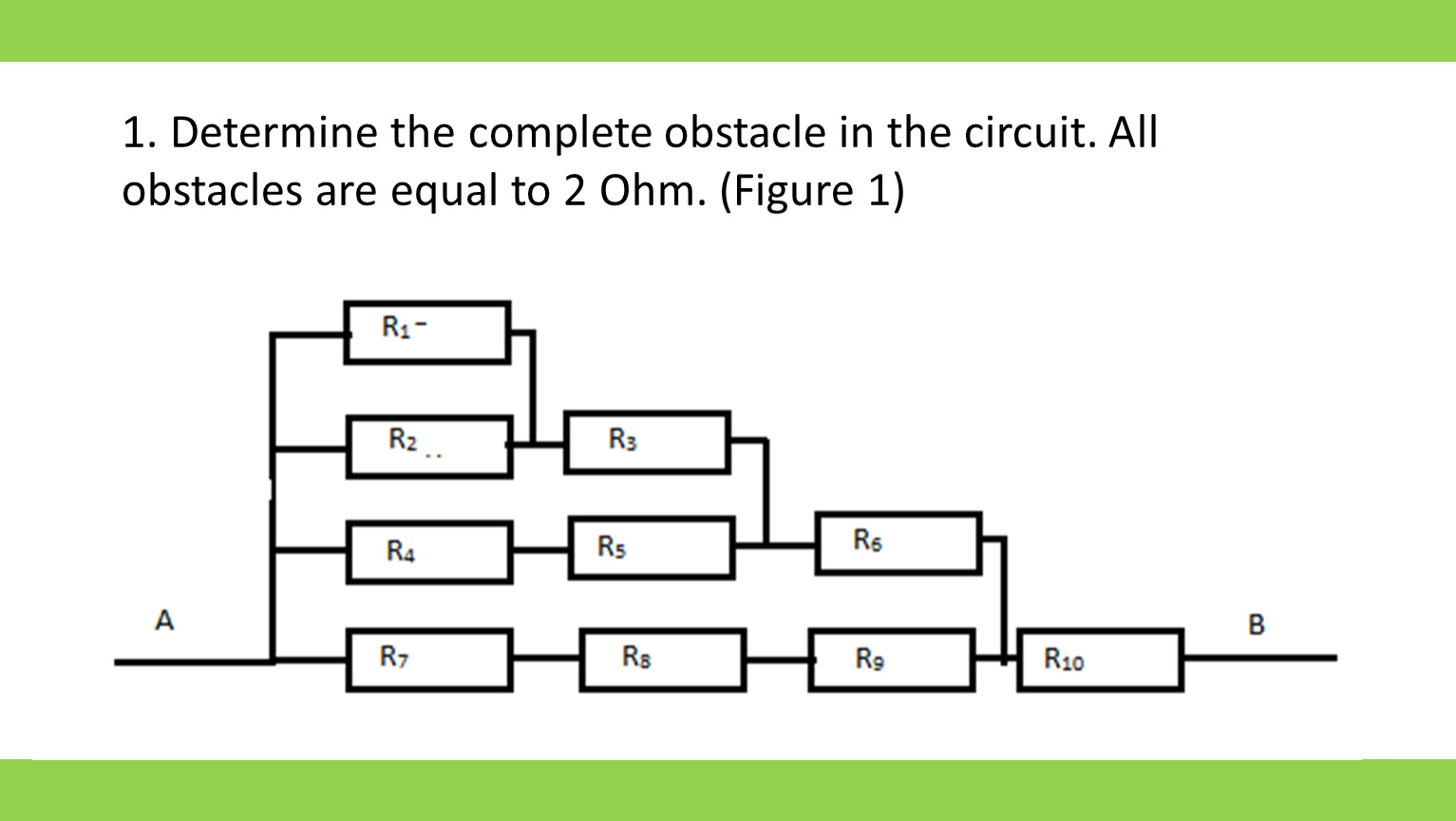

1. Determine the complete obstacle in the circuit. All obstacles are equal to 2 Ohm. (Figure 1)

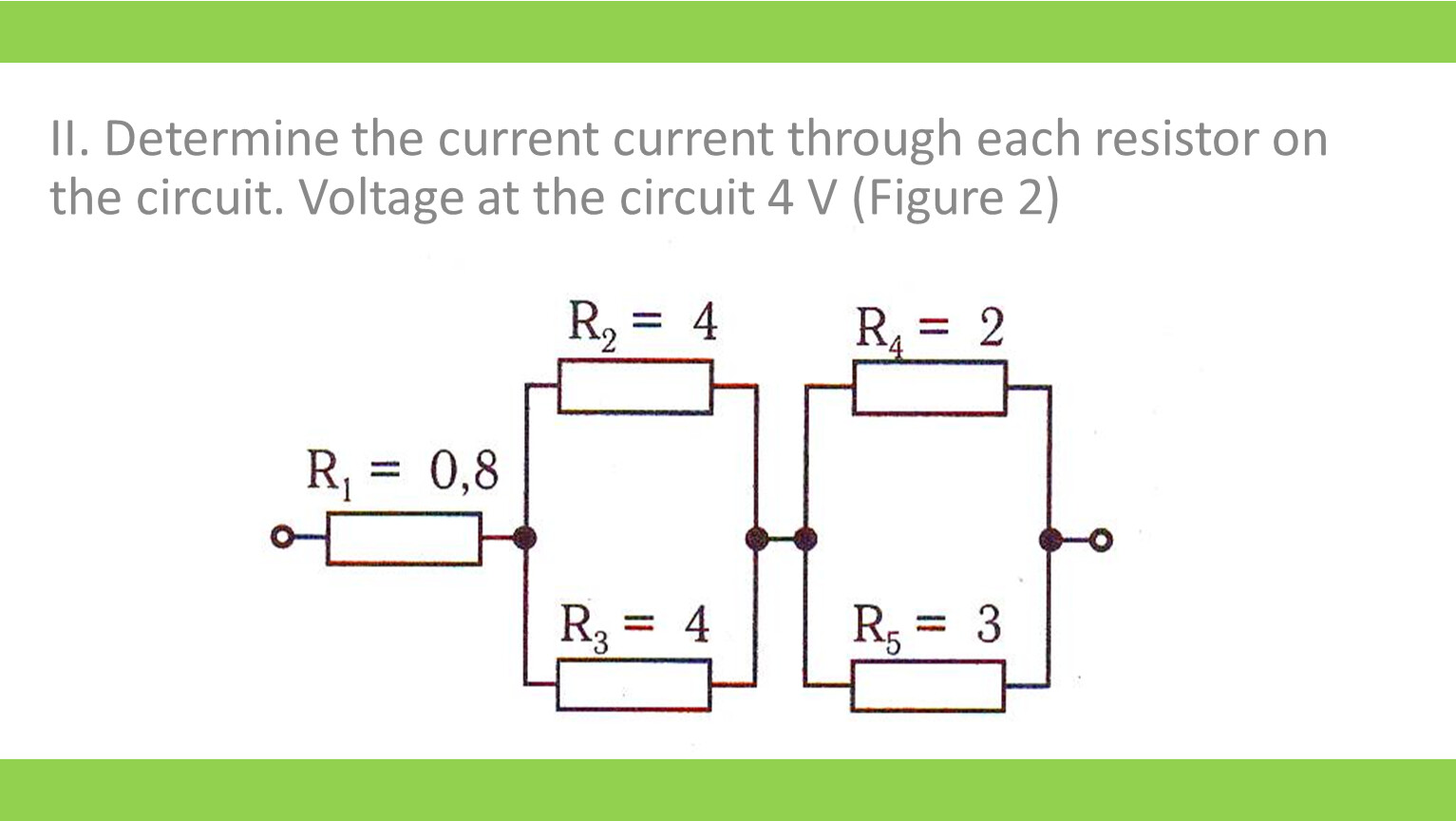

II. Determine the current current through each resistor on the circuit. Voltage at the circuit 4 V (Figure 2)

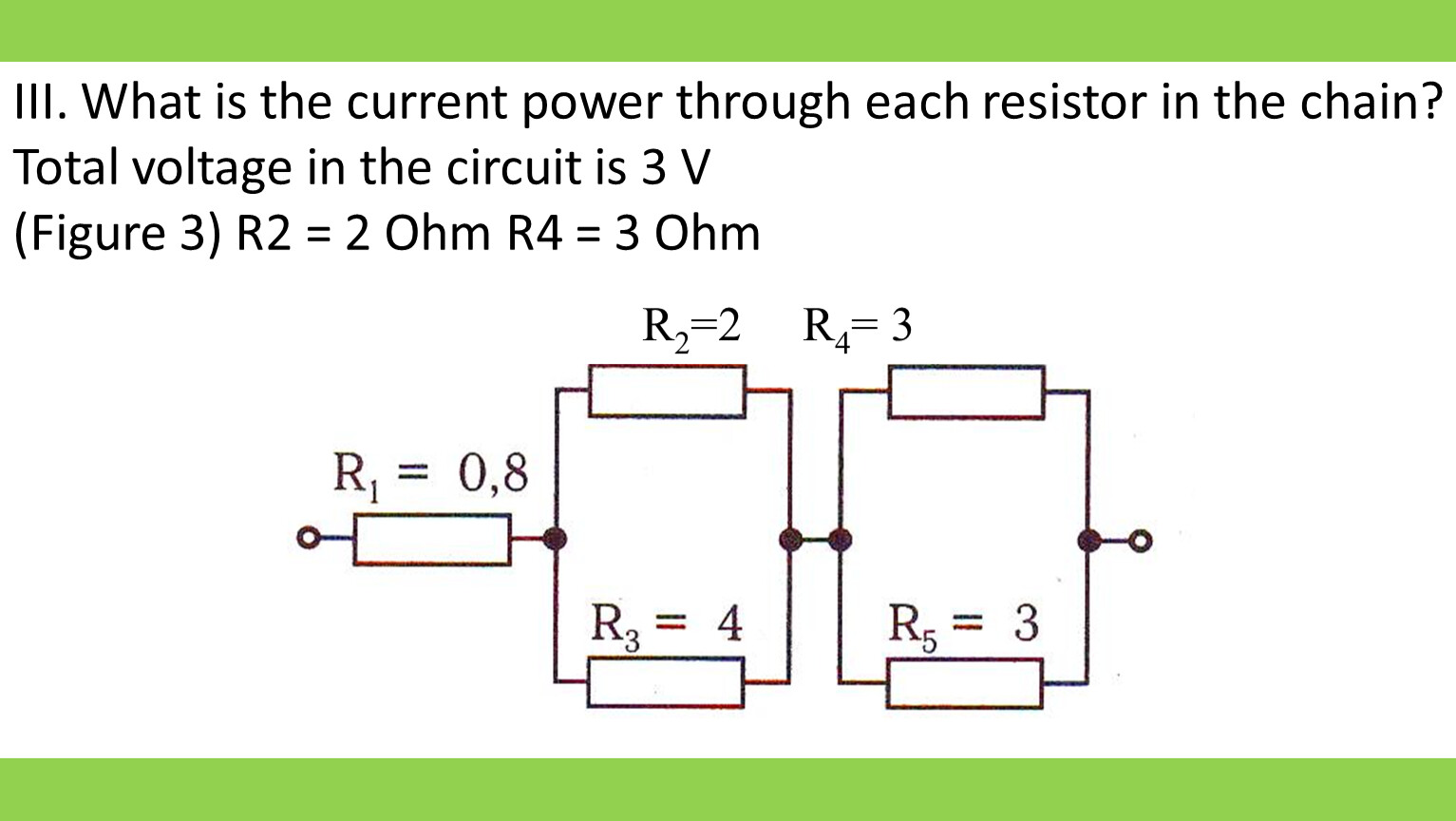

III. What is the current power through each resistor in the chain?
Total voltage in the circuit is 3 V
(Figure 3) R2 = 2 Ohm R4 = 3 Ohm
R2=2 R4= 3

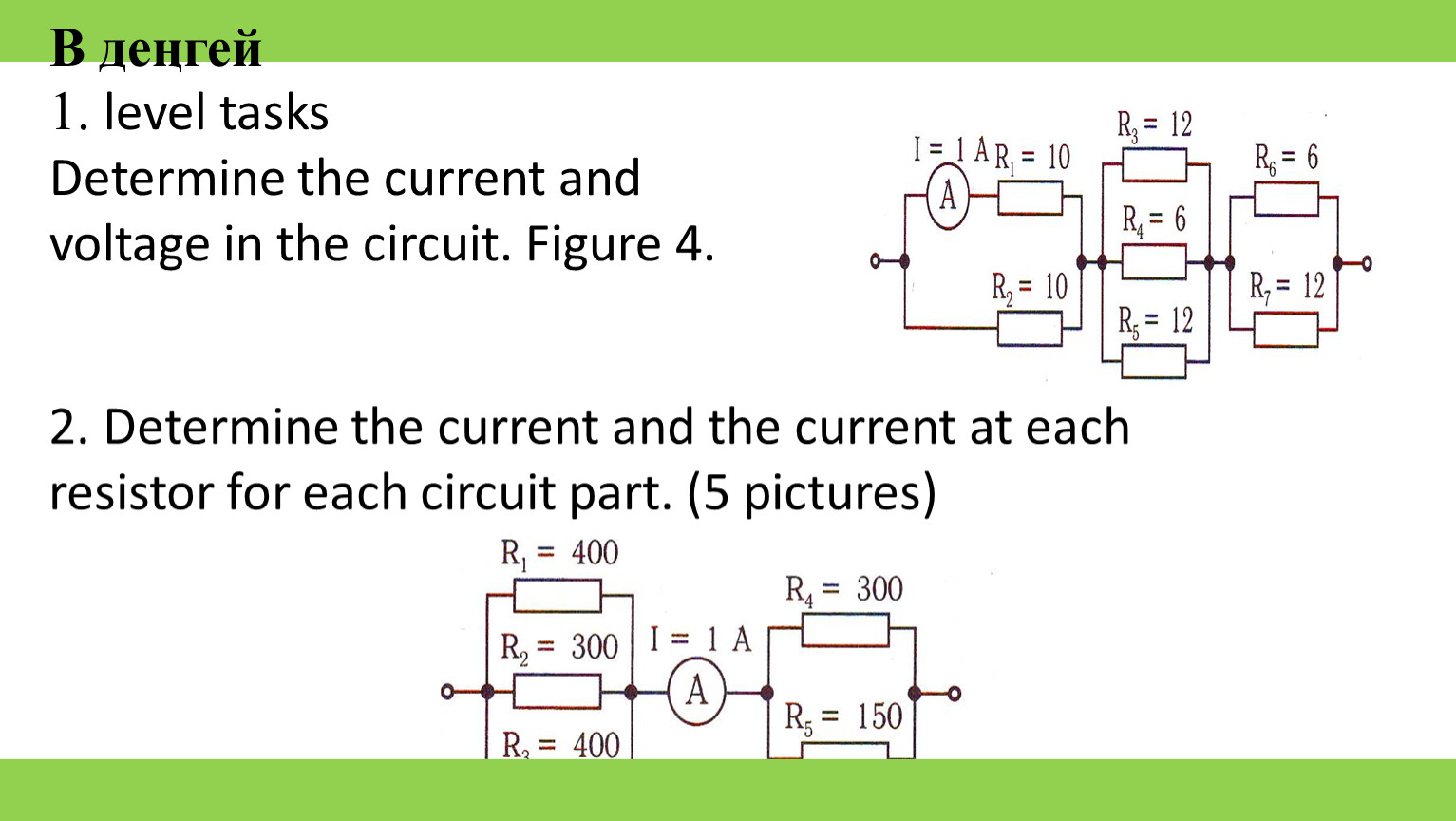

2. Determine the current and the current at each
resistor for each circuit part. (5 pictures)
В деңгей
By the end of the lesson the pupils will reflect:
- "What I learned, what I learned
- I did not fully understand what happened
- We need to keep working
