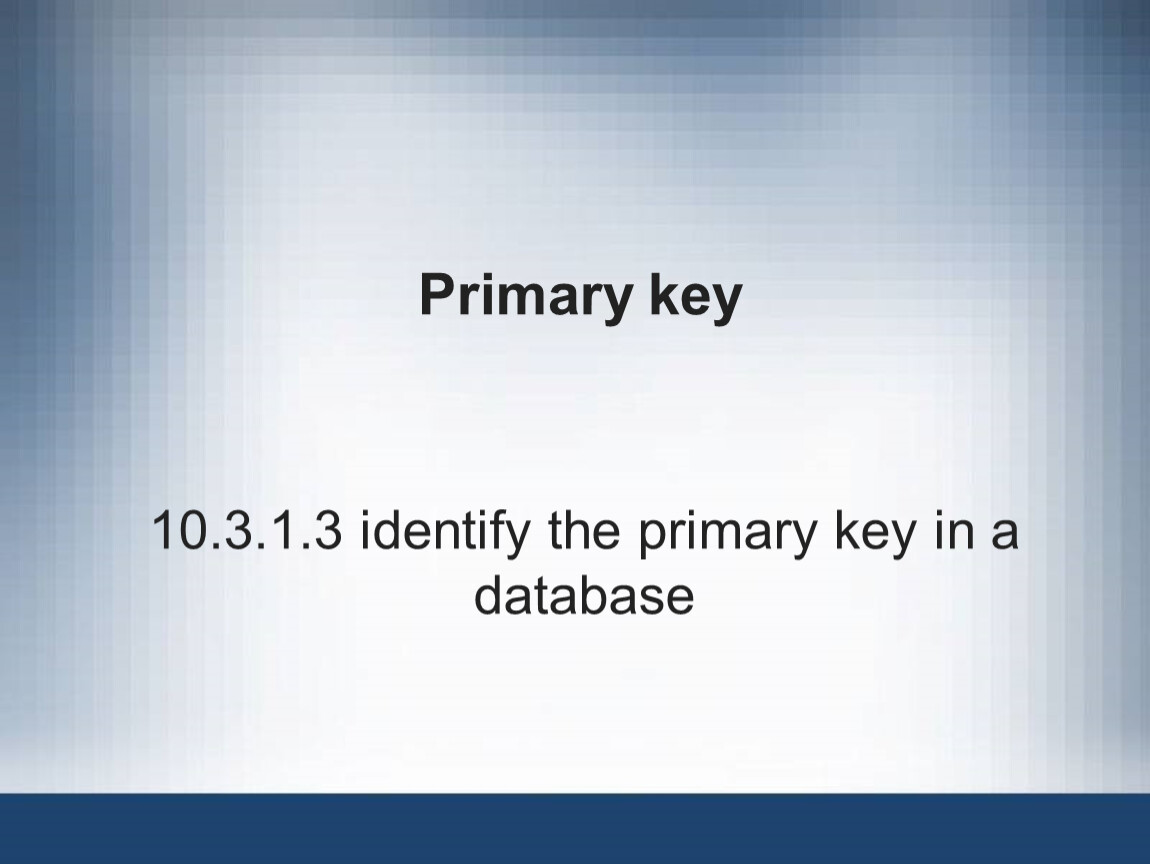

10.3.1.3 identify the primary key in a database

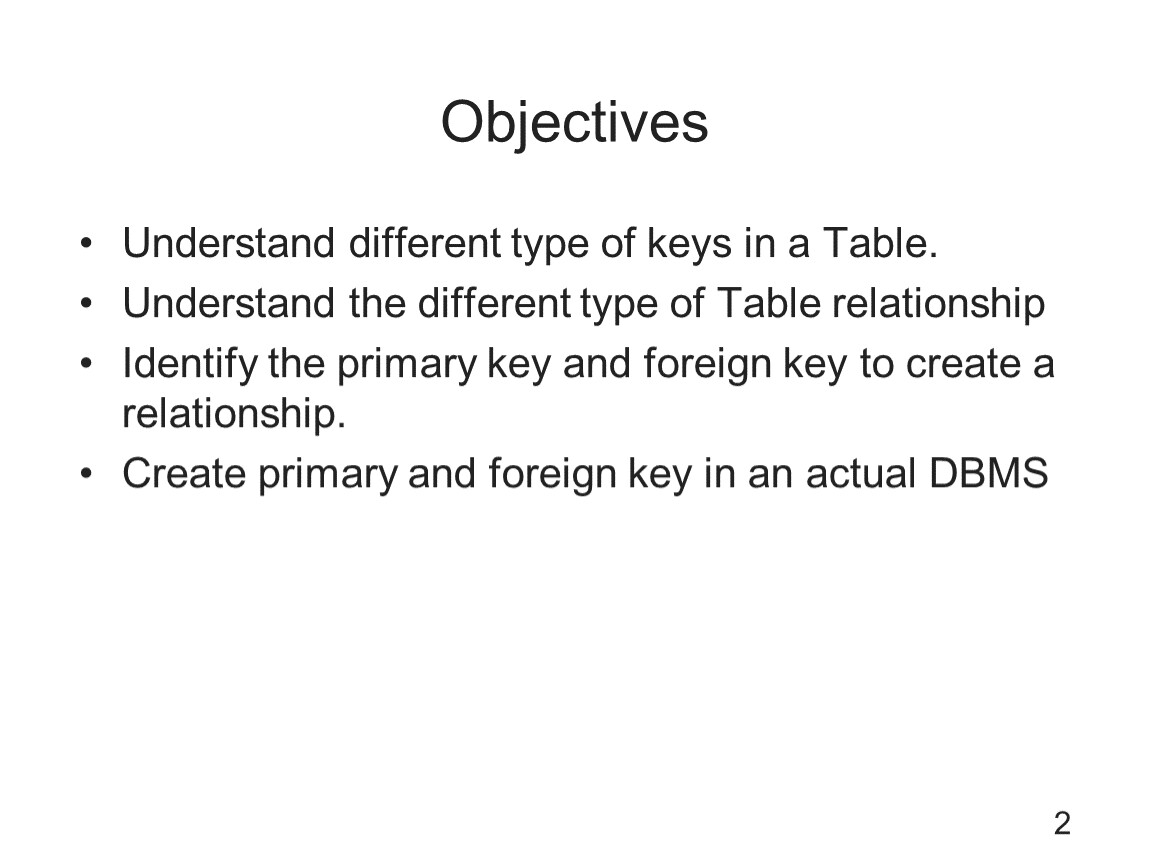

Objectives

Understand different type of keys in a Table.
Understand the different type of Table relationship
Identify the primary key and foreign key to create a relationship.
Create primary and foreign key in an actual DBMS

2

Table Relationship

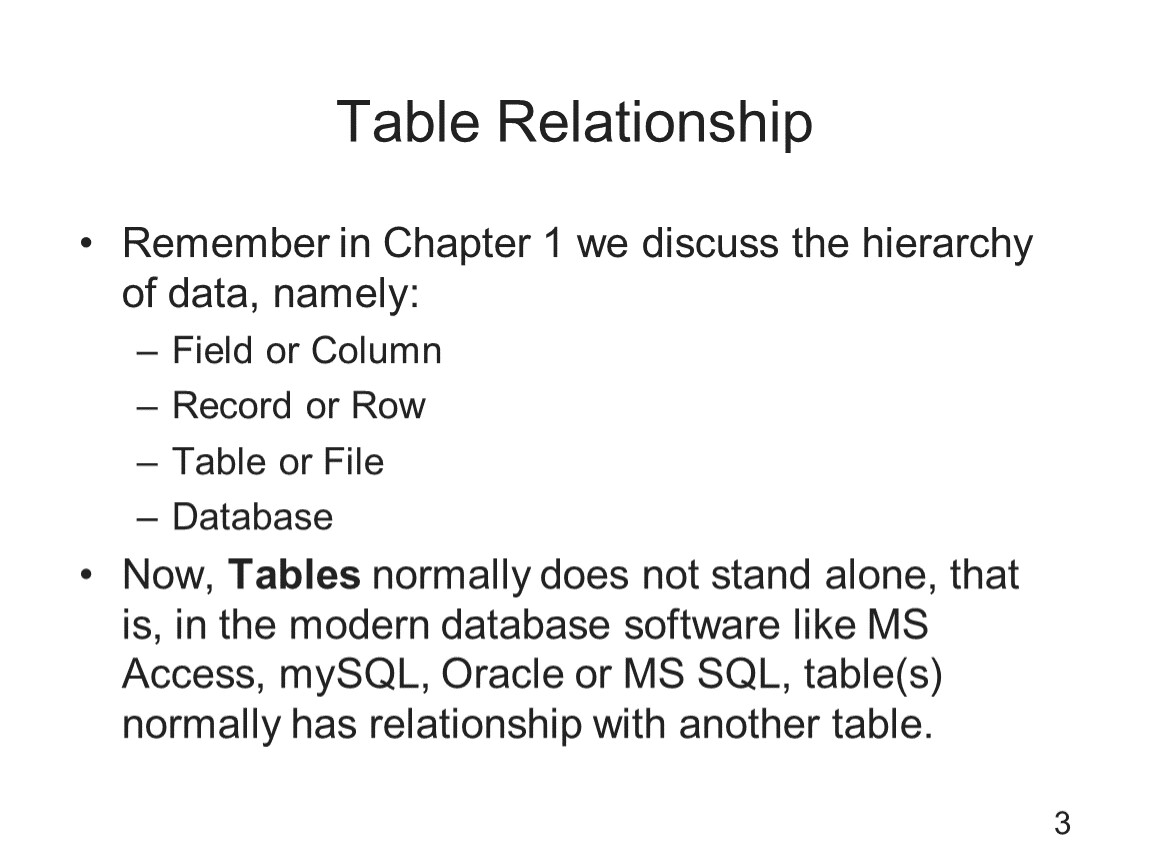

Remember in Chapter 1 we discuss the hierarchy of data, namely:
Field or Column
Record or Row
Table or File
Database
Now, Tables normally does not stand alone, that is, in the modern database software like MS Access, mySQL, Oracle or MS SQL, table(s) normally has relationship with another table.

3

Three Types of Relationship

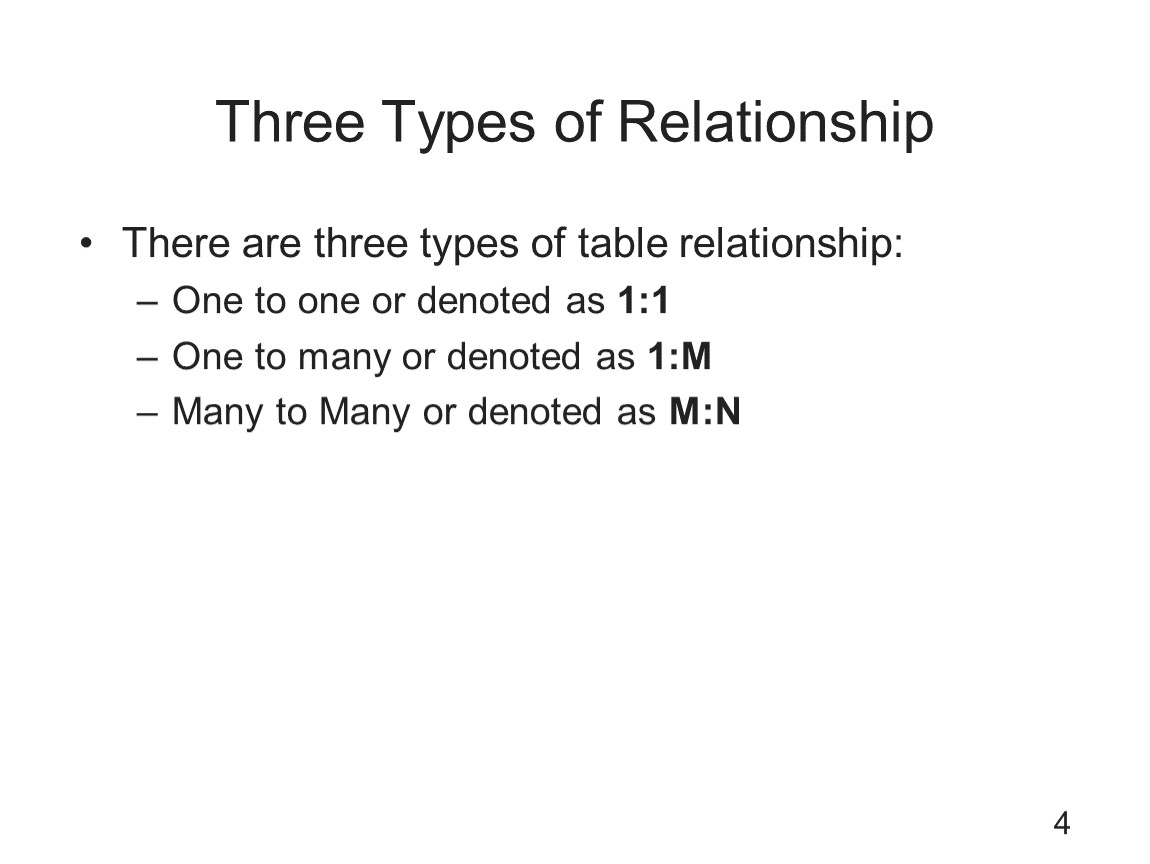

There are three types of table relationship:
One to one or denoted as 1:1
One to many or denoted as 1:M
Many to Many or denoted as M:N

4

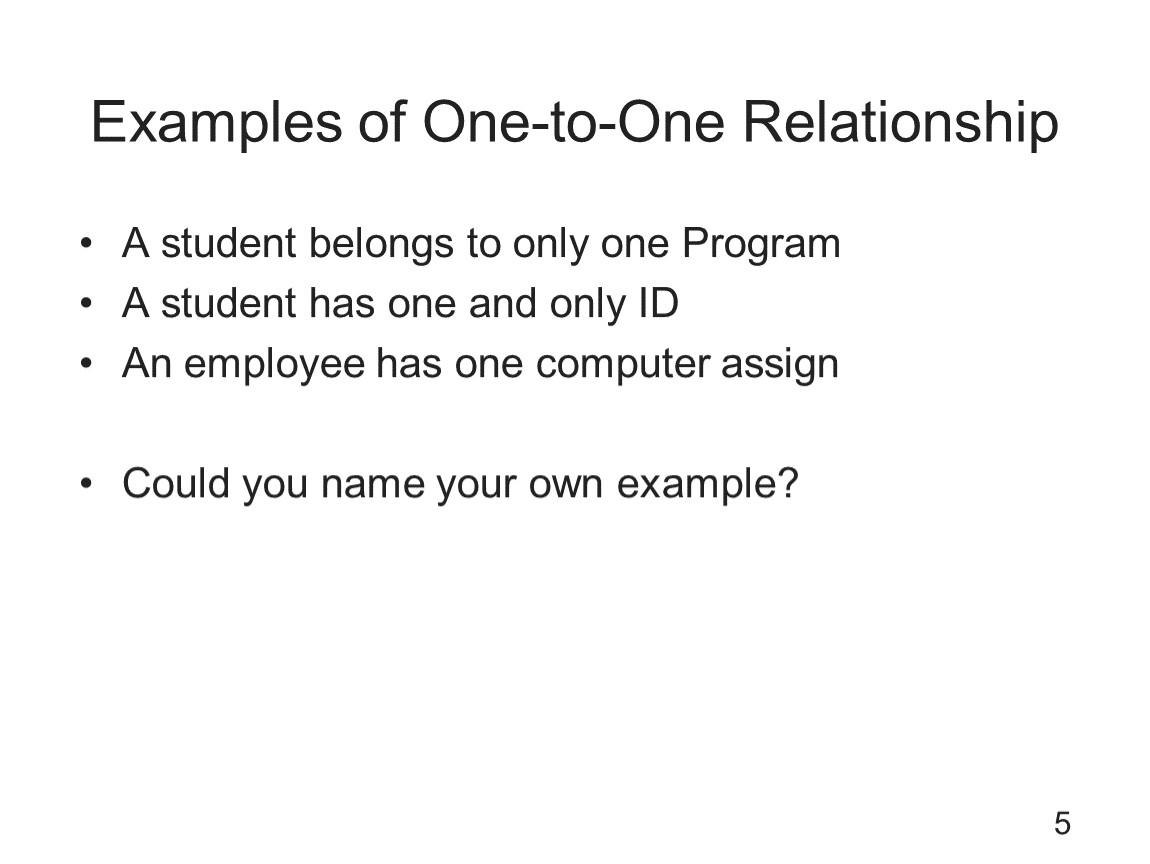

Examples of One-to-One Relationship

A student belongs to only one Program
A student has one and only ID
An employee has one computer assign

Could you name your own example?

5

Examples of One-to-Many Relationship

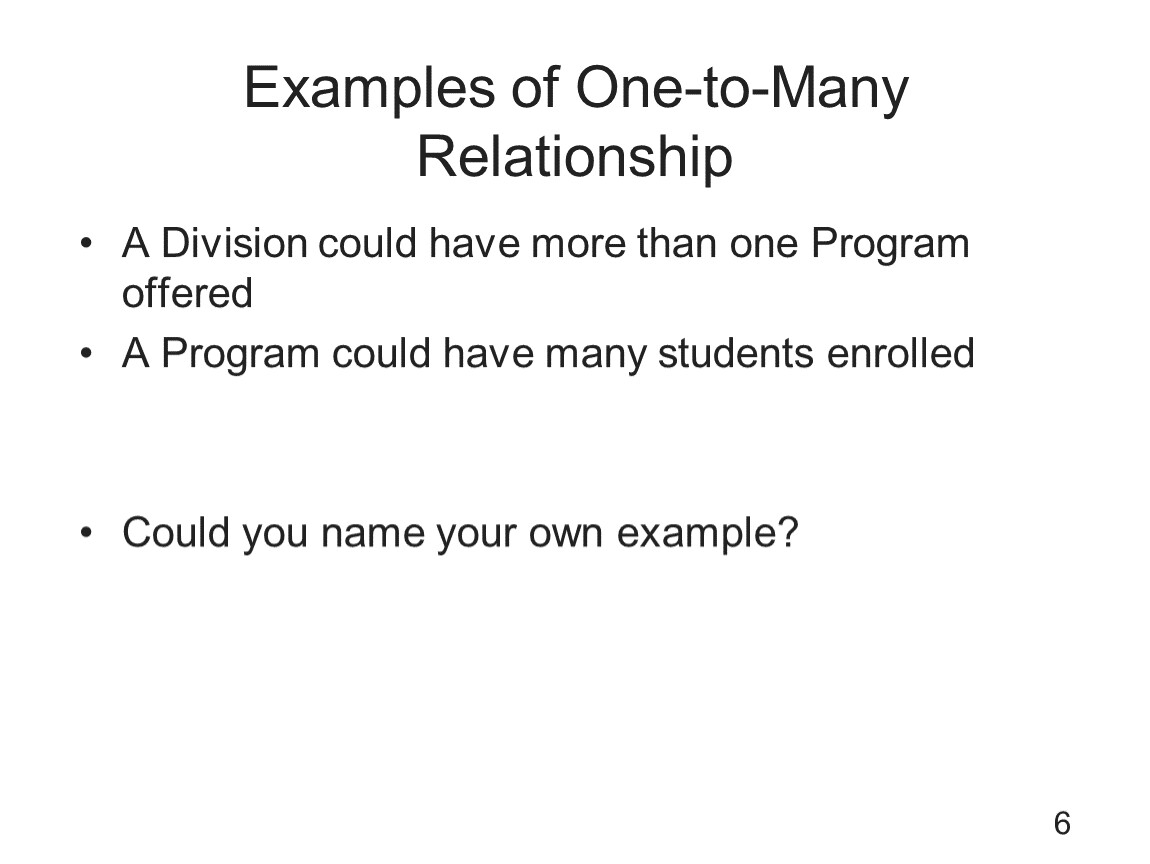

A Division could have more than one Program offered
A Program could have many students enrolled


Could you name your own example?

6

Examples of Many-to-Many Relationship

A student could take many course and a course could have many students
An author could have many books and a book could have many author
A music album could have many artists/performers and an artist/performer could have many albums

Could you name your own example?

7

Key in a table

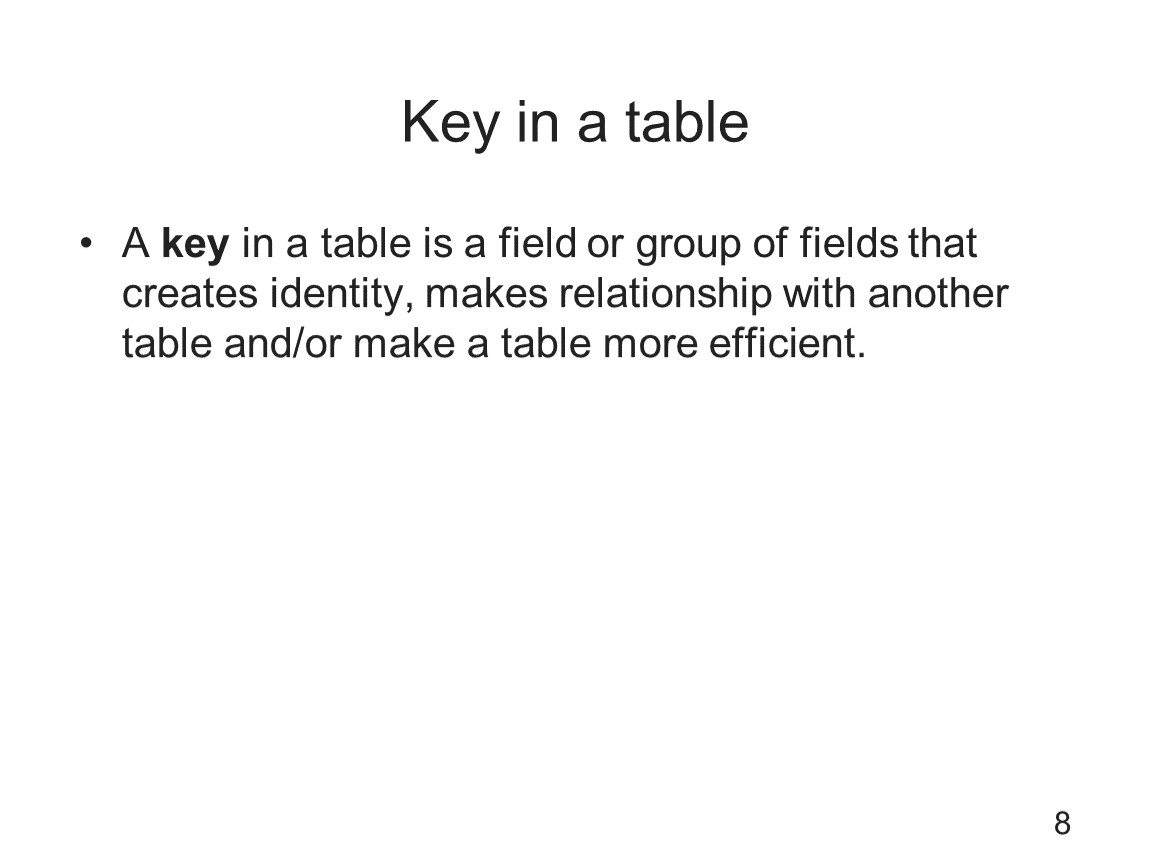

A key in a table is a field or group of fields that creates identity, makes relationship with another table and/or make a table more efficient.

8

Primary Key & Foreign

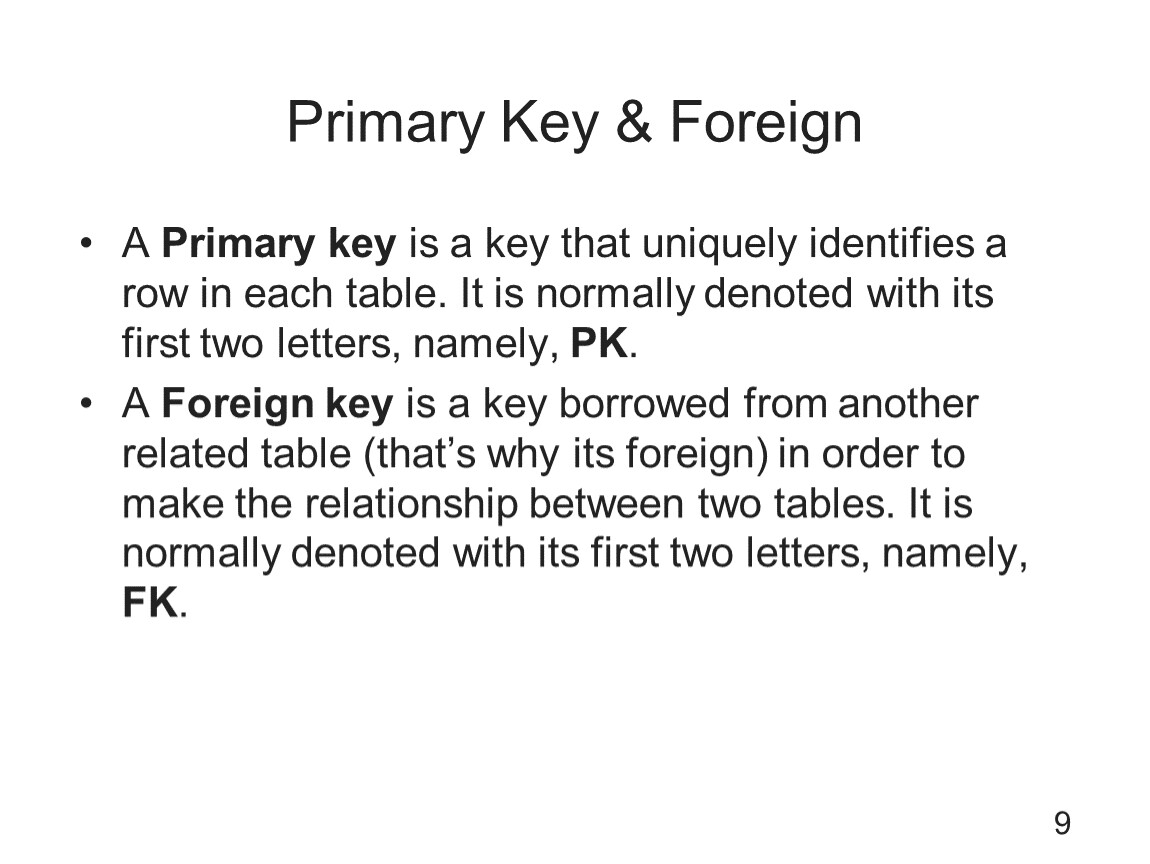

A Primary key is a key that uniquely identifies a row in each table. It is normally denoted with its first two letters, namely, PK.
A Foreign key is a key borrowed from another related table (that’s why its foreign) in order to make the relationship between two tables. It is normally denoted with its first two letters, namely, FK.

9

Examples from Premier Database – Primary Key

10

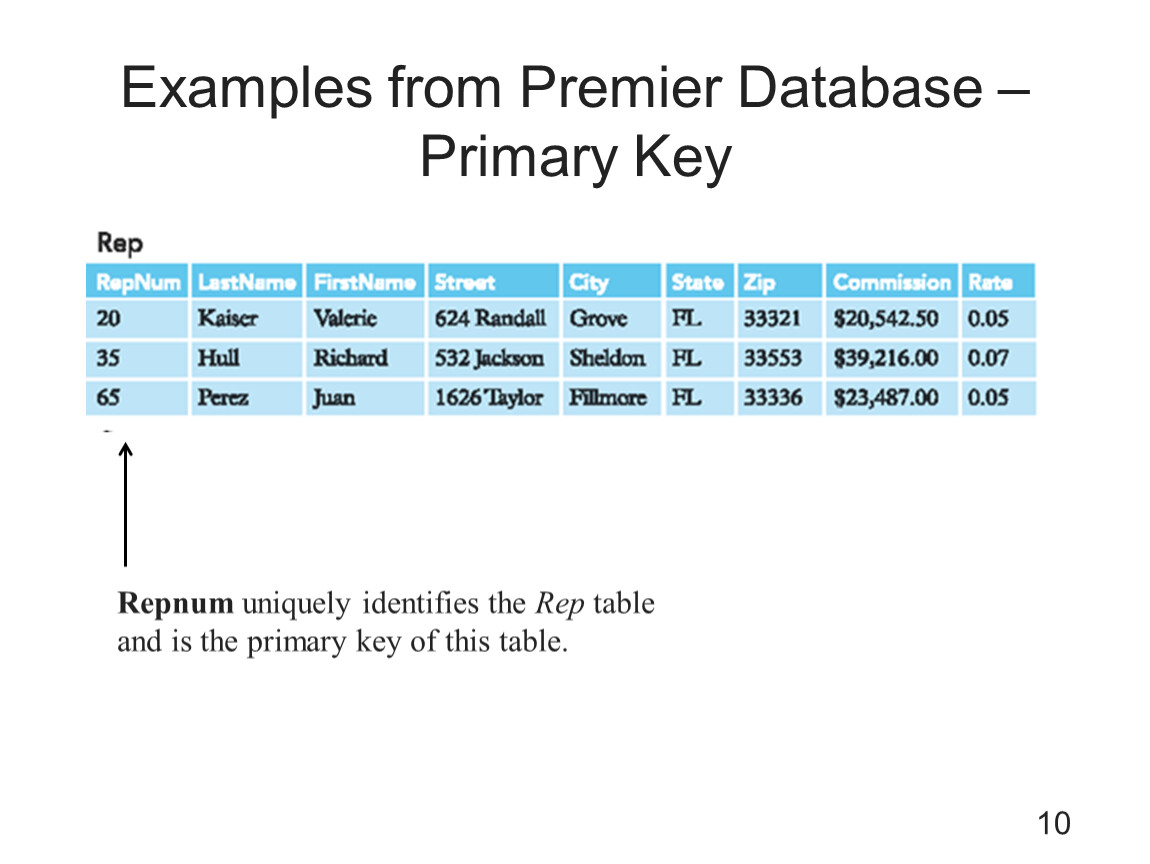

Repnum uniquely identifies the Rep table
and is the primary key of this table.

Examples from Premier Database – Primary Key

11

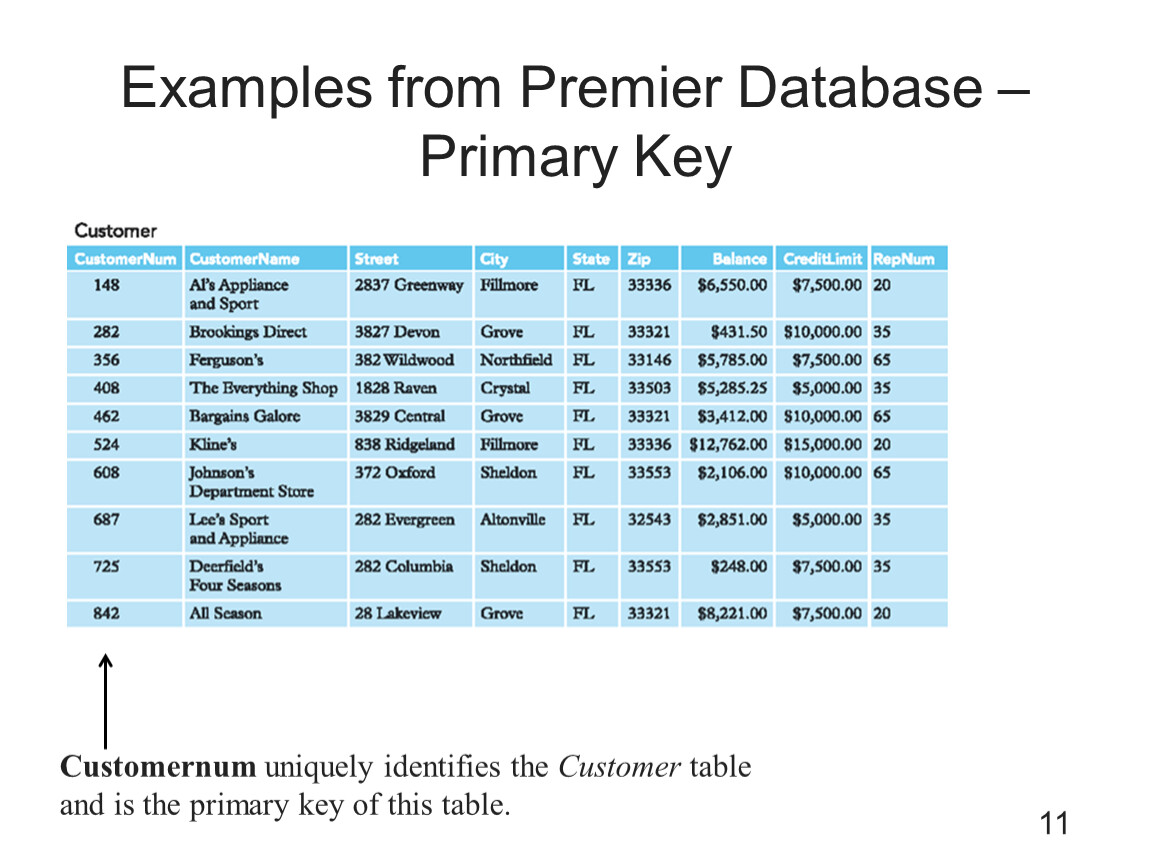

Customernum uniquely identifies the Customer table
and is the primary key of this table.

Examples from Premier Database – Primary Key

12

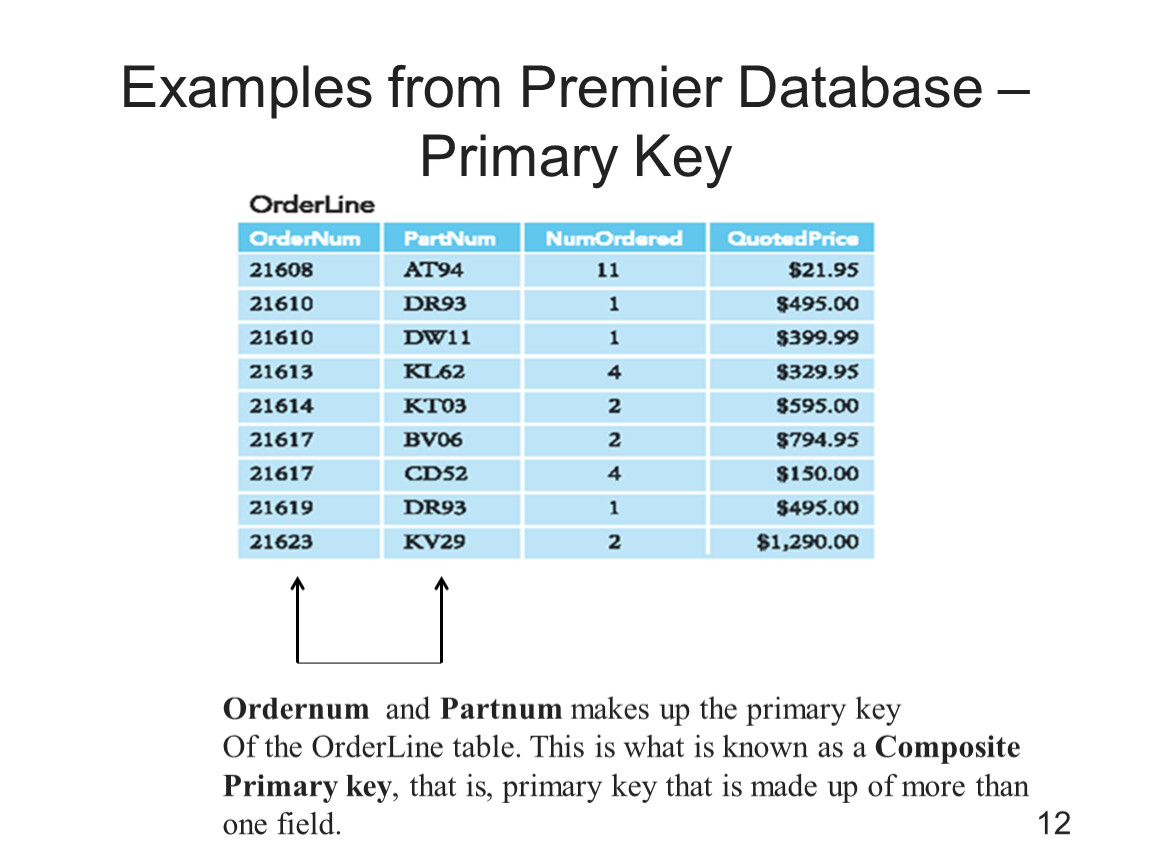

Ordernum and Partnum makes up the primary key
Of the OrderLine table. This is what is known as a Composite
Primary key, that is, primary key that is made up of more than
one field.

Examples from Premier Database

Could you identify any more primary keys from Premier Database?

13

Examples from Premier Database – Foreign Key

14

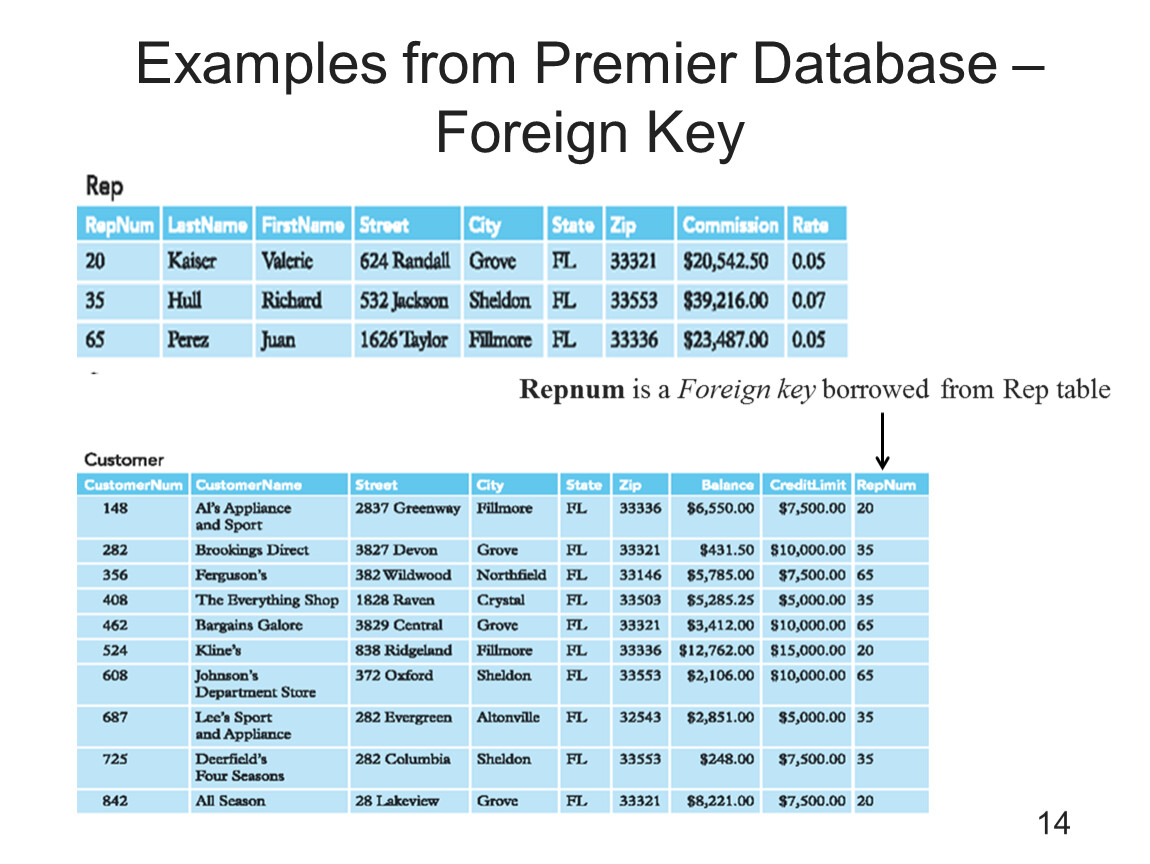

Repnum is a Foreign key borrowed from Rep table

Examples from Premier Database

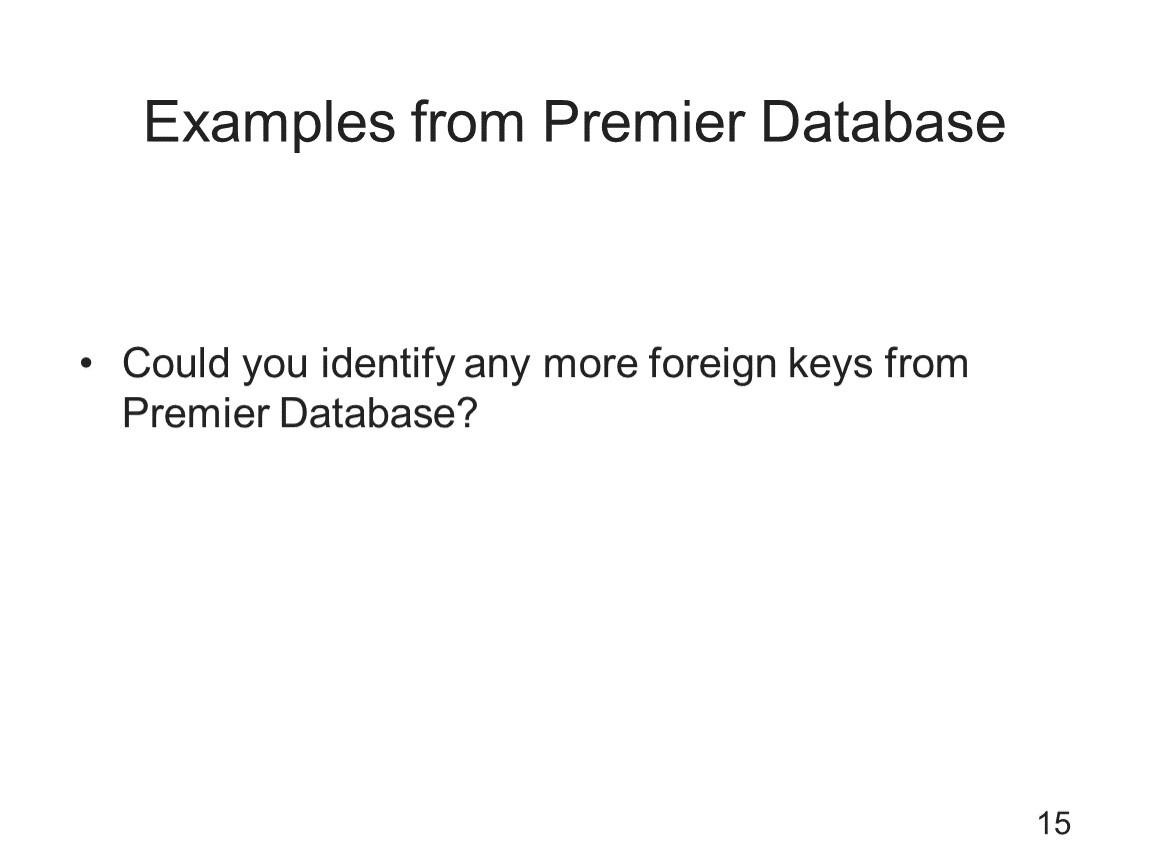

Could you identify any more foreign keys from Premier Database?

15

Notation example

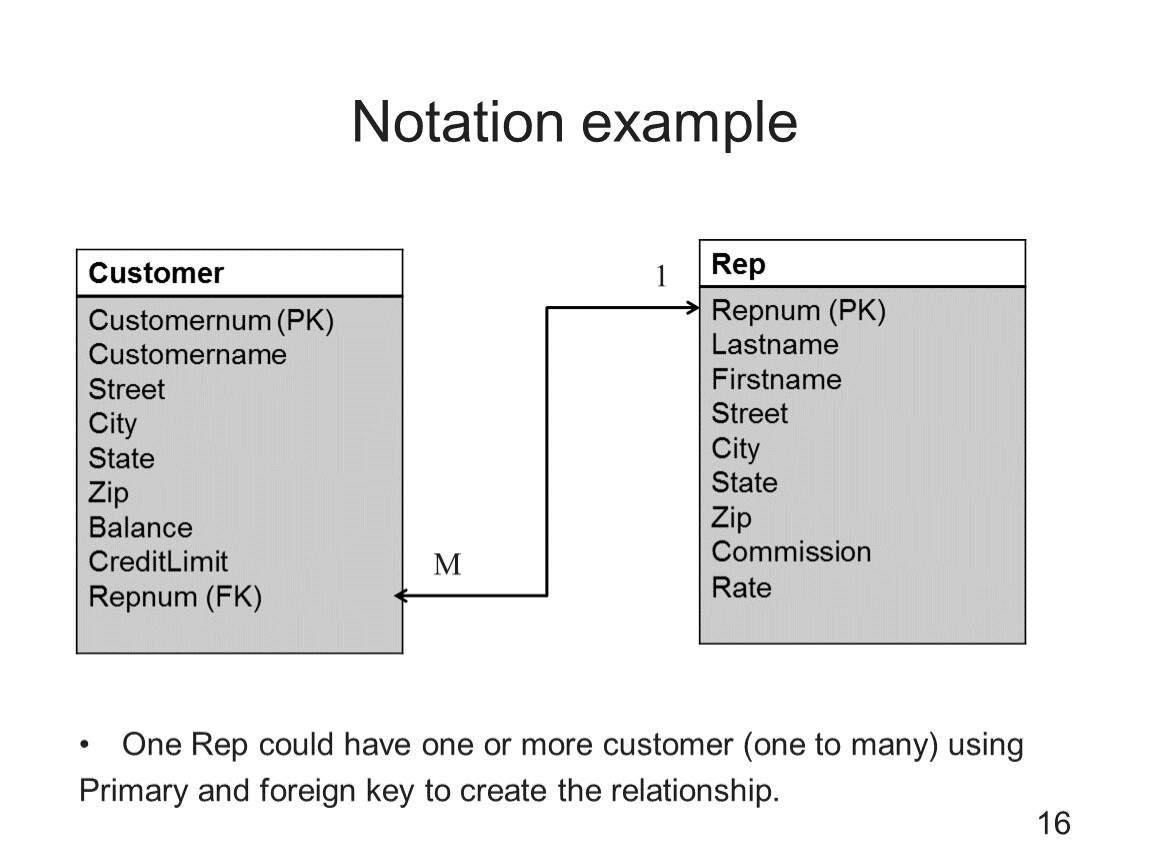

One Rep could have one or more customer (one to many) using
Primary and foreign key to create the relationship.

16

1

M

Notation example

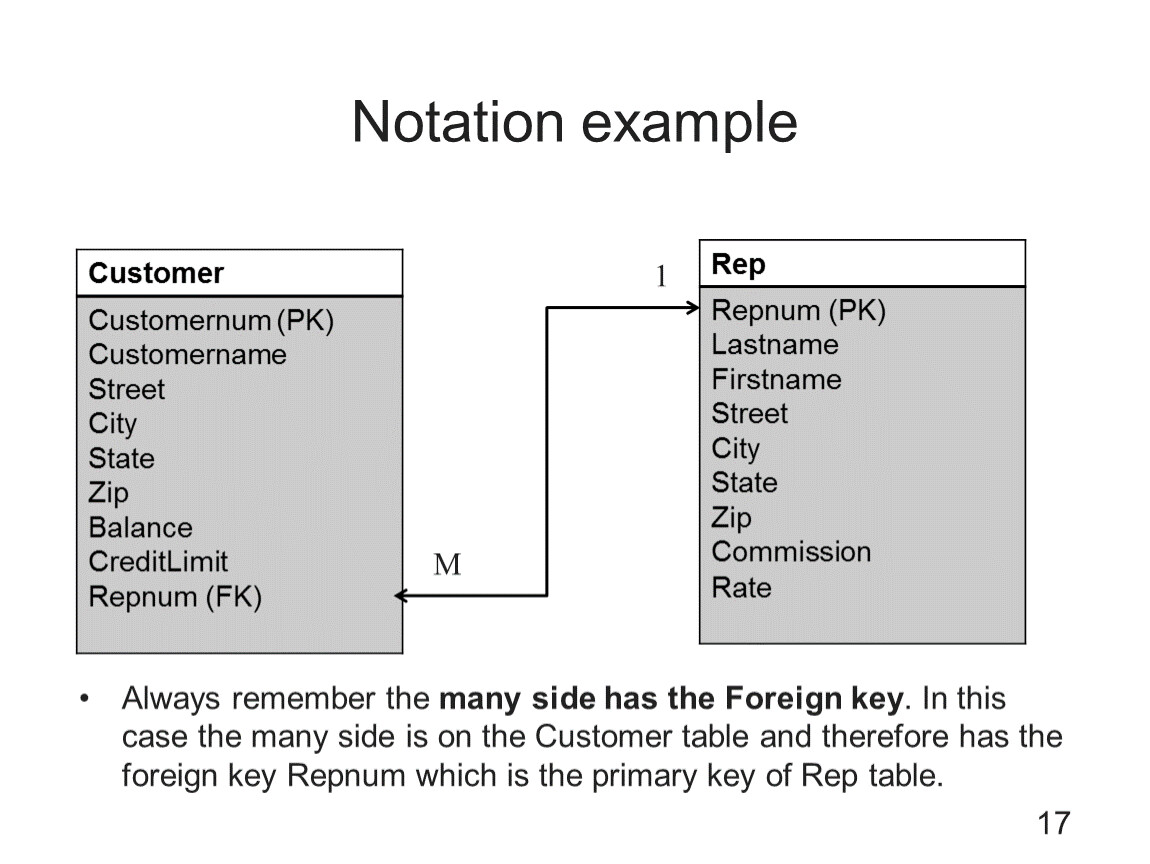

Always remember the many side has the Foreign key. In this case the many side is on the Customer table and therefore has the foreign key Repnum which is the primary key of Rep table.

17

1

M

Examples from Premier Database

Could you identify the different relationship among tables in Premier Database because of the Primary and Foreign keys?

18

Referential Integrity

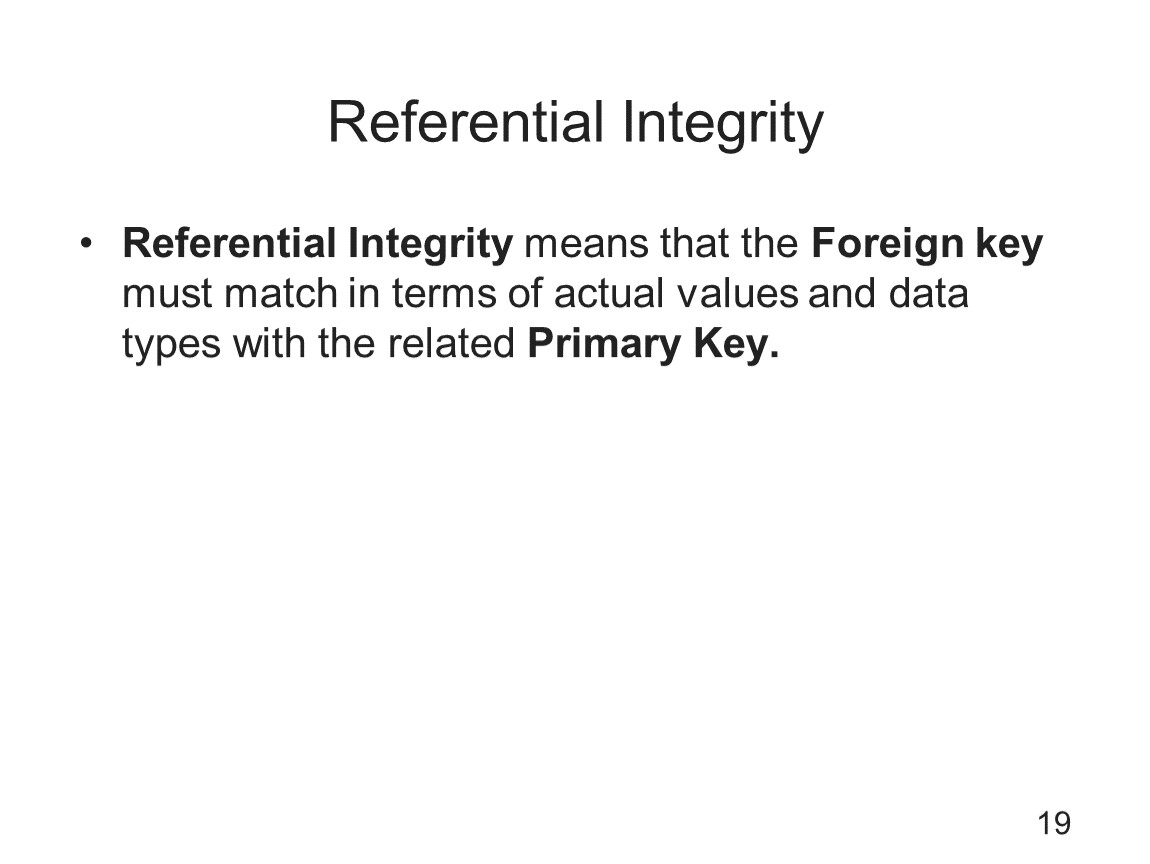

Referential Integrity means that the Foreign key must match in terms of actual values and data types with the related Primary Key.

19

Referential Integrity

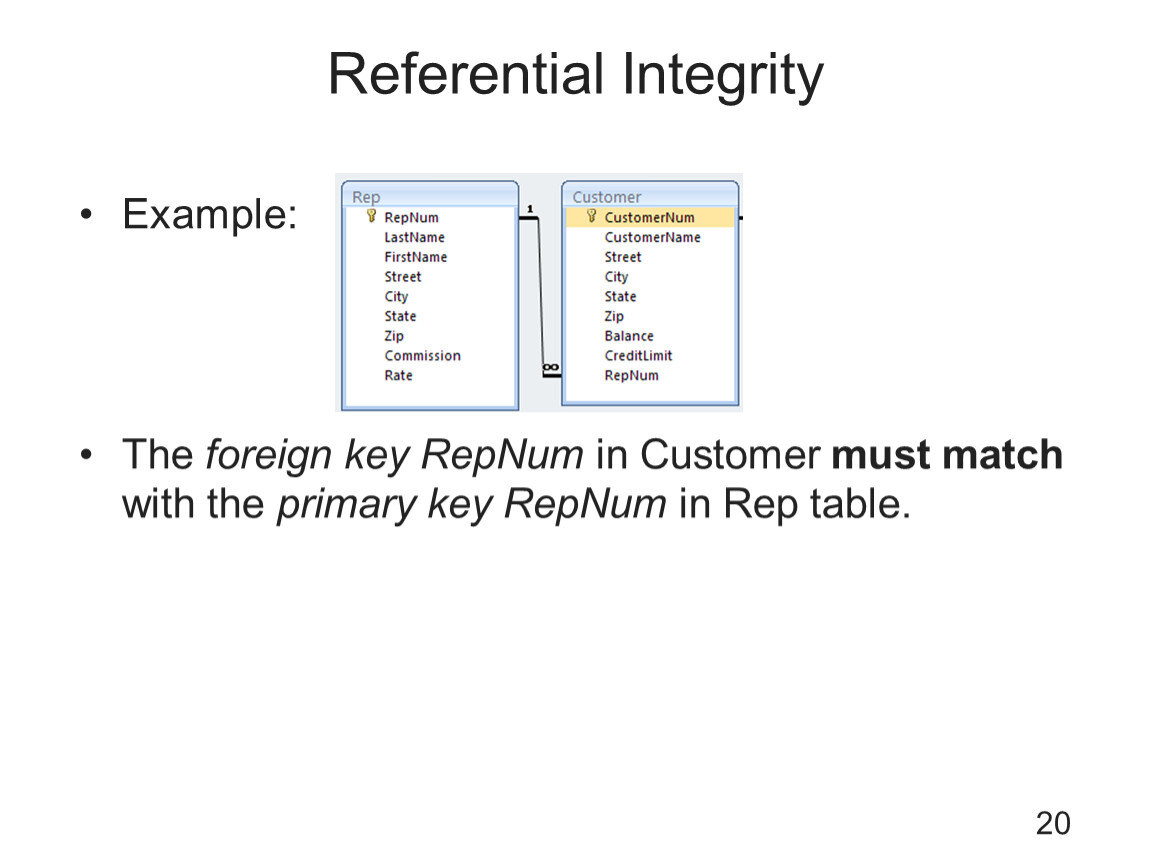

Example:



The foreign key RepNum in Customer must match with the primary key RepNum in Rep table.

20

Referential Integrity

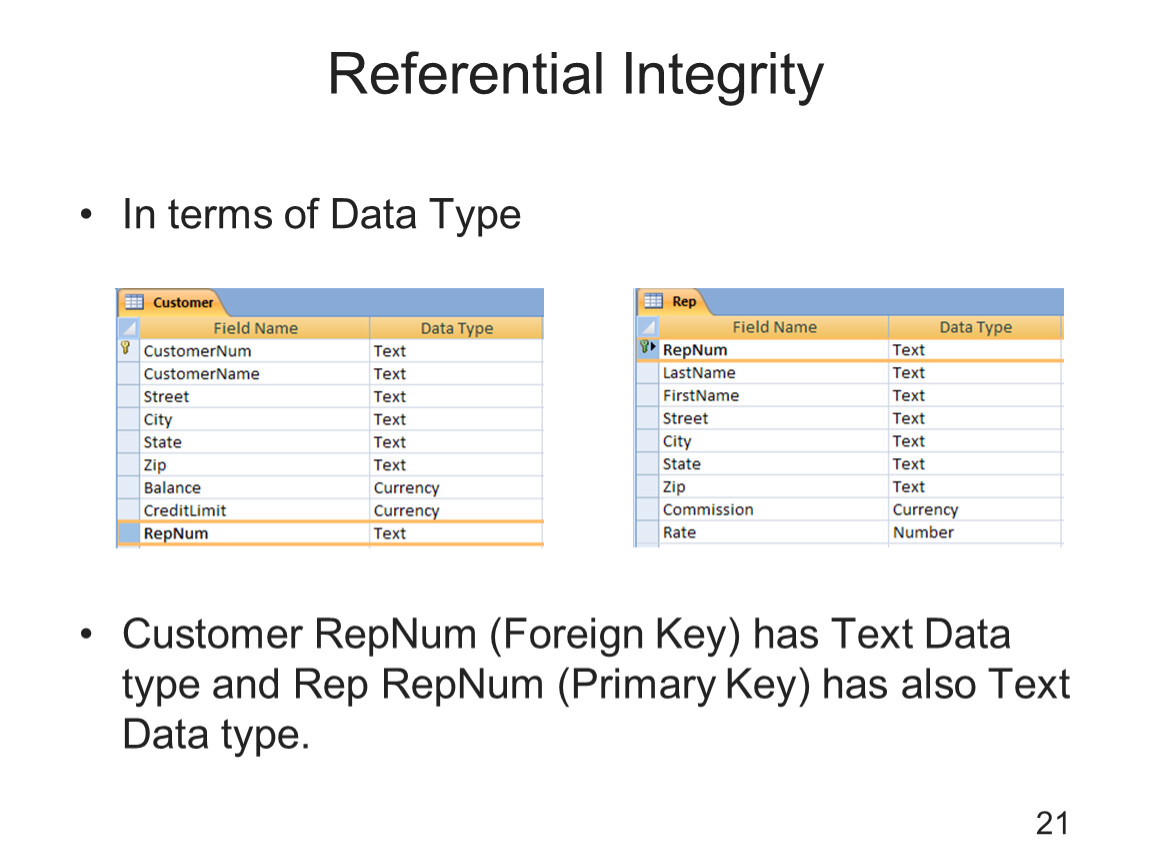

In terms of Data Type






Customer RepNum (Foreign Key) has Text Data type and Rep RepNum (Primary Key) has also Text Data type.

21

22

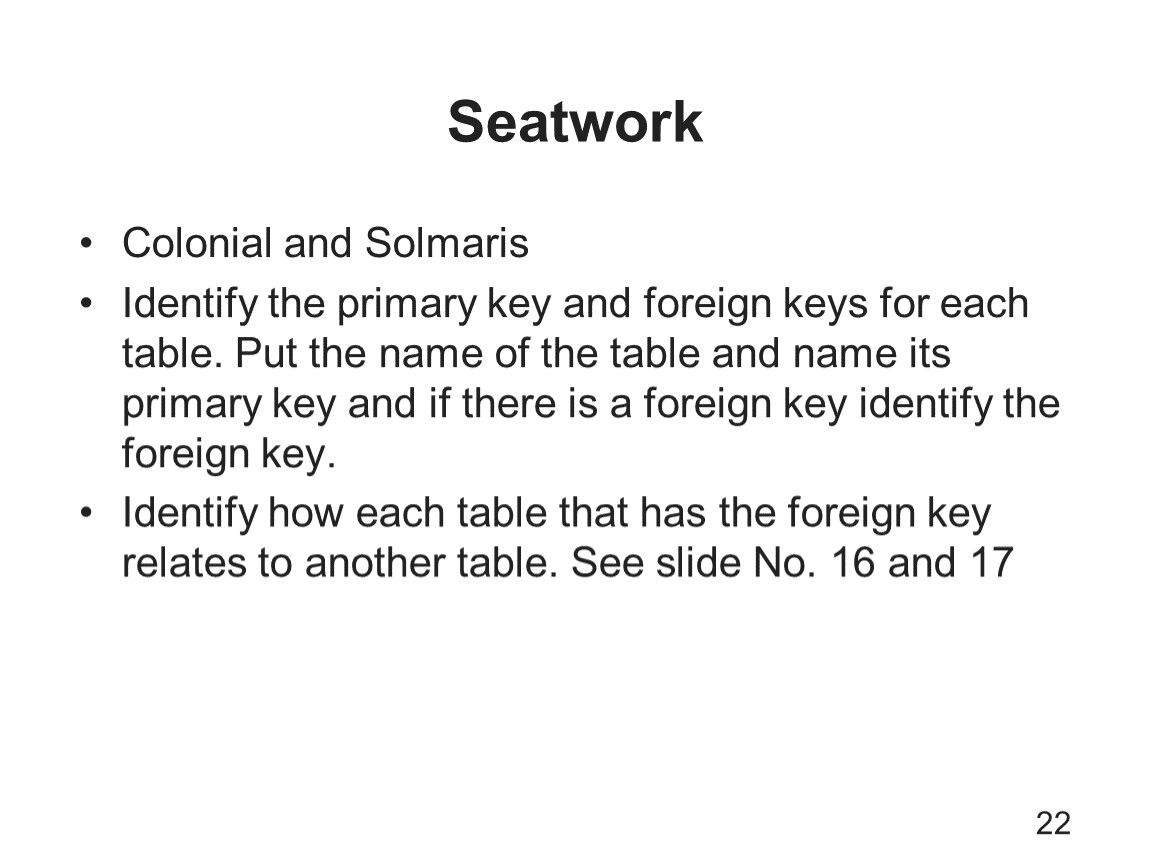

Colonial and Solmaris
Identify the primary key and foreign keys for each table. Put the name of the table and name its primary key and if there is a foreign key identify the foreign key.
Identify how each table that has the foreign key relates to another table. See slide No. 16 and 17

Demo in creating Primary and Foreign Key in MS Access

23

Referential Integrity

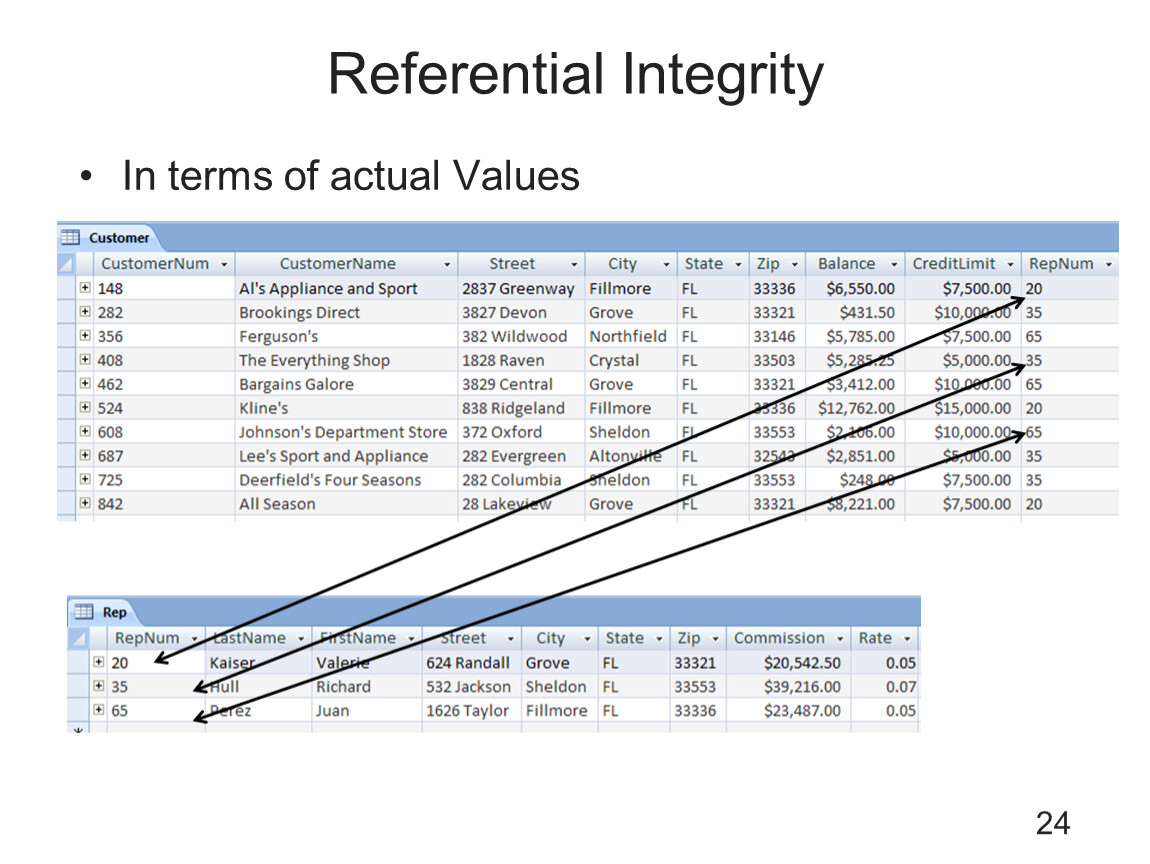

In terms of actual Values

24

25

Colonial and Solmaris

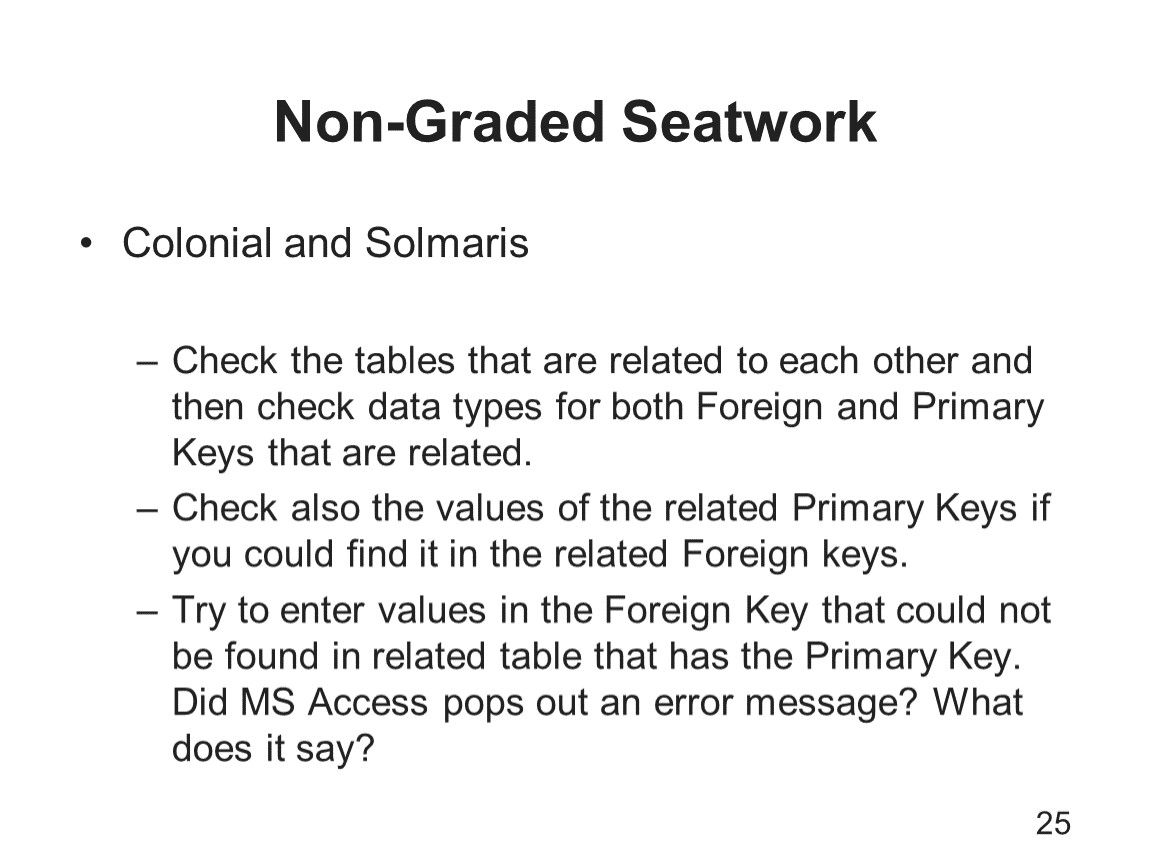

Check the tables that are related to each other and then check data types for both Foreign and Primary Keys that are related.
Check also the values of the related Primary Keys if you could find it in the related Foreign keys.
Try to enter values in the Foreign Key that could not be found in related table that has the Primary Key. Did MS Access pops out an error message? What does it say?

26

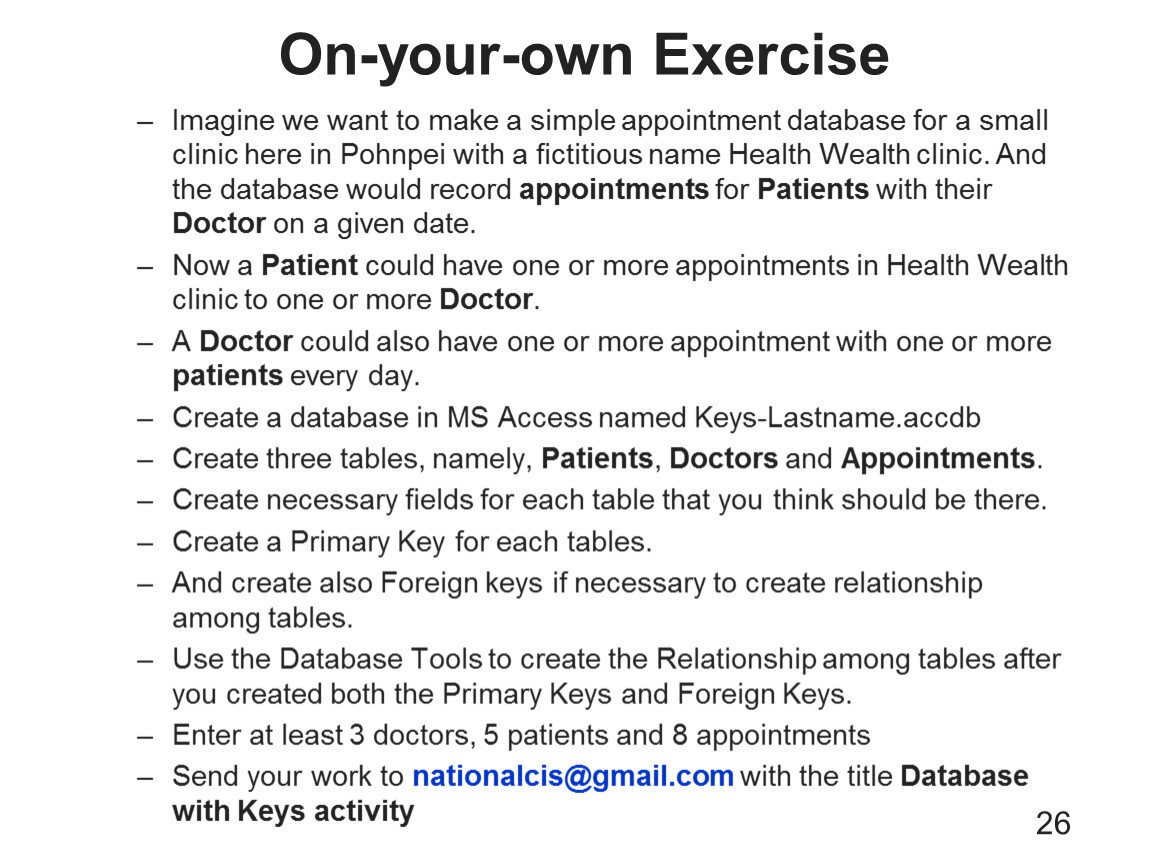

Imagine we want to make a simple appointment database for a small clinic here in Pohnpei with a fictitious name Health Wealth clinic. And the database would record appointments for Patients with their Doctor on a given date.
Now a Patient could have one or more appointments in Health Wealth clinic to one or more Doctor.
A Doctor could also have one or more appointment with one or more patients every day.
Create a database in MS Access named Keys-Lastname.accdb
Create three tables, namely, Patients, Doctors and Appointments.
Create necessary fields for each table that you think should be there.
Create a Primary Key for each tables.
And create also Foreign keys if necessary to create relationship among tables.
Use the Database Tools to create the Relationship among tables after you created both the Primary Keys and Foreign Keys.
Enter at least 3 doctors, 5 patients and 8 appointments
Send your work to nationalcis@gmail.com with the title Database with Keys activity

Summary (continued)

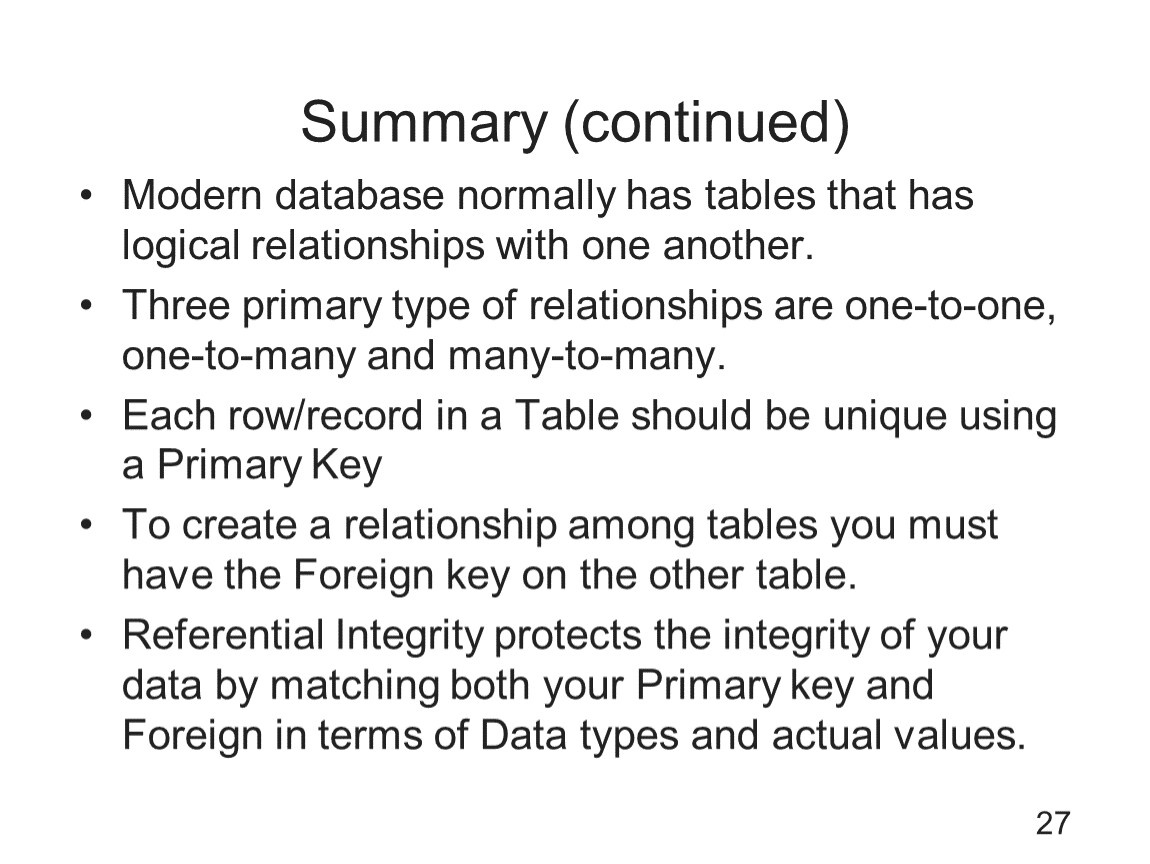

Modern database normally has tables that has logical relationships with one another.
Three primary type of relationships are one-to-one, one-to-many and many-to-many.
Each row/record in a Table should be unique using a Primary Key
To create a relationship among tables you must have the Foreign key on the other table.
Referential Integrity protects the integrity of your data by matching both your Primary key and Foreign in terms of Data types and actual values.
