Mechanical properties of the solid bodies Mark schemes

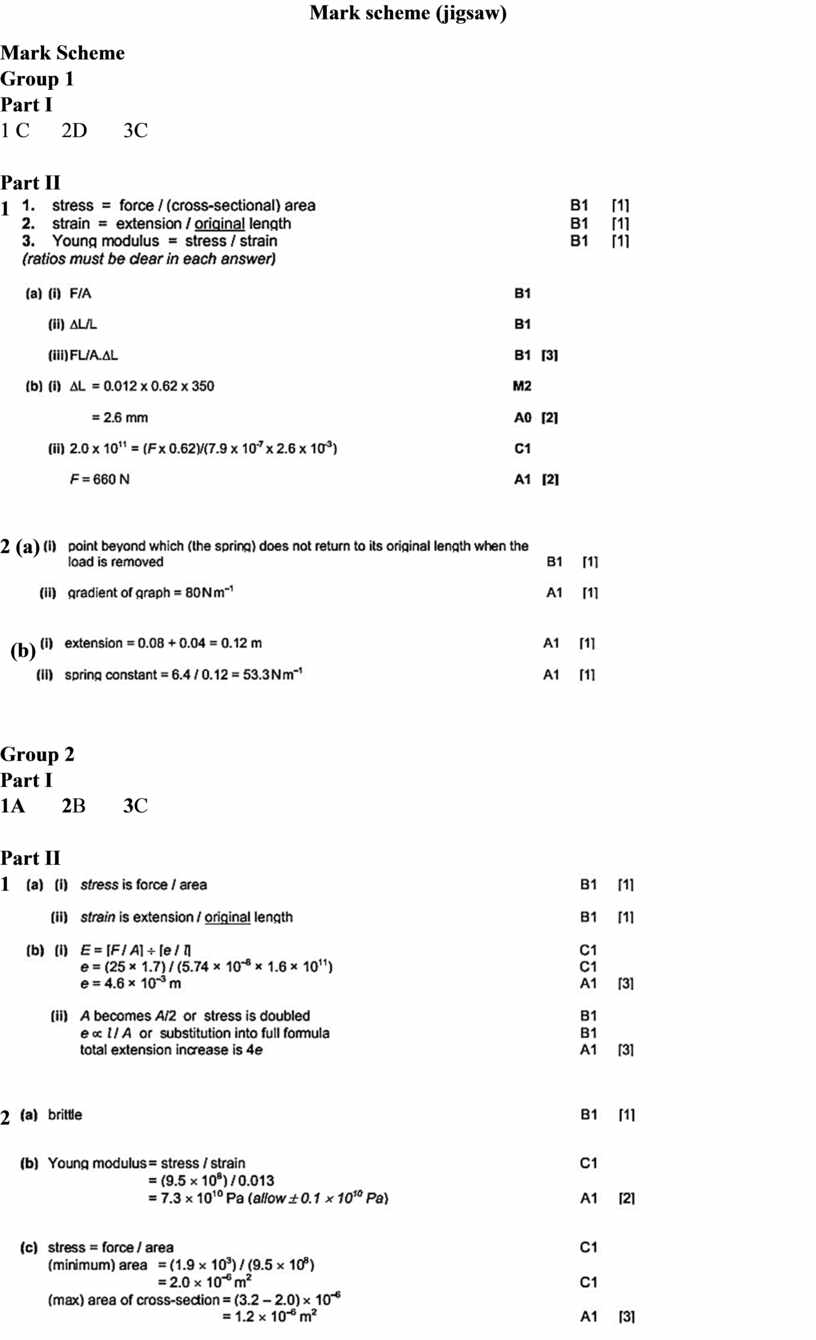

Mark scheme (jigsaw)

Mark Scheme

Group 1

Part I

1 C      2D       3C

Part II

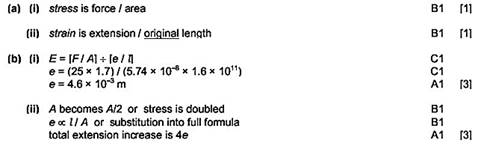

1

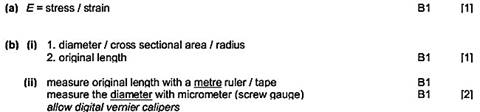

2 (a)

  (b)

Group 2

Part I

1A       2B       3C

Part II

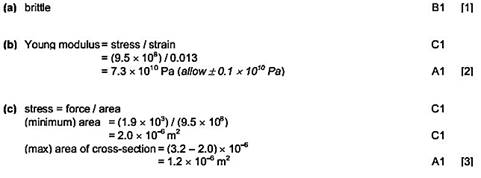

1

2

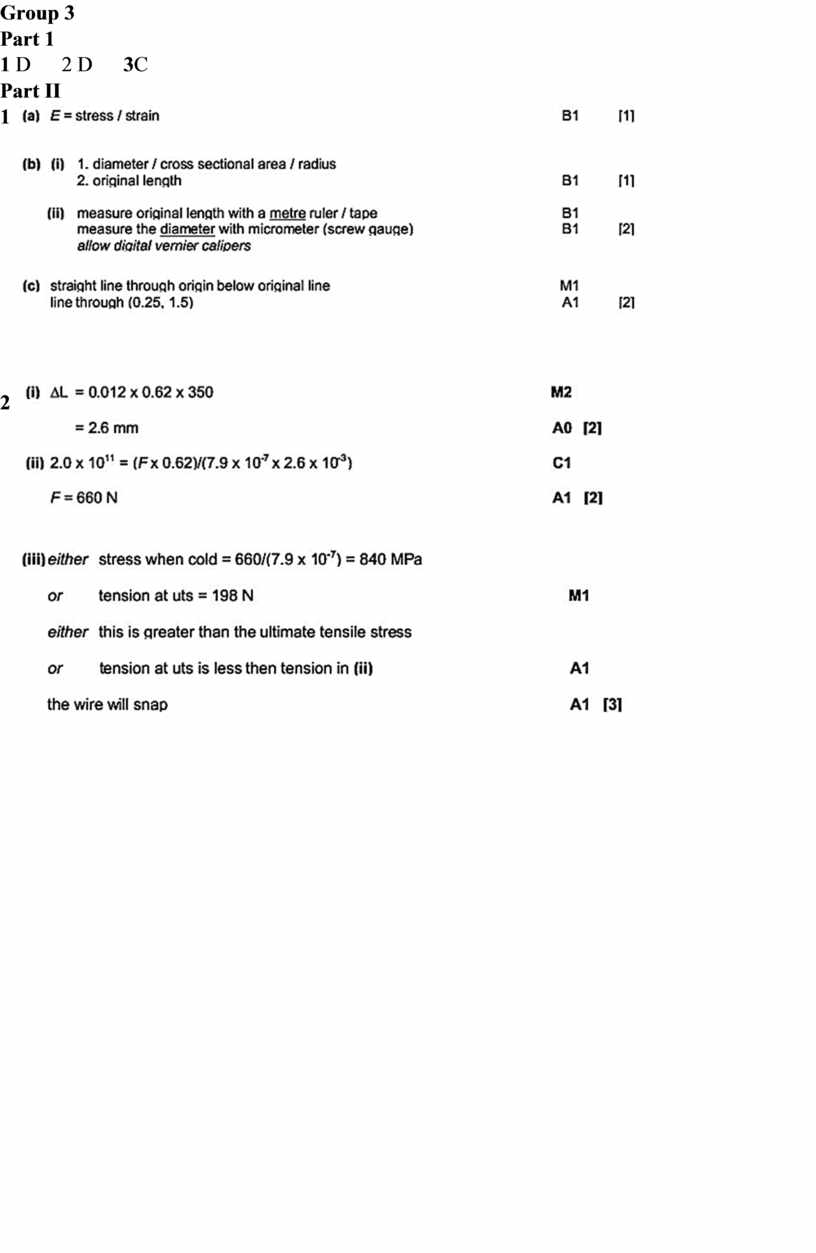

Group 3

Part 1

1 D      2 D      3C

Part II

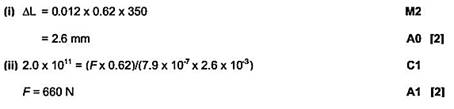

1

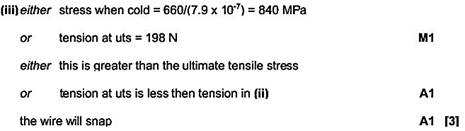

2

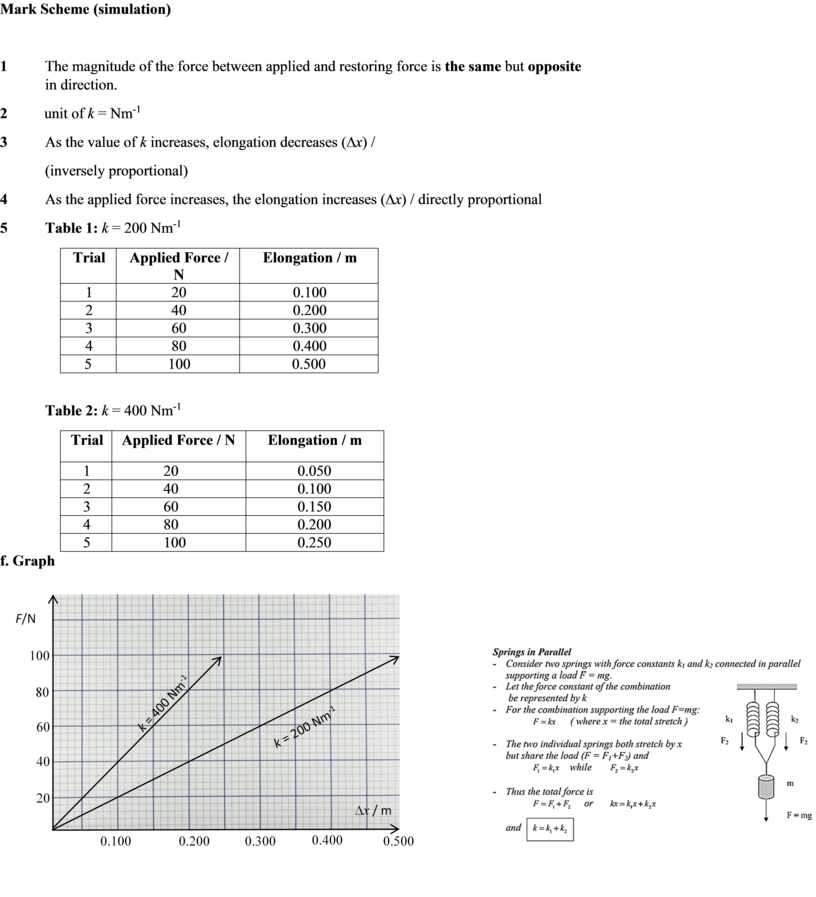

Mark Scheme (simulation)

1          The magnitude of the force between applied and restoring force is the same but opposite in direction.

2          unit of k = Nm^-1

3          As the value of k increases, elongation decreases (∆x) /

(inversely proportional)

4          As the applied force increases, the elongation increases (∆x) / directly proportional

5          Table 1: k = 200 Nm^-1

Table 2: k = 400 Nm^-1

f. Graph

6          (a) The gradient of graph 2 is much steeper than the gradient of graph 1/ gradient of graph 2 is greater than the gradient of graph 1  [1]

            The gradient of graph 1 is the same as the spring constant, k. (same as the gradient of graph 2)                                      [1]

            (b) The gradient of F-∆x graph is the spring constant, k. [1]

7/8       Varied answers

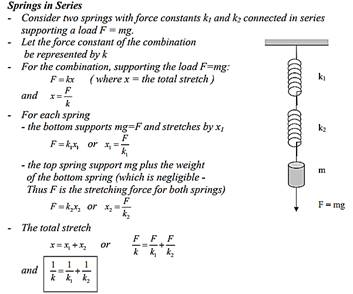

9          Parallel: when the springs are connected in parallel, the total spring constant increases. Therefore elongation will be smaller thab that each spring on its own. [1]

            Series:  when the springs are connected in series, the total spring constant decreases. Therefore elongation will be greater than that of each spring on its own.

10
