Long-term plan unit:

Unit 2A: Dynamics (materials and gravitation)

School:

Date:

Teacher Names:

Grade: 11

Number present:

Absent:

Topic:

LABORATORY WORK №2“THE STUDY OF THE MOVEMENT OF A BODY REVIVED GORIZOTAL”

Learning objectives that are achieved at this lesson(Subject Programme reference)

9.2.1.10 - describe the movement of a body thrown horizontally using the kinematic equations of uniform and uniform motion; 9.2.1.11 - determine the speed of movement of the body thrown horizontally; 9.2.1.12 - build the trajectory of the body, thrown horizontally

Lesson objectives

Determines the velocity of motion of the horizontally thrown body and draws its trajectory

Assessment criteria

At least 80% of the learners should be able to:

can determine the velocity of the horizontally dropped body; horizontally cross the body's trajectory

Language objectives

Students should use new words that reflect their own understanding. They need to understand and apply terms.

Special subject vocabulary and terminology:

Time

height

Values instilled at the lesson

Co-operation, Opportunity for Life-Long Learning, Academic Integrity and Transparency, Respect for Self and Others

Cross-curricular links

Mathematics: Linear Graphs – gradient of force against extension graph

Chemistry: Properties of Matter – (malleability, brittleness, ductility, etc)

English: Definitions of malleability, brittleness, ductility, etc.

ICT skills

Internet videos (www.youtube.com)

Previous learning

Learners are aware of general information about class motion, speed, average velocity and uniform smooth traffic schedule from Grade 7

Planned stages of the lesson

Planned activities at the lesson

Resources

(5 min)

I. Organizational period.

II. Motivation

III. Check home work

5-43 min

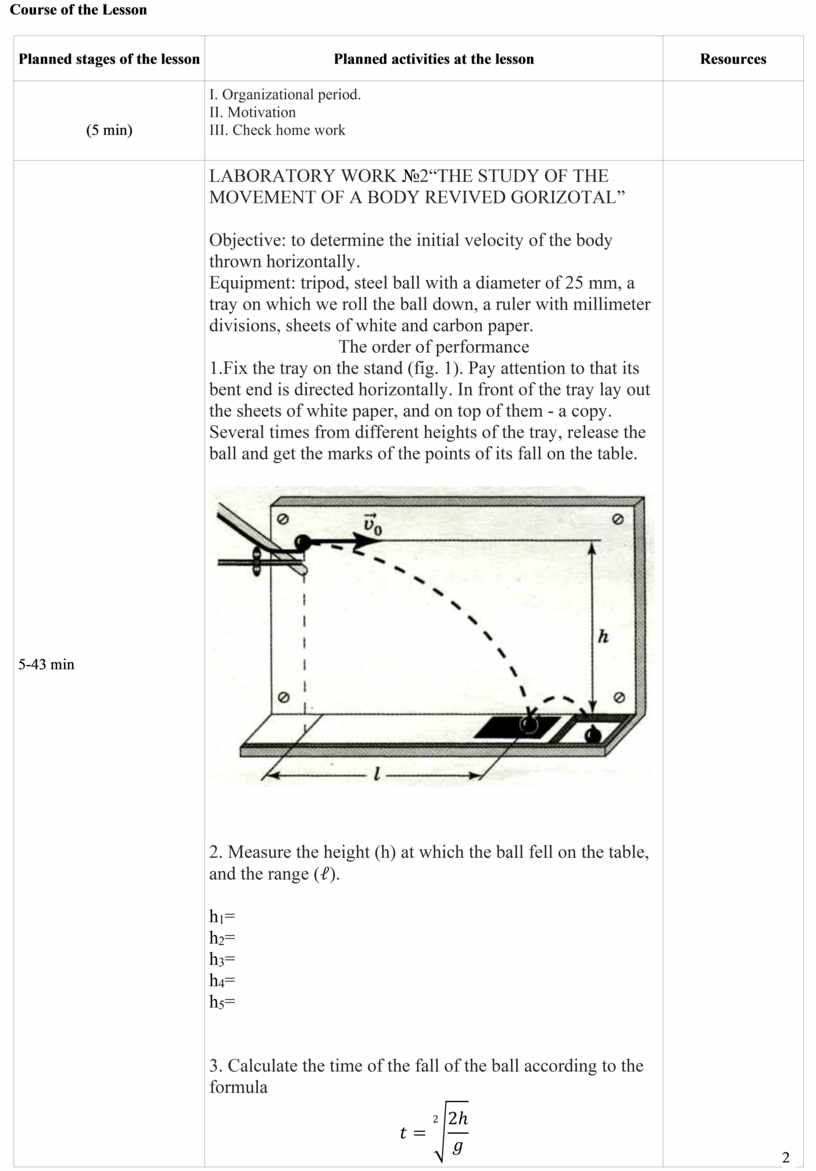

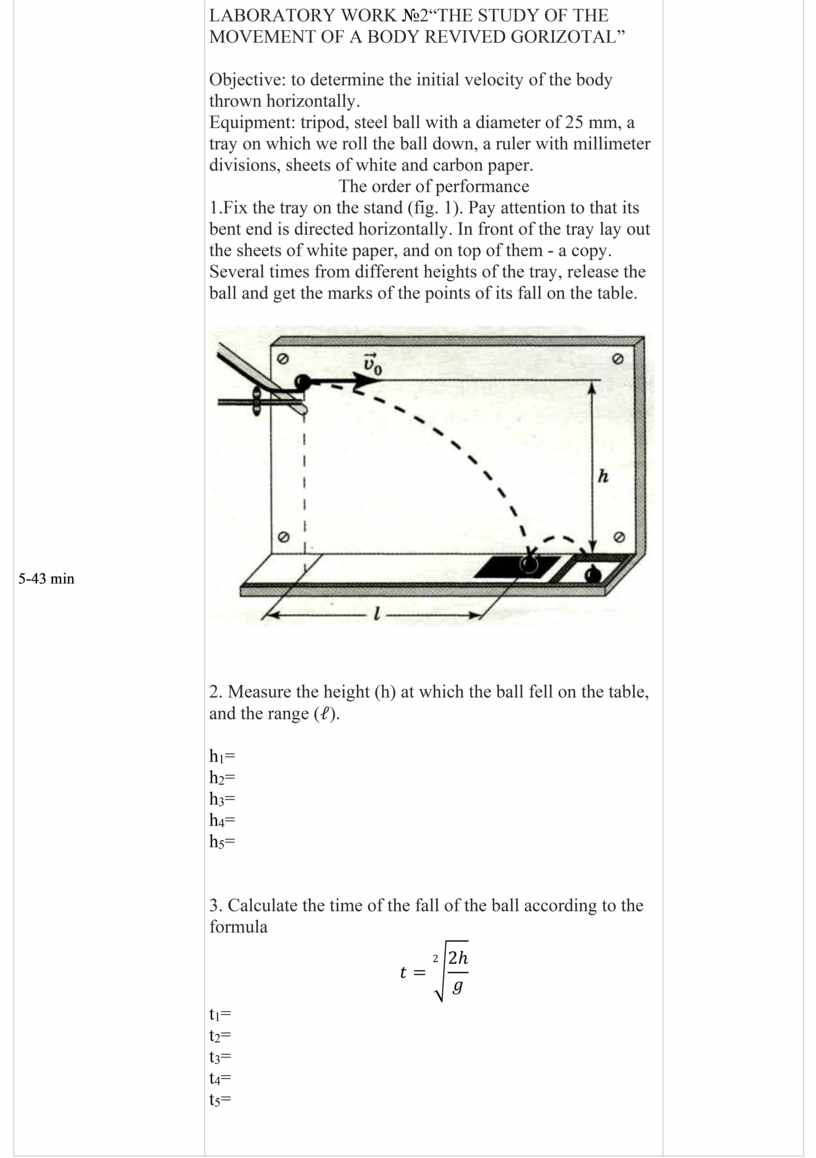

LABORATORY WORK №2“THE STUDY OF THE MOVEMENT OF A BODY REVIVED GORIZOTAL”

Objective: to determine the initial velocity of the body thrown horizontally.

Equipment: tripod, steel ball with a diameter of 25 mm, a tray on which we roll the ball down, a ruler with millimeter divisions, sheets of white and carbon paper.

The order of performance

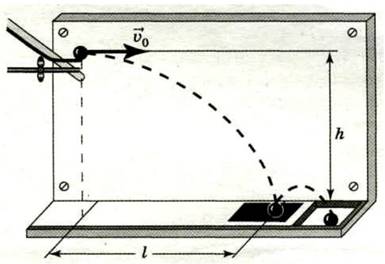

1.Fix the tray on the stand (fig. 1). Pay attention to that its bent end is directed horizontally. In front of the tray lay out the sheets of white paper, and on top of them - a copy. Several times from different heights of the tray, release the ball and get the marks of the points of its fall on the table.

2. Measure the height (h) at which the ball fell on the table, and the range ().

h₁=

h₂=

h₃=

h₄=

h₅=

3. Calculate the time of the fall of the ball according to the formula

t₁=

t₂=

t₃=

t₄=

t₅=

4. Use the obtained data to calculate the horizontal velocity of the ball according to the formula ϑ0 =  / t.

5. Rolling the ball on the tray from the same place, repeat the experiment several times and record the measurement results in table №1:

6. Estimate the measurement error.

7. Make a conclusion.

End

(43-45min)

Giving of hometask.

Reflection.

Differentiation

Classification of materials, worksheets, and collaborative learning

Assessment – how are you planning to check students’ learning?

Assessment tools are as follows:

- through HOTS questions

- worksheet (problem sets and structured questions)

Health and safety regulations

Reflection

Use the space below to reflect on your lesson. Answer the most relevant questions from the box on the left about your lesson.

Summary evaluation
