Physics 10 Grade Magnetic field Field in the conductors presentation

Field density of the infinitely straight and circular conductors with current. Right-hand screw rule.

1

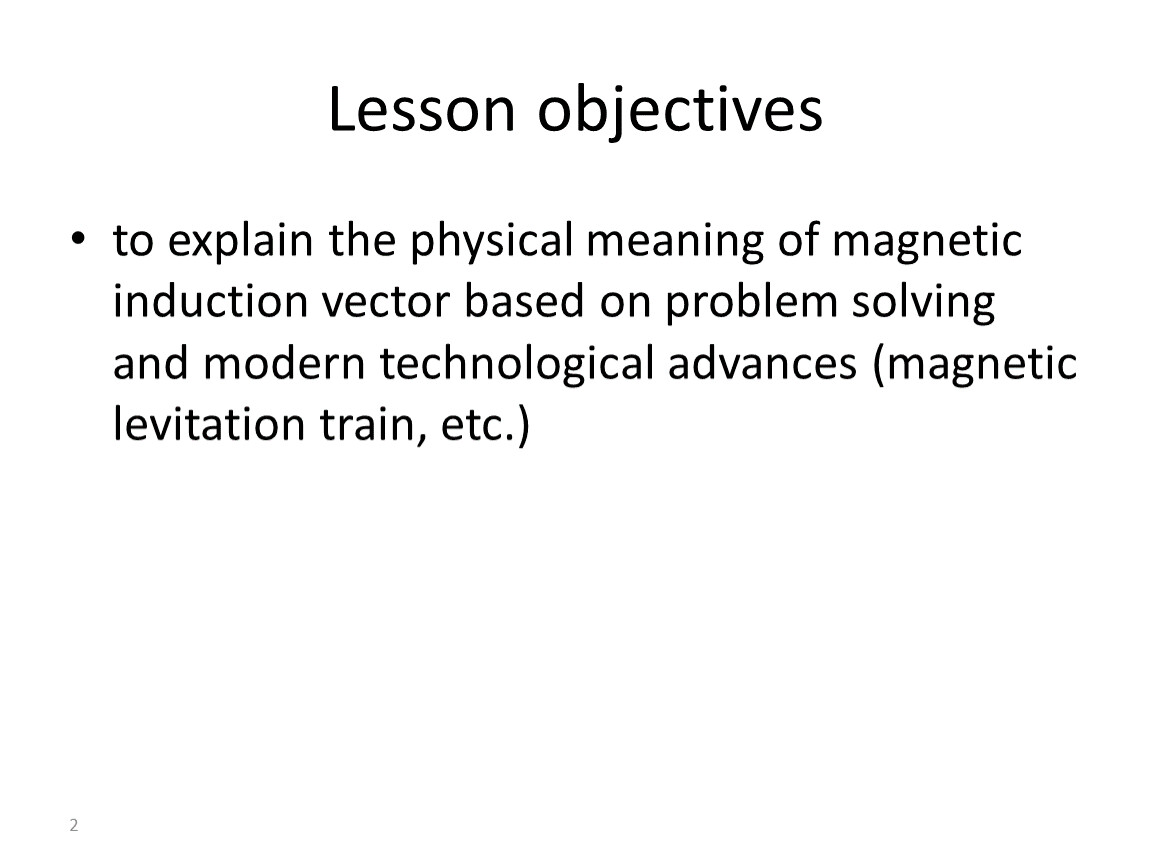

Lesson objectives

to explain the physical meaning of magnetic induction vector based on problem solving and modern technological advances (magnetic levitation train, etc.)

2

3

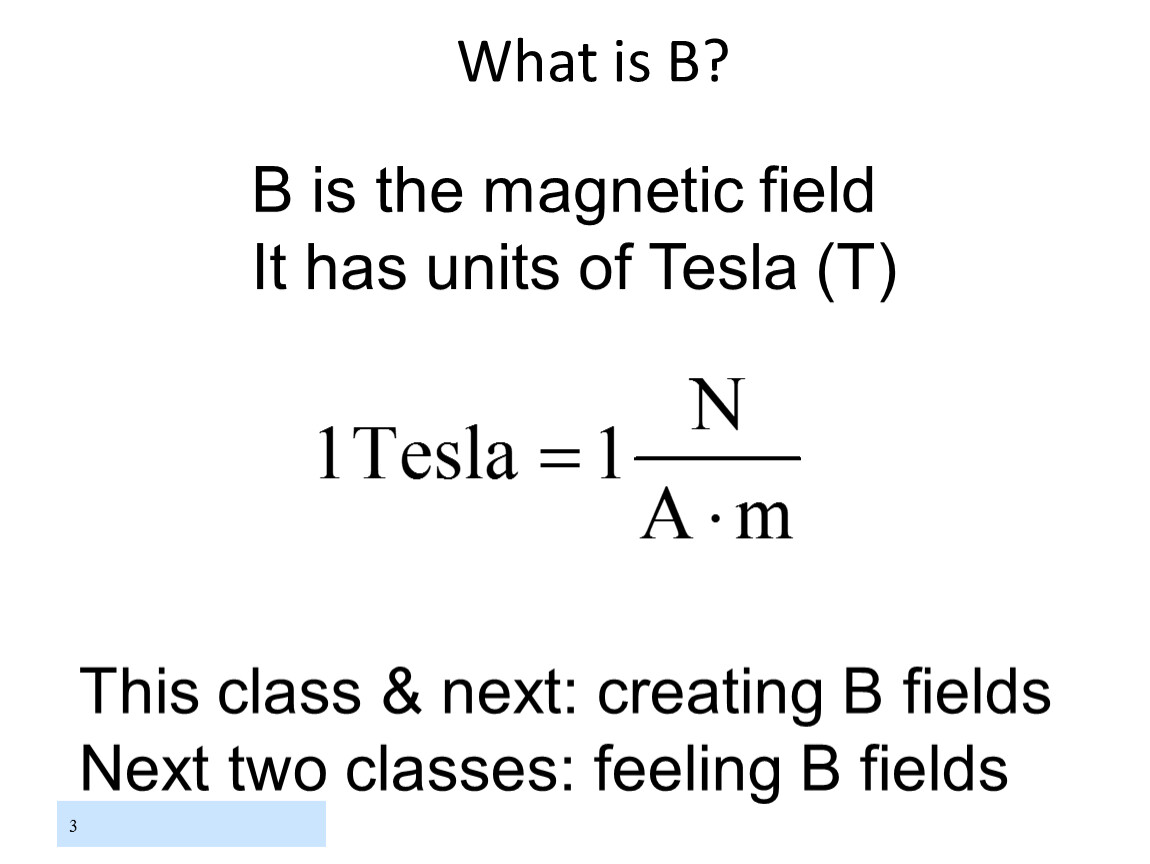

What is B?

B is the magnetic field
It has units of Tesla (T)

This class & next: creating B fields
Next two classes: feeling B fields

4

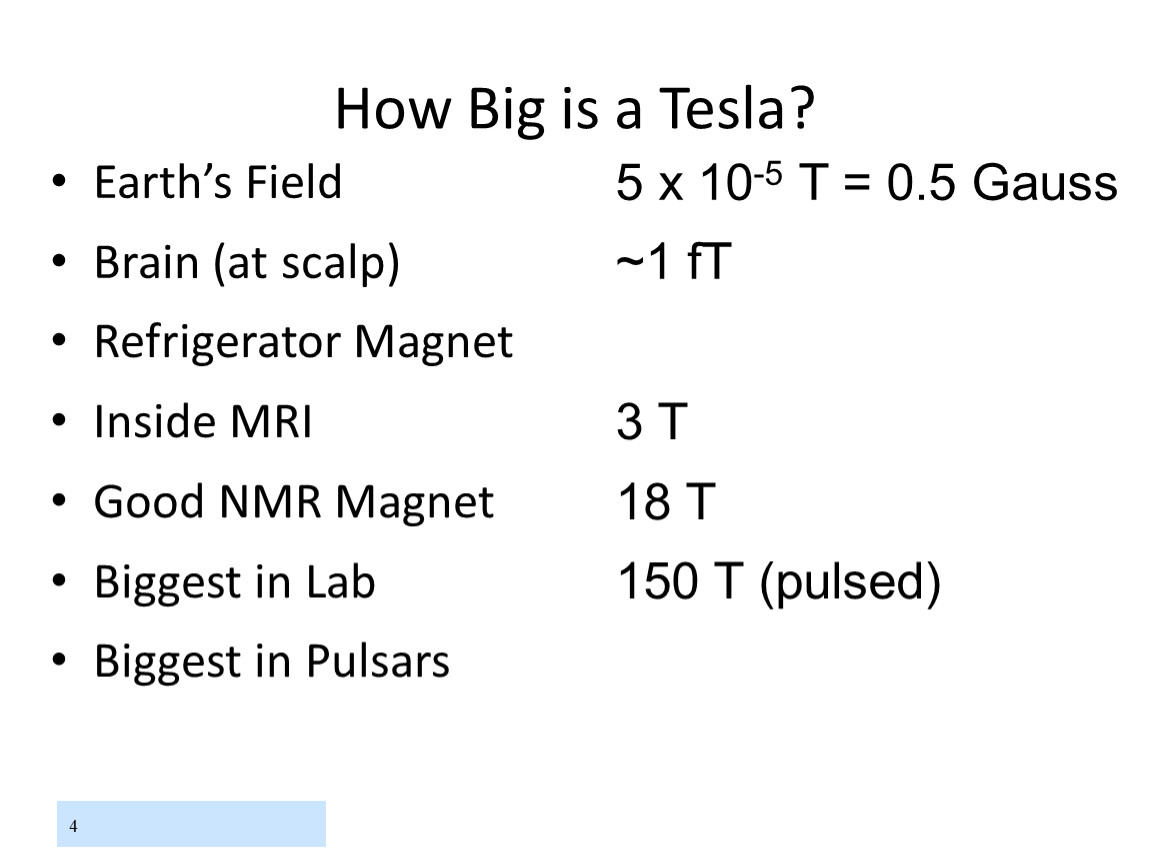

How Big is a Tesla?

Earth’s Field
Brain (at scalp)
Refrigerator Magnet
Inside MRI
Good NMR Magnet
Biggest in Lab
Biggest in Pulsars

5 x 10-5 T = 0.5 Gauss
~1 fT

3 T
18 T
150 T (pulsed)

5

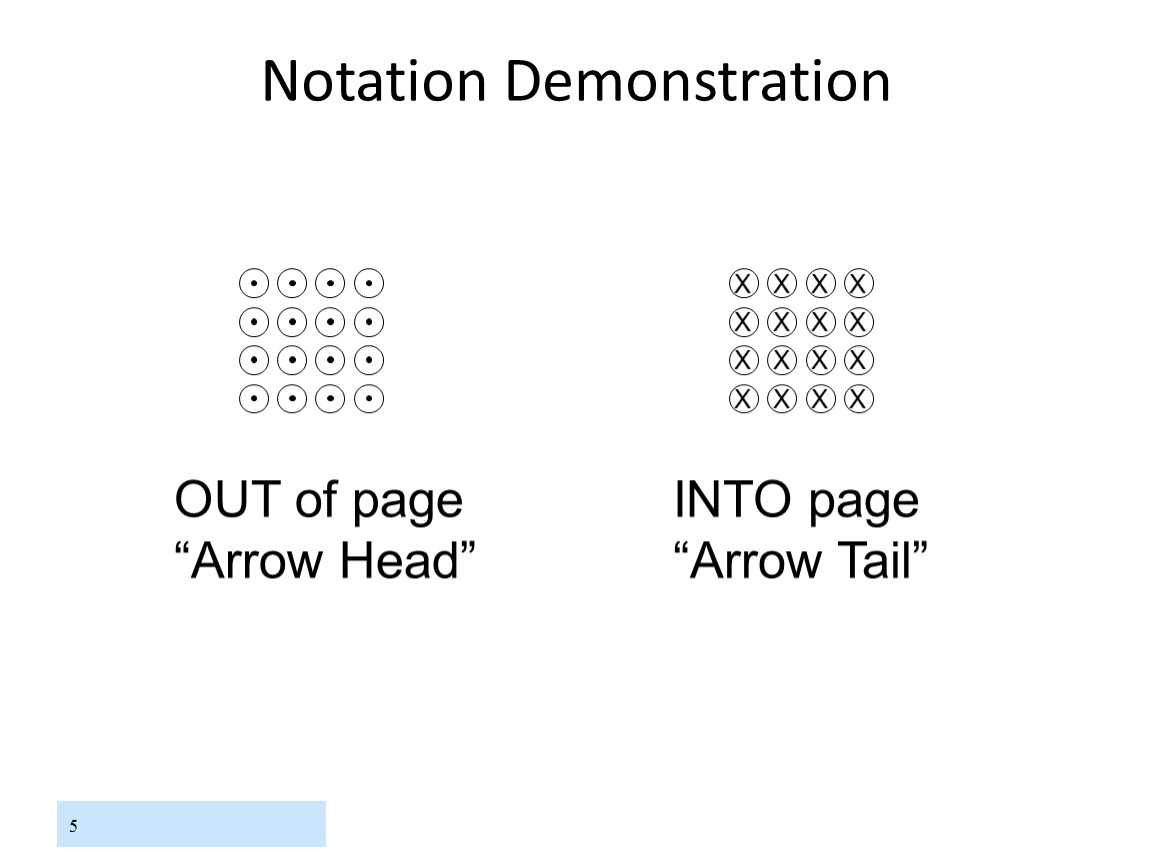

Notation Demonstration

OUT of page
“Arrow Head”

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

INTO page
“Arrow Tail”

6

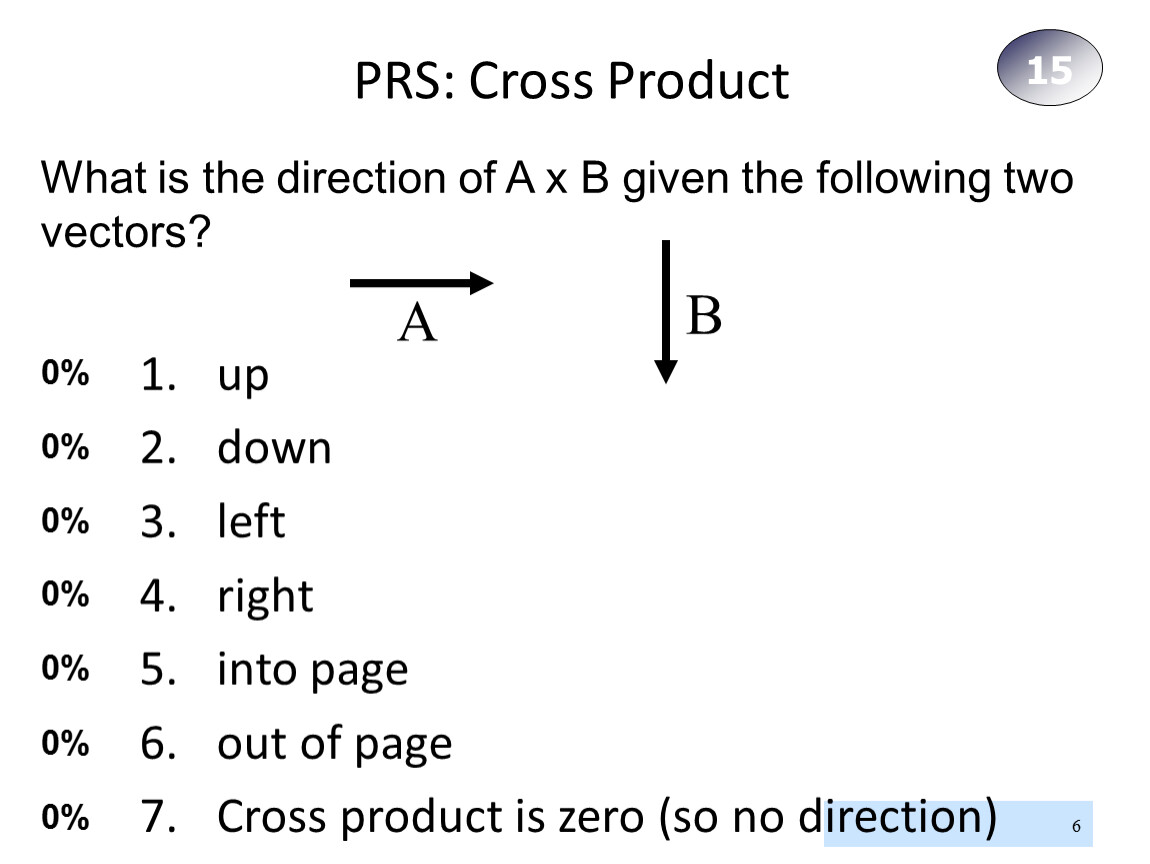

PRS: Cross Product

What is the direction of A x B given the following two vectors?

up
down
left
right
into page
out of page
Cross product is zero (so no direction)

7

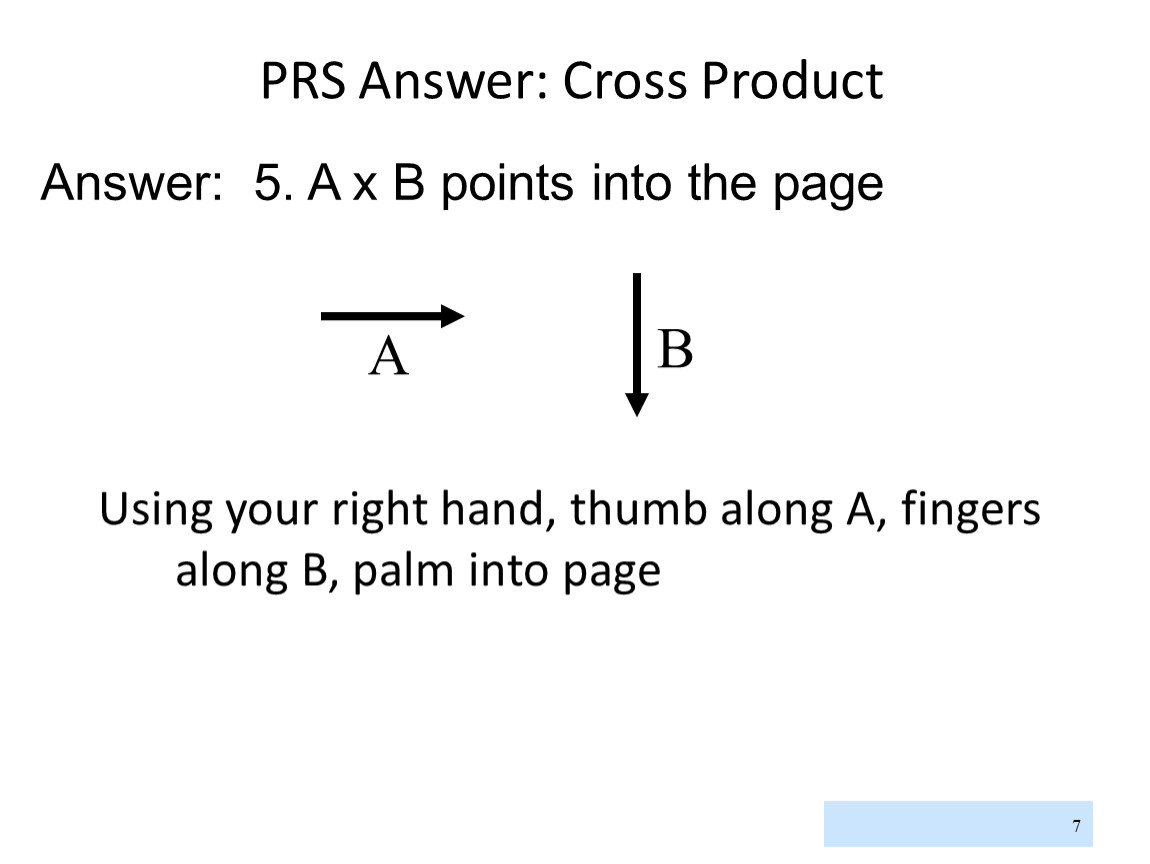

PRS Answer: Cross Product

Using your right hand, thumb along A, fingers along B, palm into page

Answer: 5. A x B points into the page

8

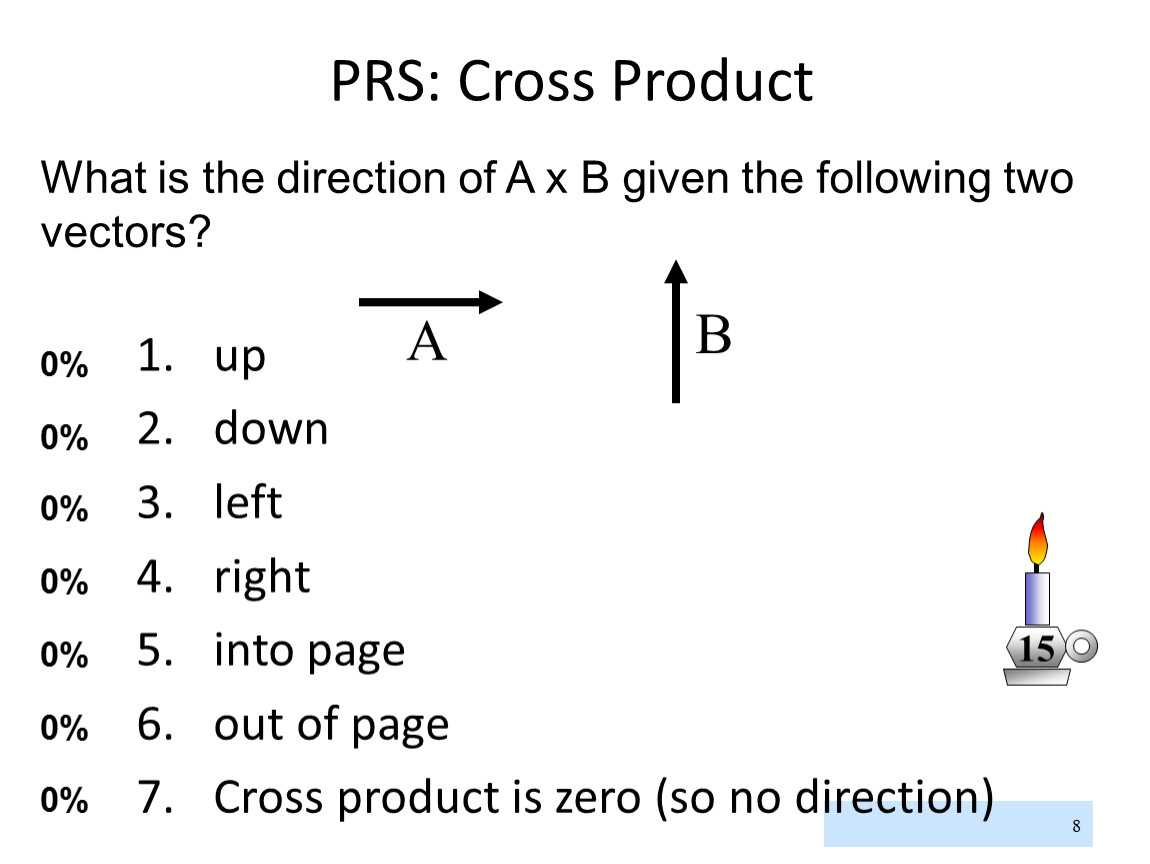

PRS: Cross Product

What is the direction of A x B given the following two vectors?

up
down
left
right
into page
out of page
Cross product is zero (so no direction)

9

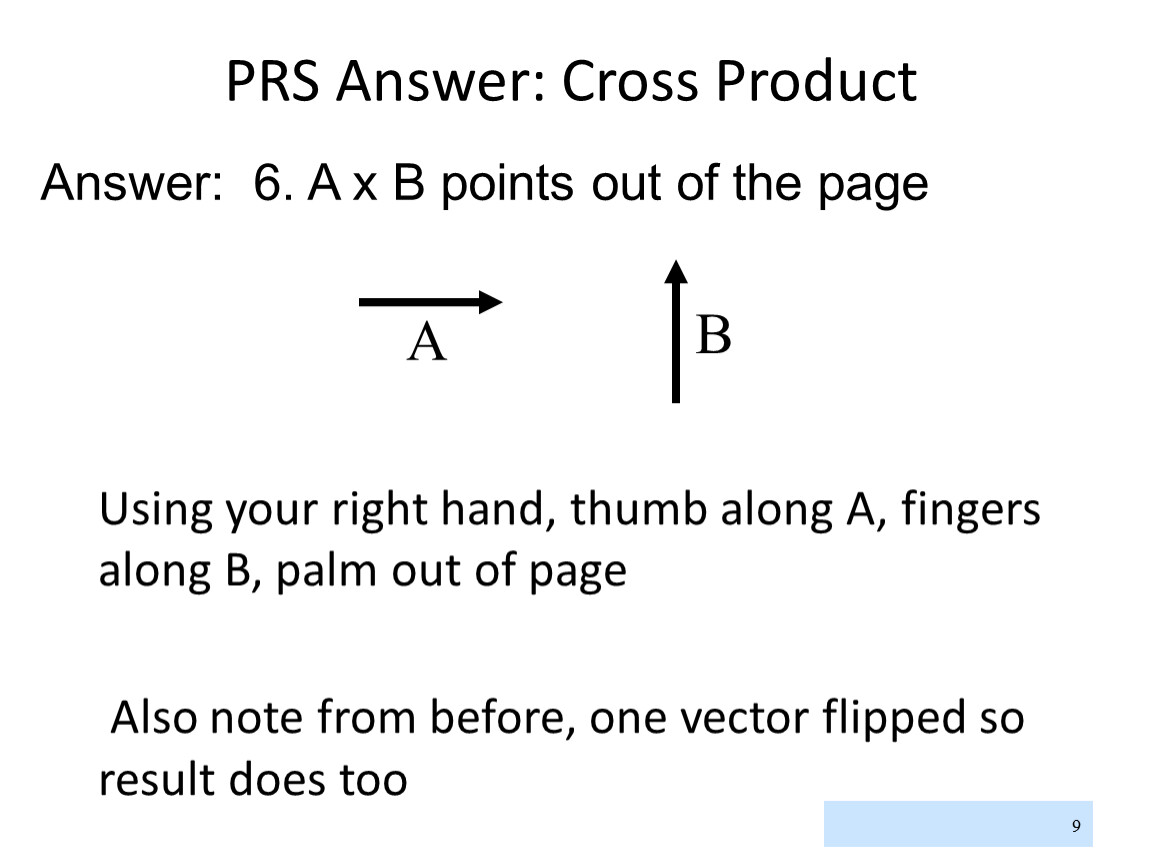

PRS Answer: Cross Product

Using your right hand, thumb along A, fingers along B, palm out of page

Also note from before, one vector flipped so result does too

Answer: 6. A x B points out of the page

10

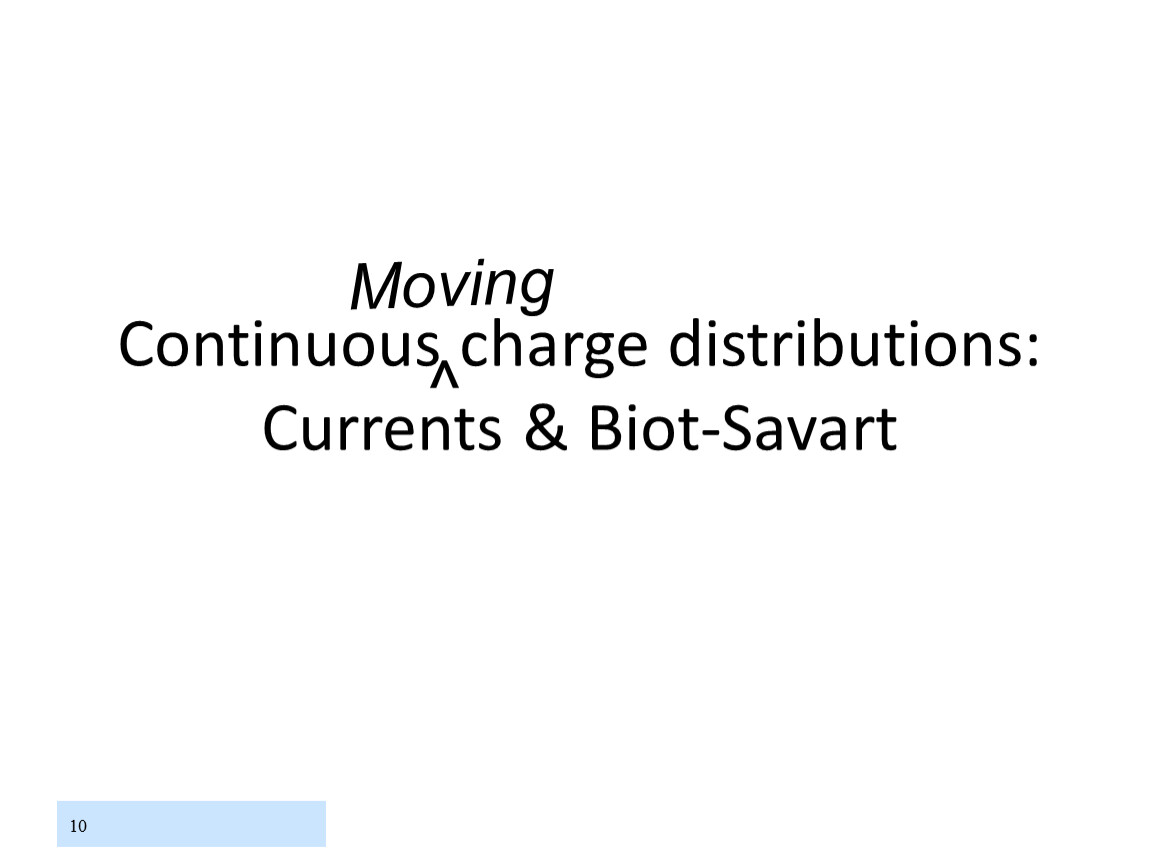

Continuous charge distributions:Currents & Biot-Savart

^

11

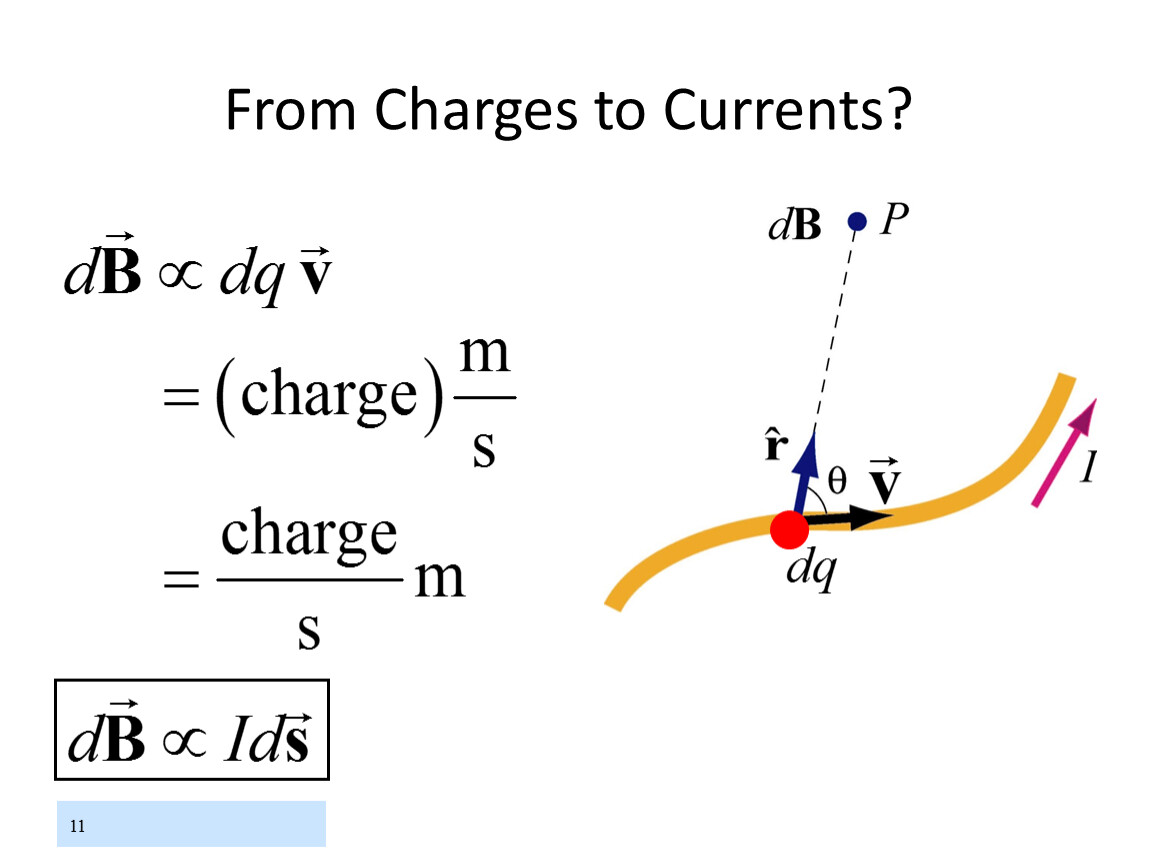

From Charges to Currents?

12

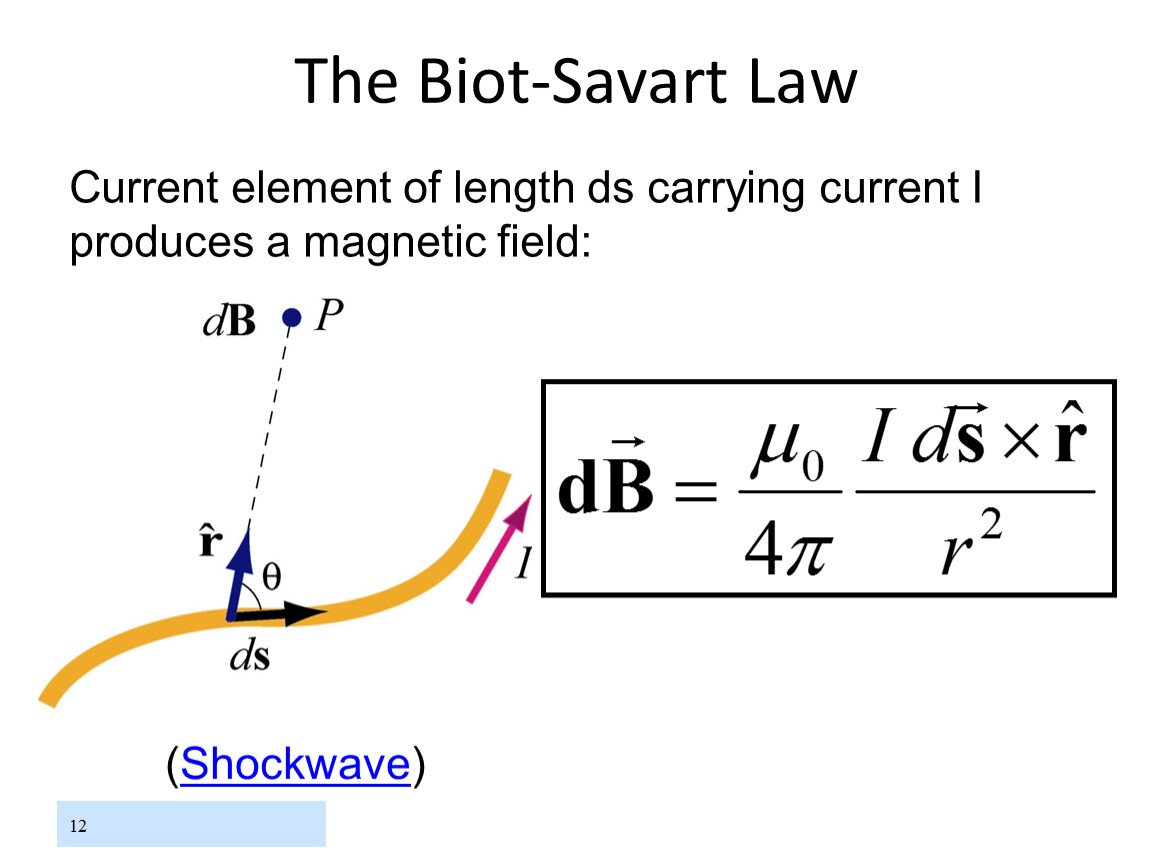

The Biot-Savart Law

Current element of length ds carrying current I produces a magnetic field:

(Shockwave)

13

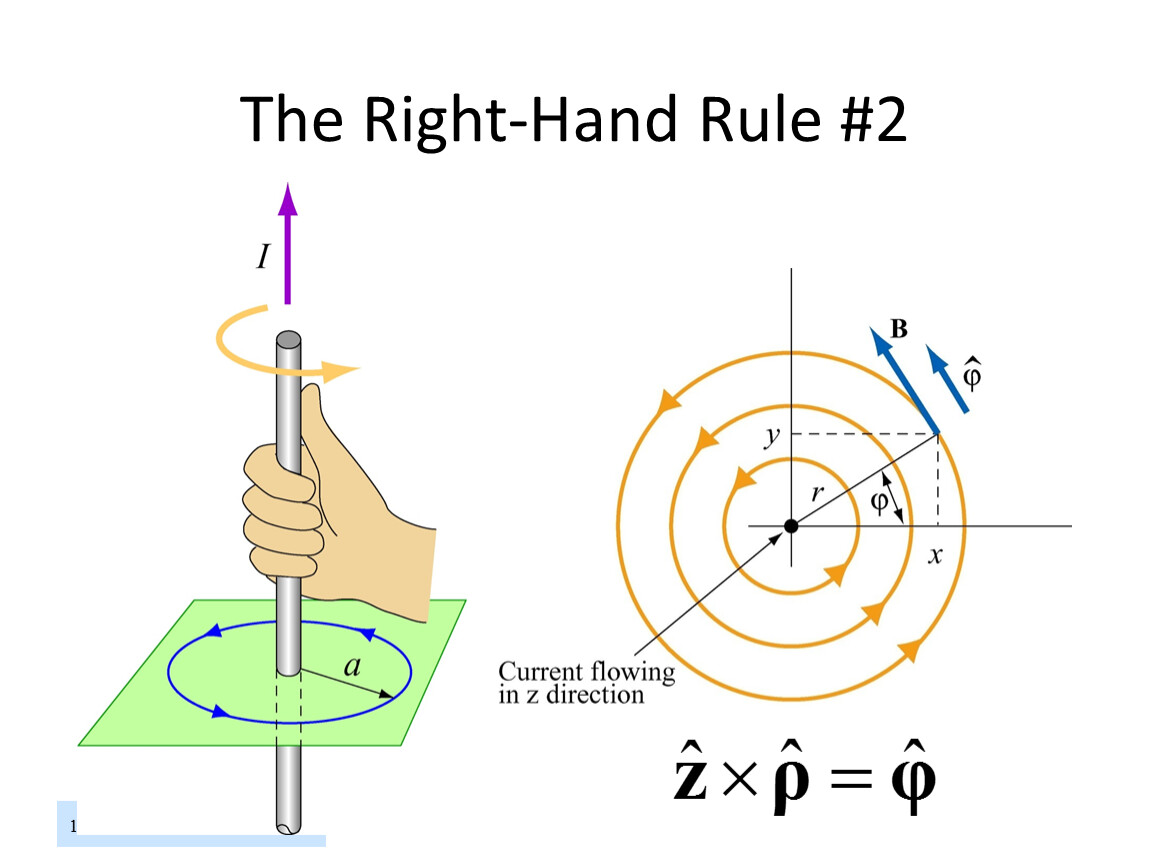

The Right-Hand Rule #2

14

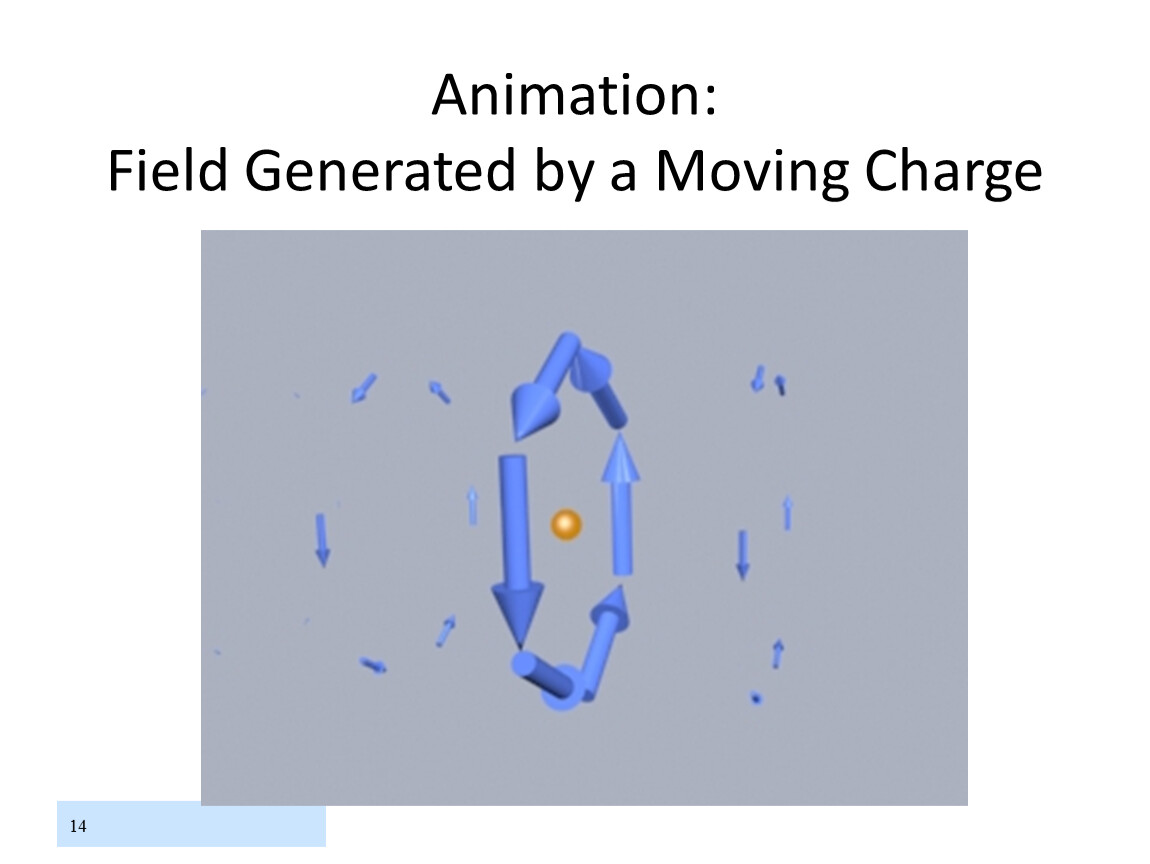

Animation:Field Generated by a Moving Charge

15

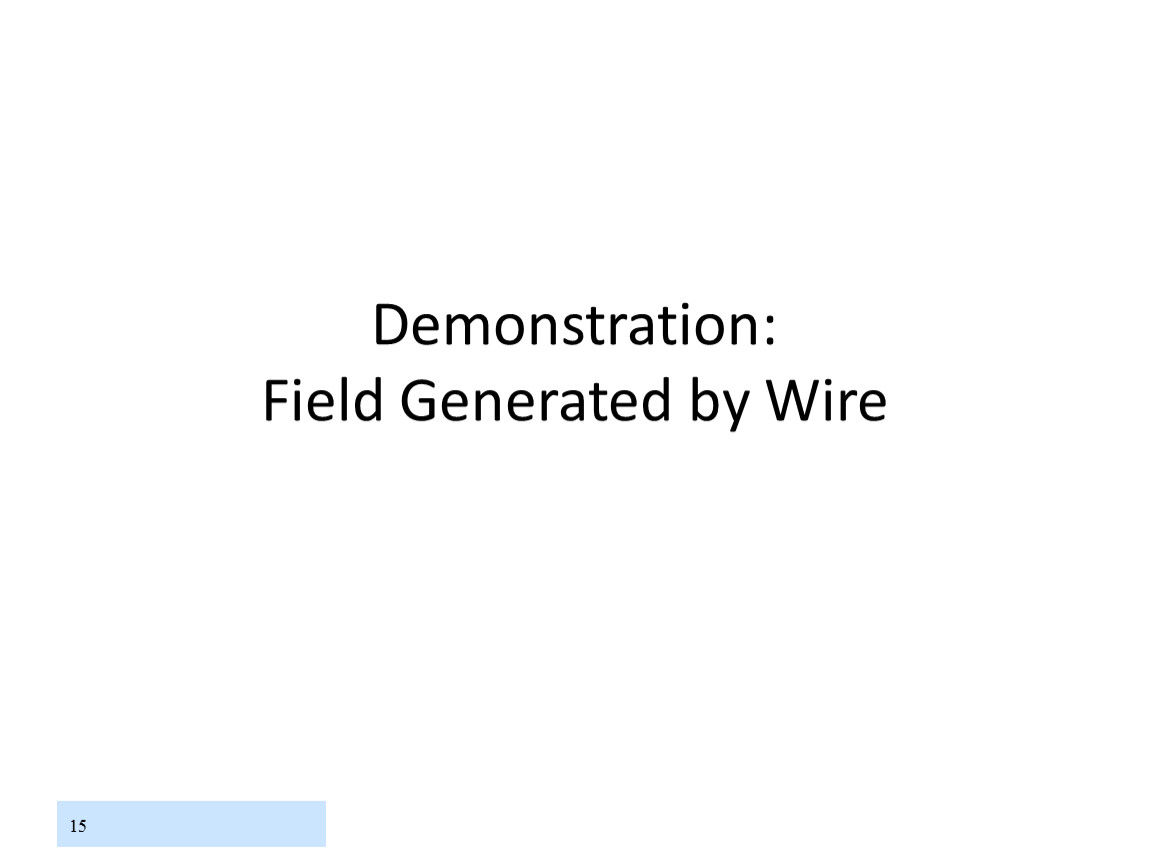

Demonstration:Field Generated by Wire

16

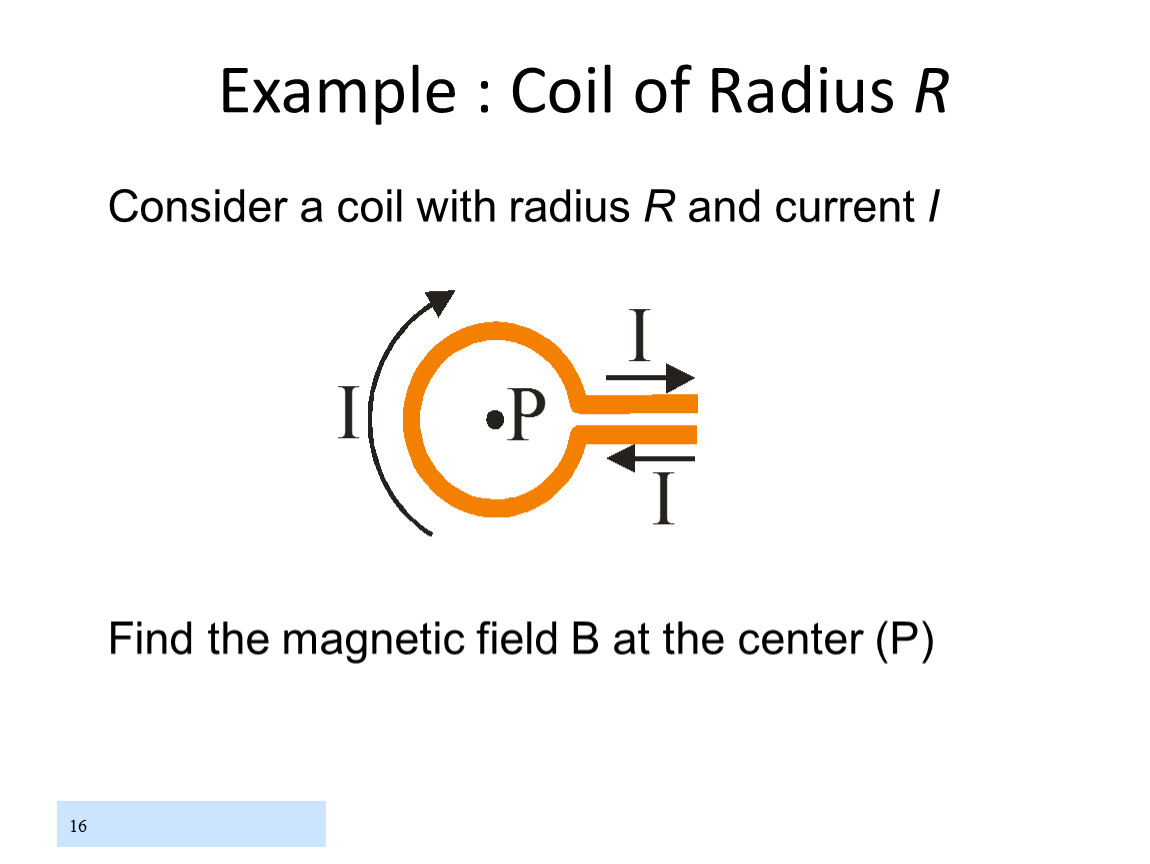

Example : Coil of Radius R

Consider a coil with radius R and current I

Find the magnetic field B at the center (P)

17

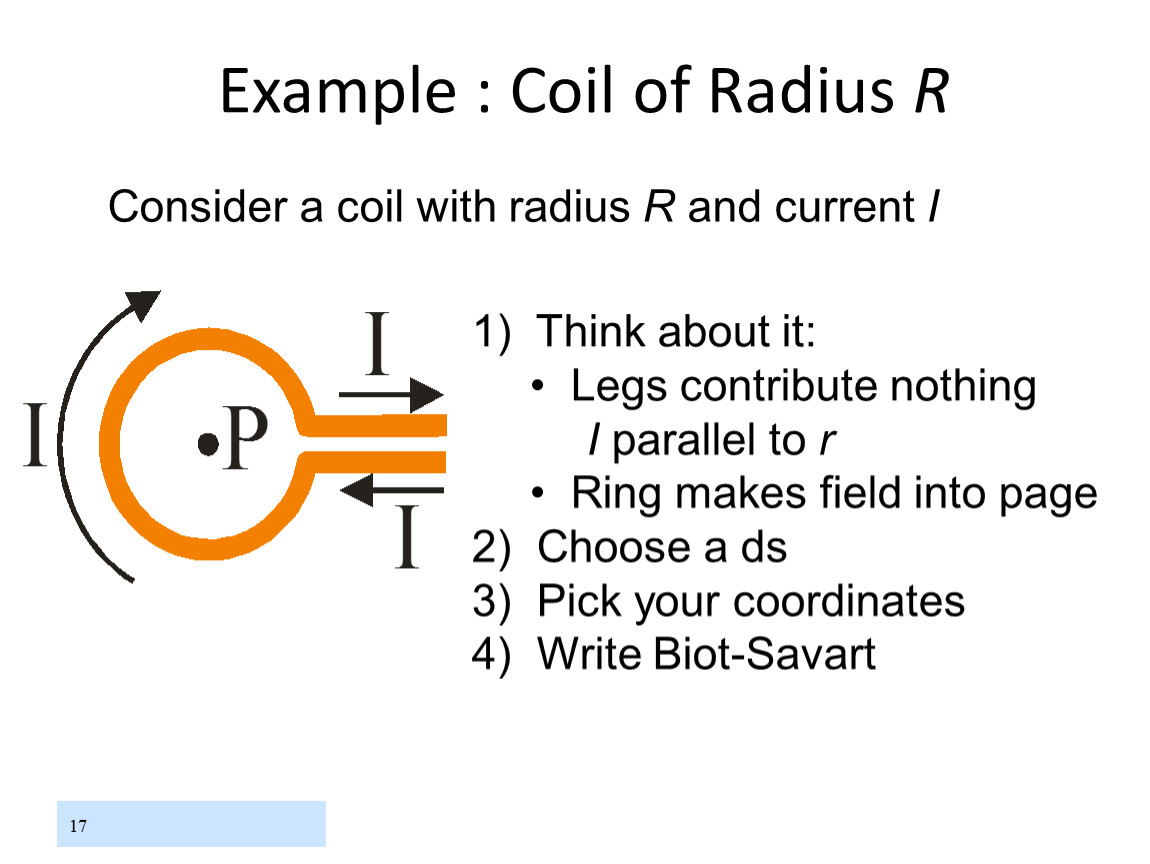

Example : Coil of Radius R

Consider a coil with radius R and current I

1) Think about it:
Legs contribute nothing
I parallel to r
Ring makes field into page
2) Choose a ds
3) Pick your coordinates
4) Write Biot-Savart

18

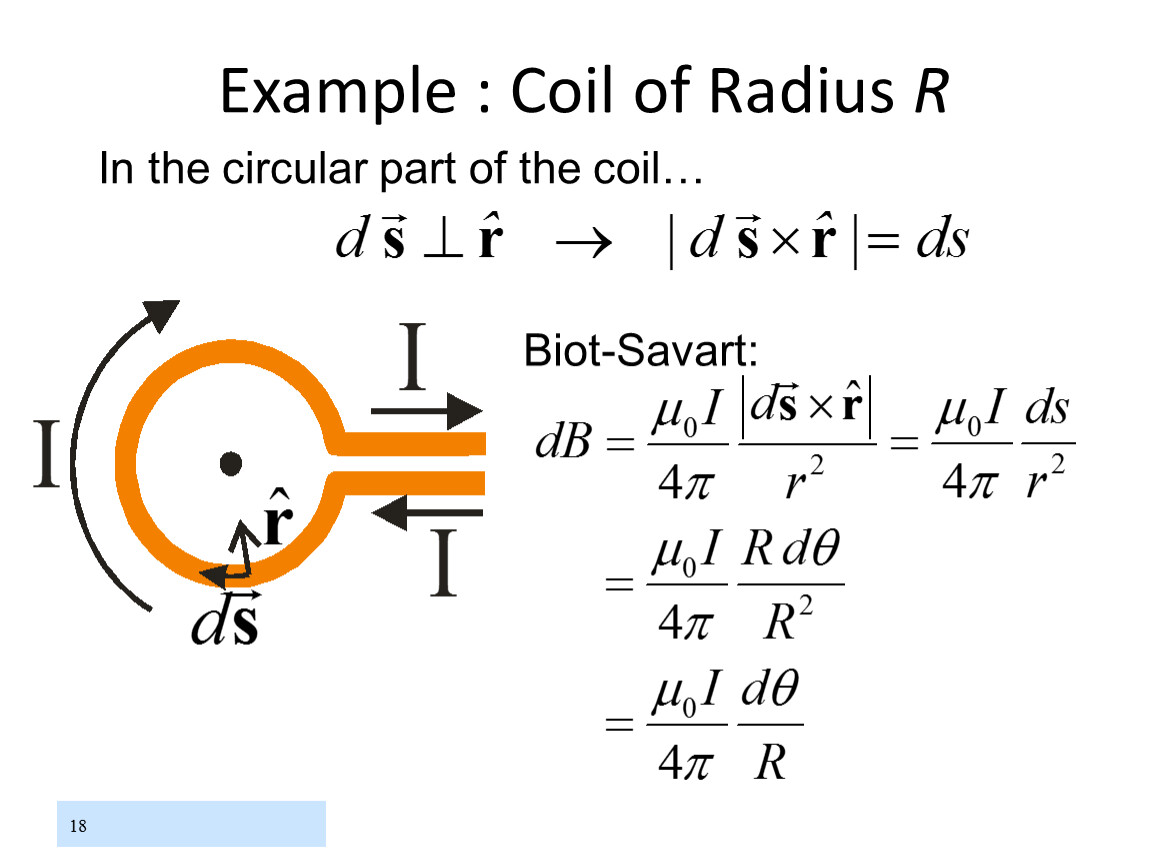

Example : Coil of Radius R

In the circular part of the coil…

Biot-Savart:

19

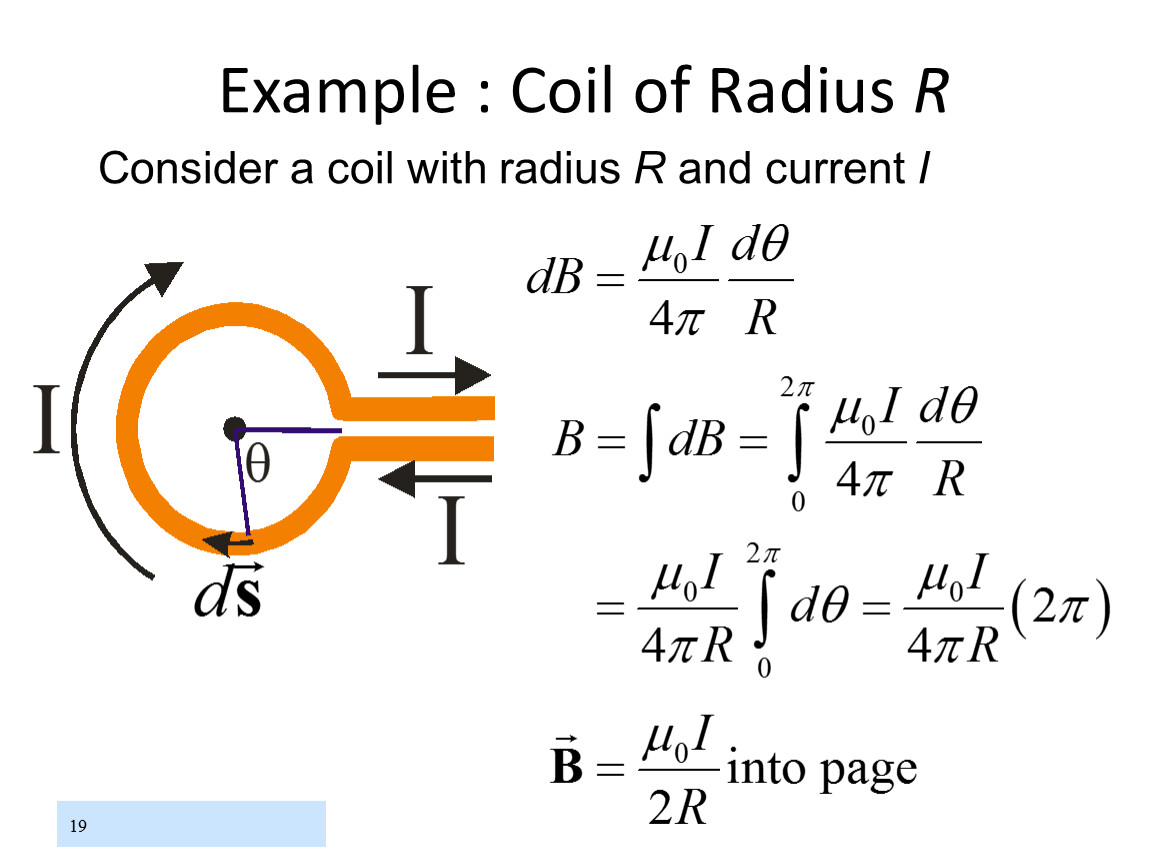

Example : Coil of Radius R

Consider a coil with radius R and current I

20

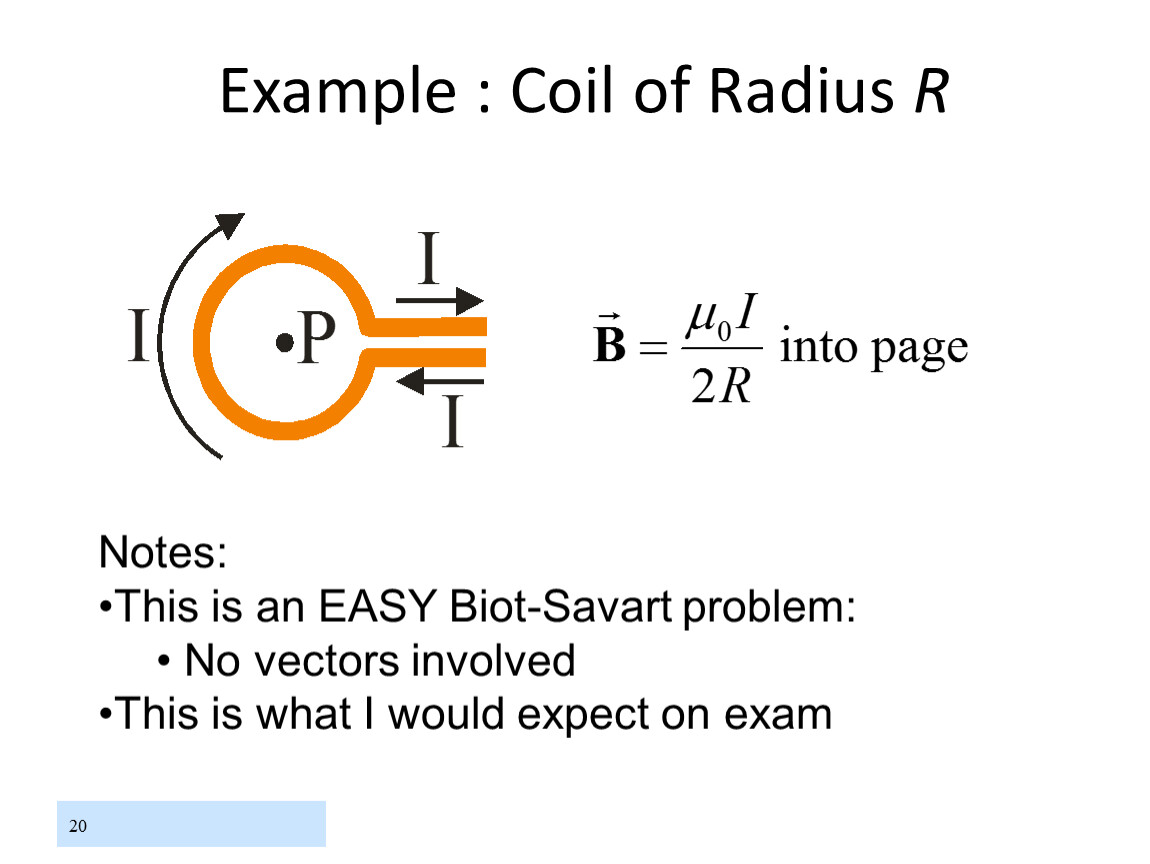

Example : Coil of Radius R

Notes:
This is an EASY Biot-Savart problem:
No vectors involved
This is what I would expect on exam

21

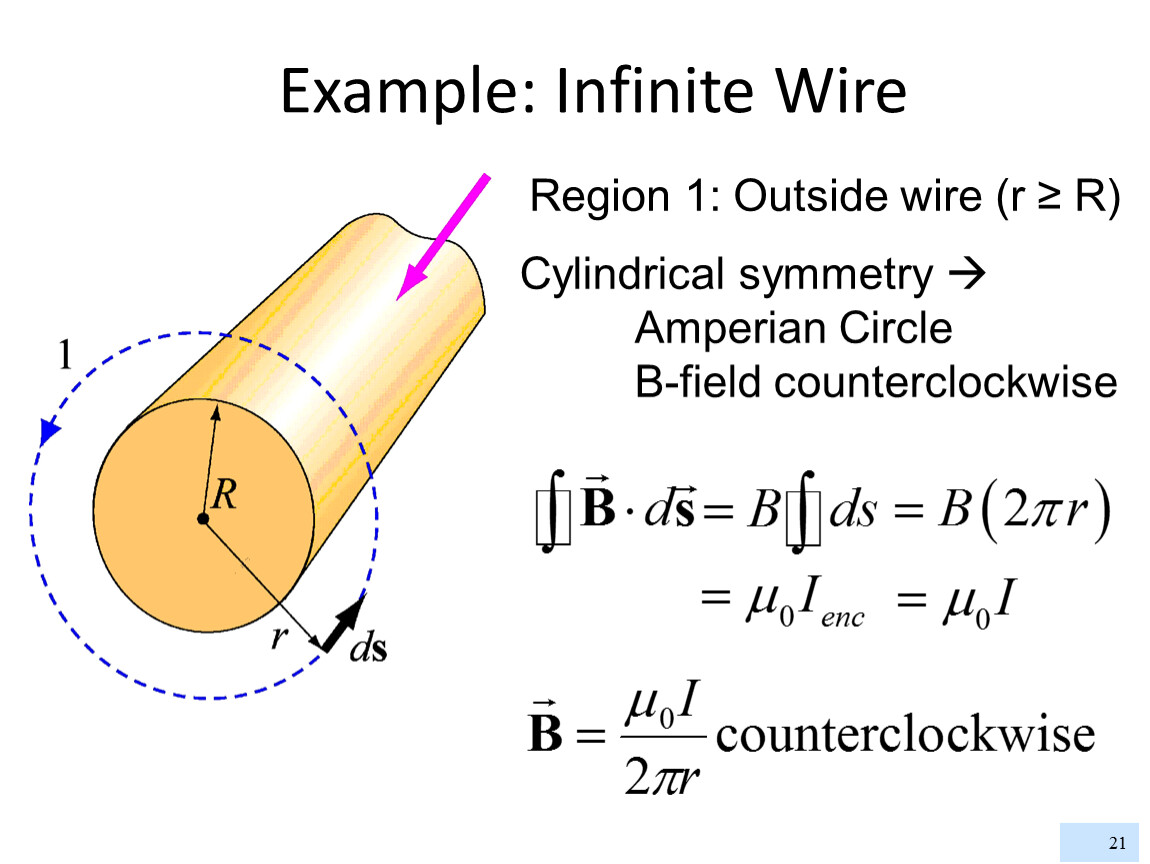

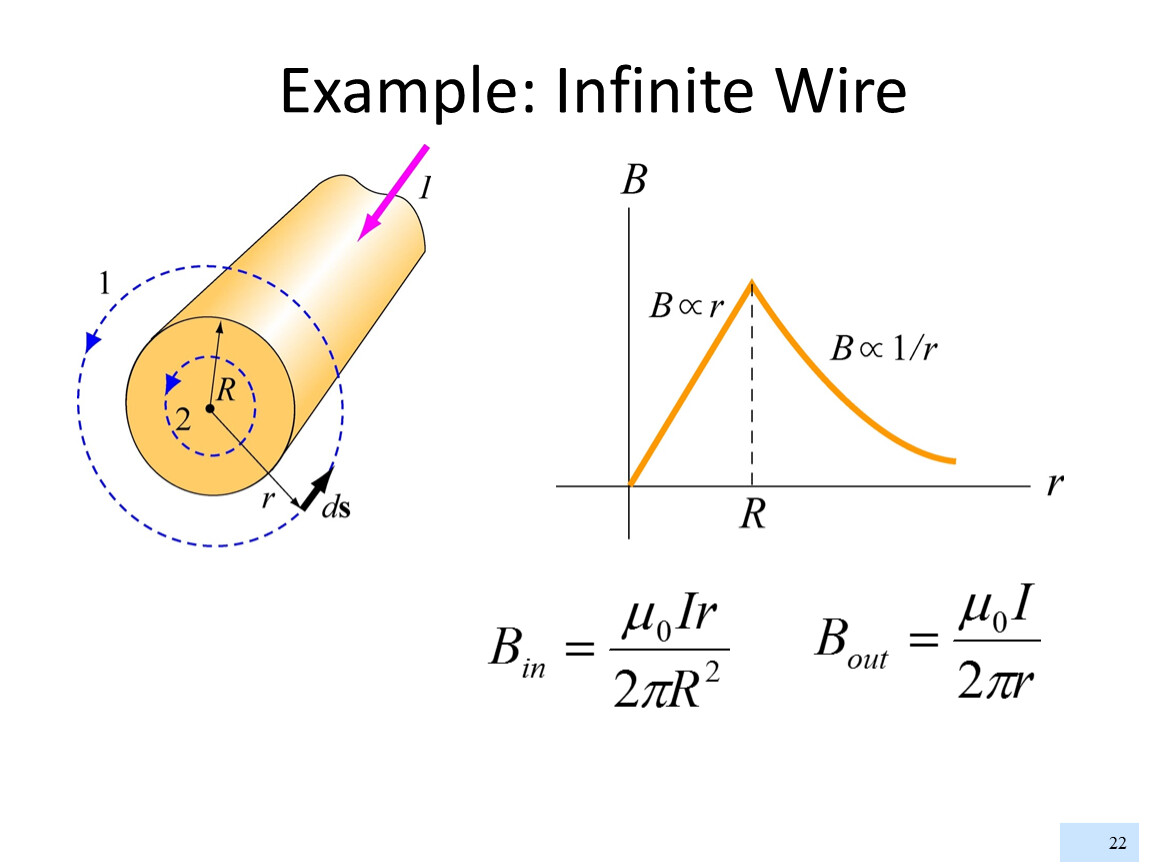

Example: Infinite Wire

Region 1: Outside wire (r ≥ R)

Cylindrical symmetry 
Amperian Circle
B-field counterclockwise

22

Example: Infinite Wire

23

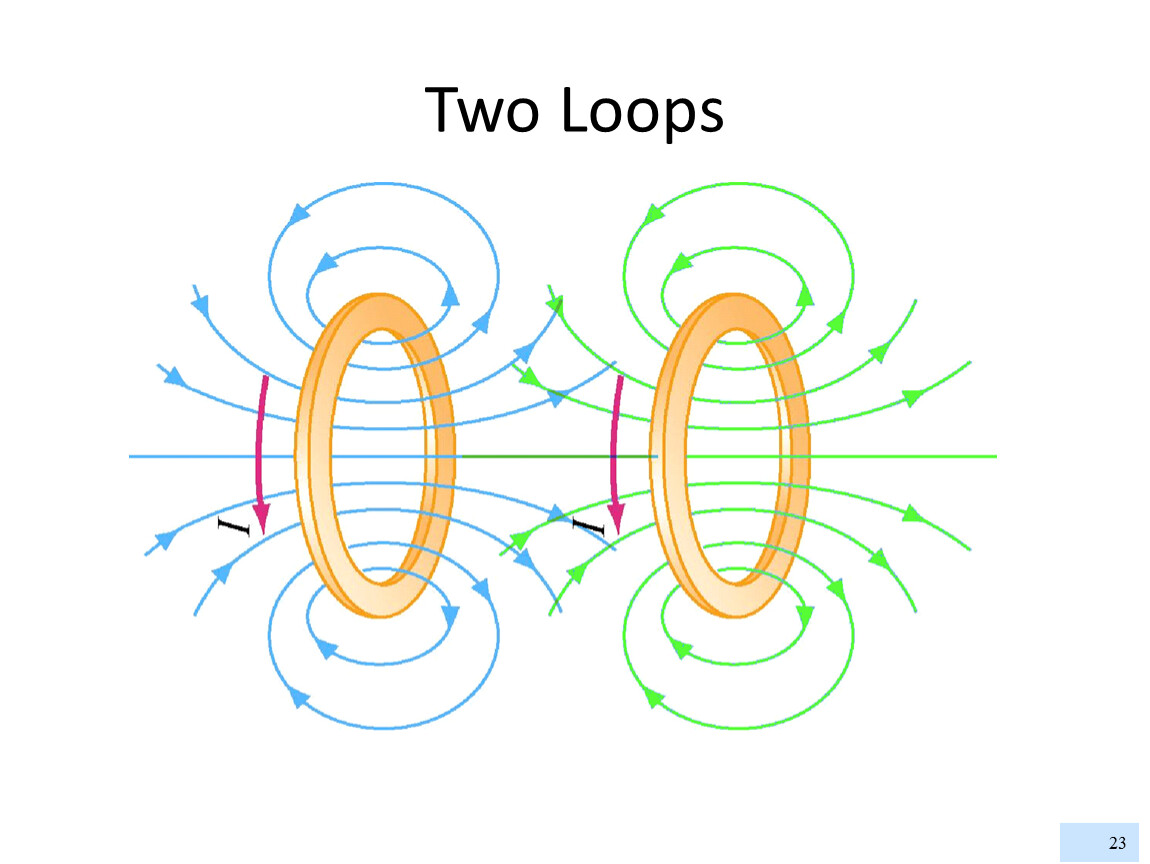

Two Loops

24

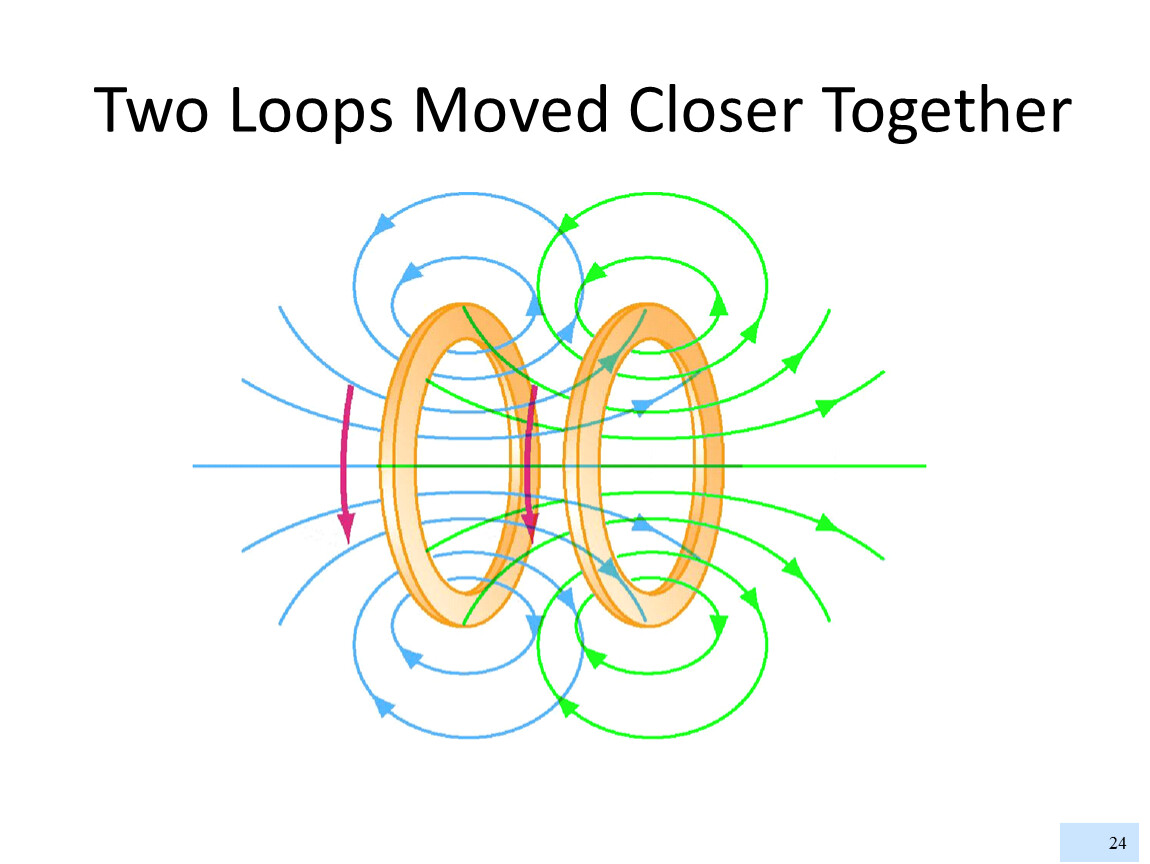

Two Loops Moved Closer Together

25

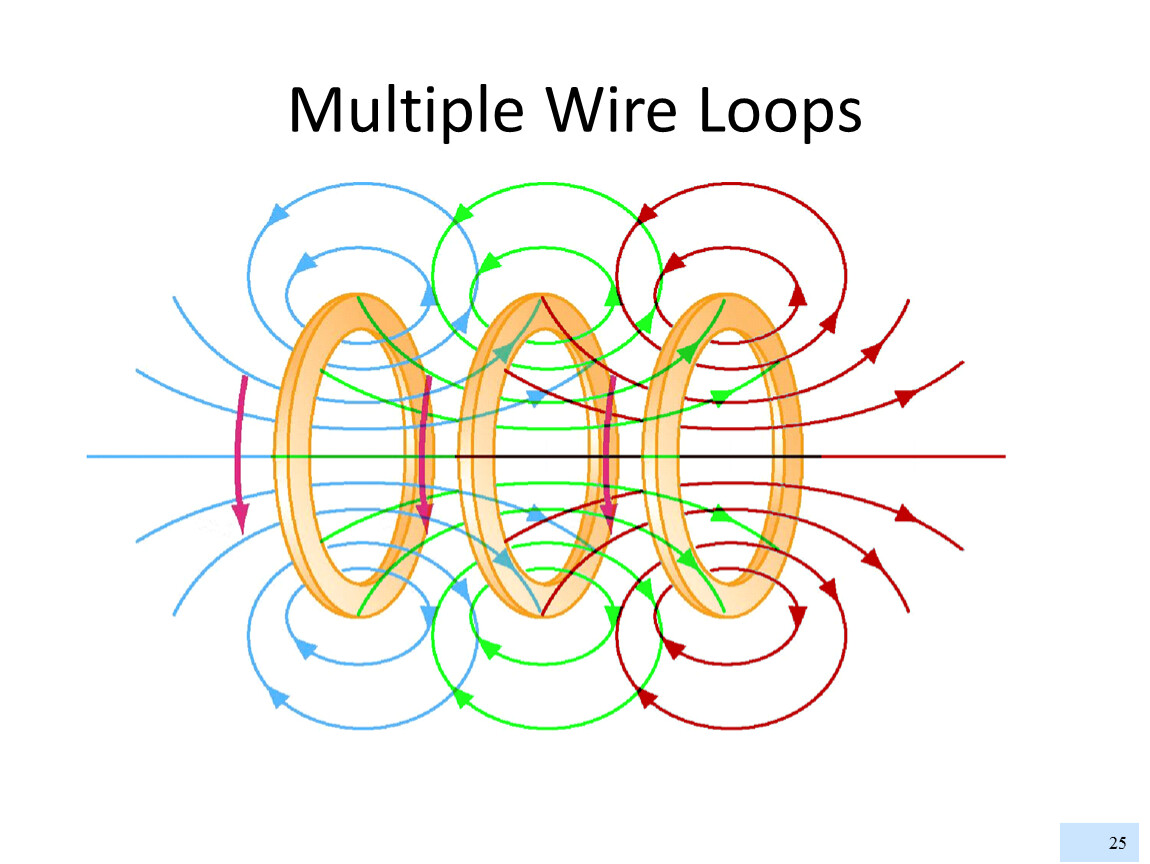

Multiple Wire Loops

26

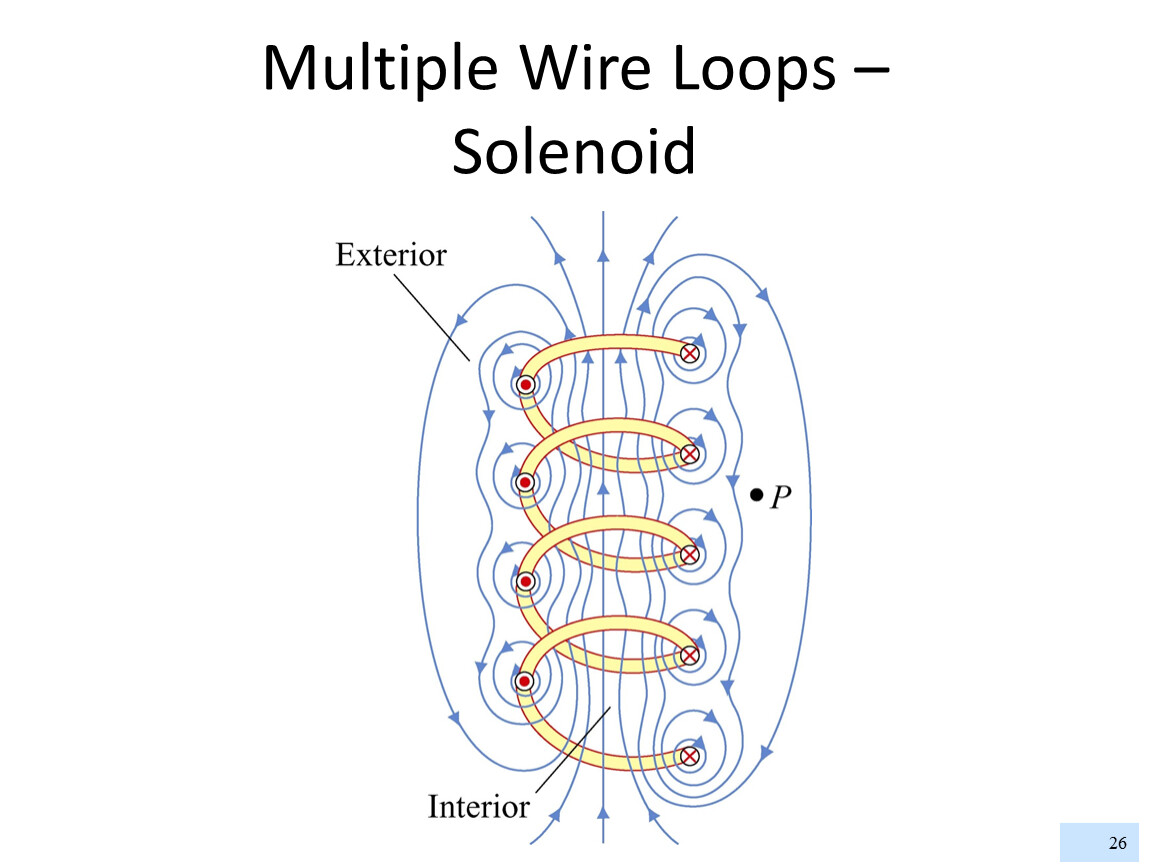

Multiple Wire Loops –Solenoid

27

Magnetic Field of Solenoid

loosely wound

tightly wound

For ideal solenoid, B is uniform inside & zero outside

Horiz.
comp.
cancel

Moving charges (currents)

Moving charges (electric currents) also produce a magnetic field

http://www.sciencebuddies.org

Conventional current – electrons flow in the opposite direction

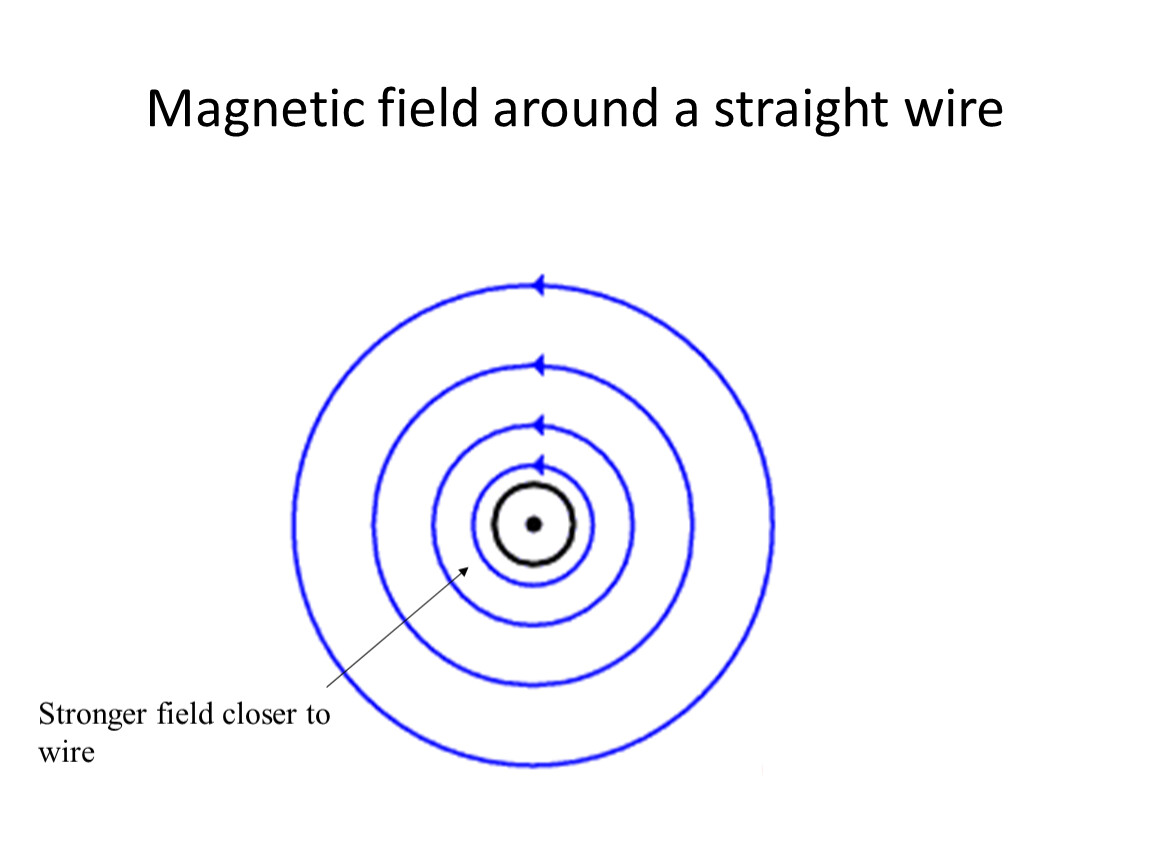

Magnetic field around a straight wire

Stronger field closer to wire

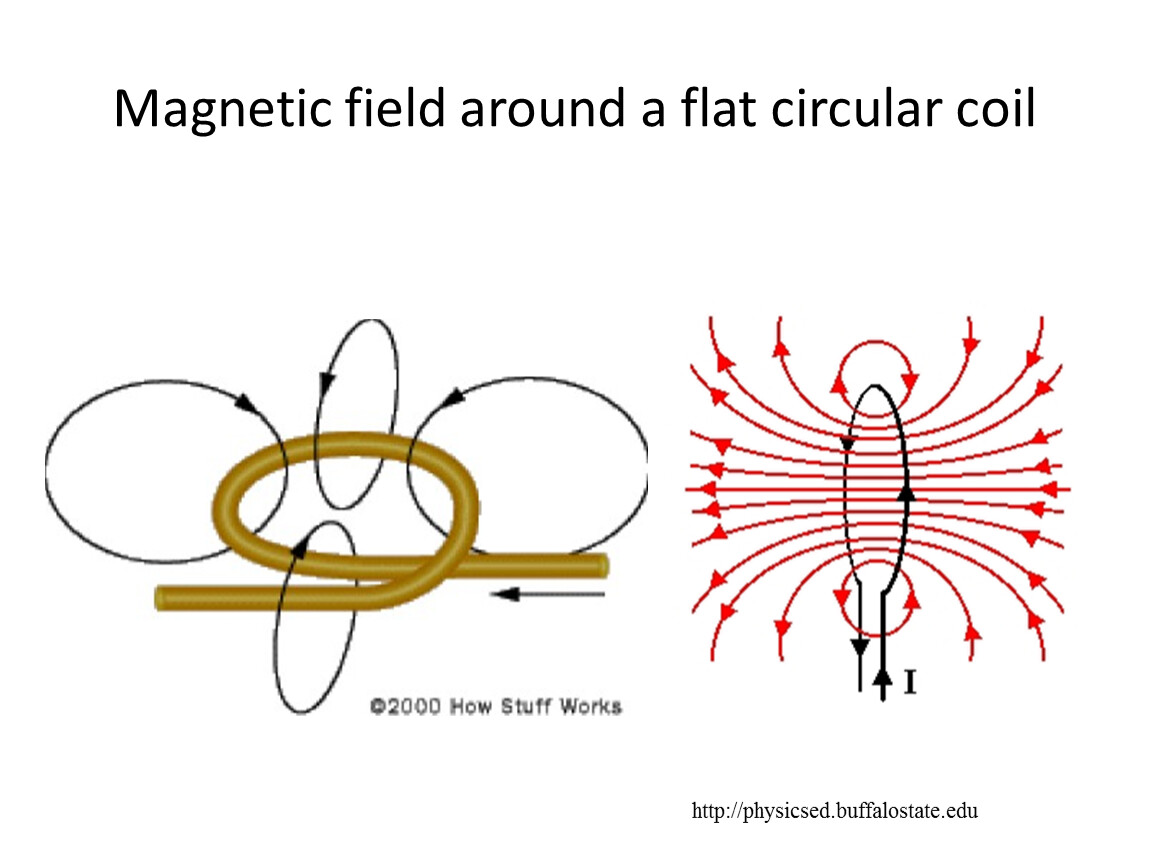

Magnetic field around a flat circular coil

http://physicsed.buffalostate.edu

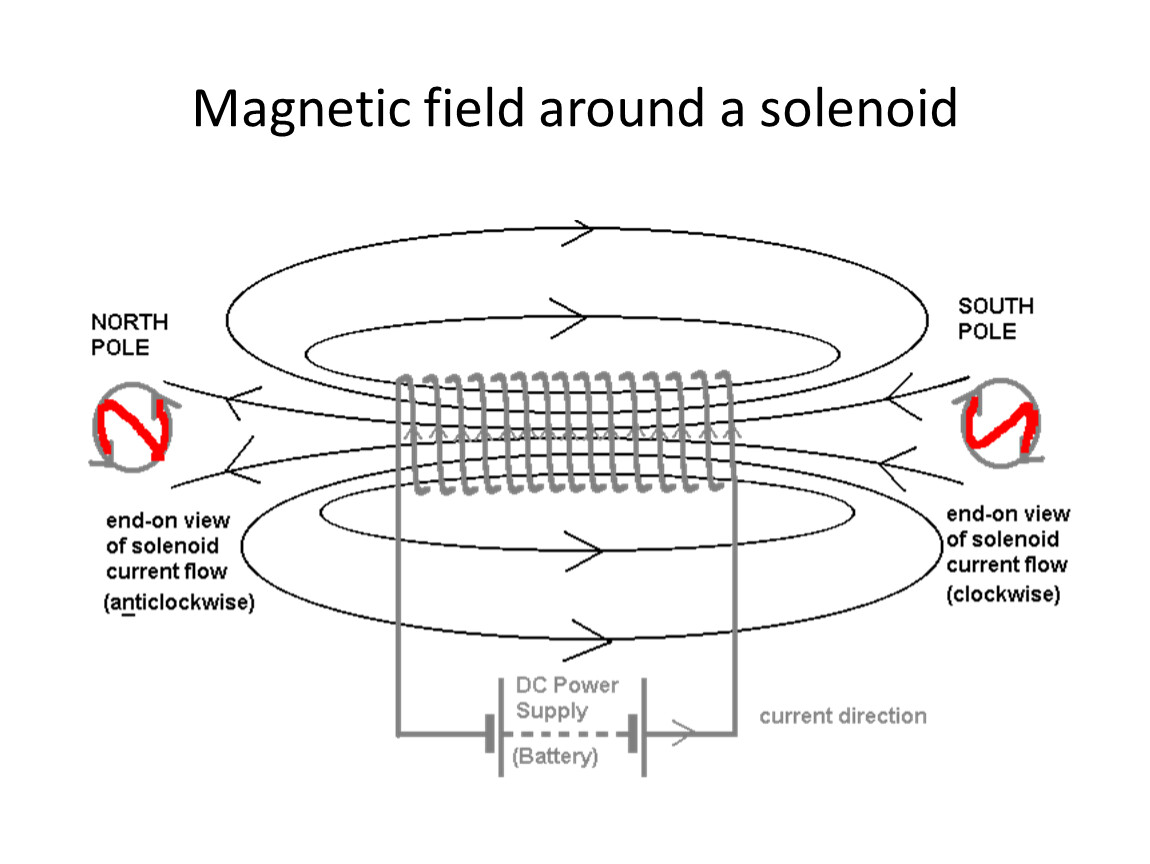

Magnetic field around a solenoid

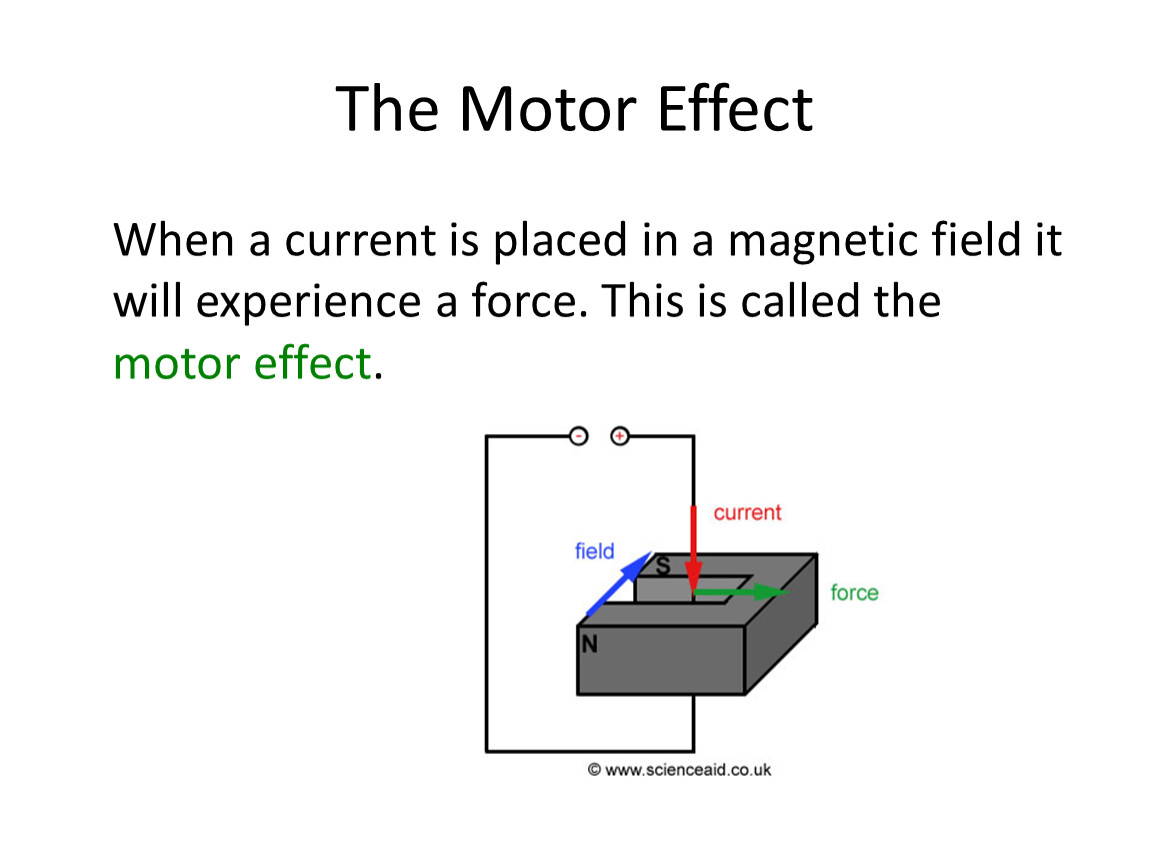

The Motor Effect

When a current is placed in a magnetic field it will experience a force. This is called the motor effect.

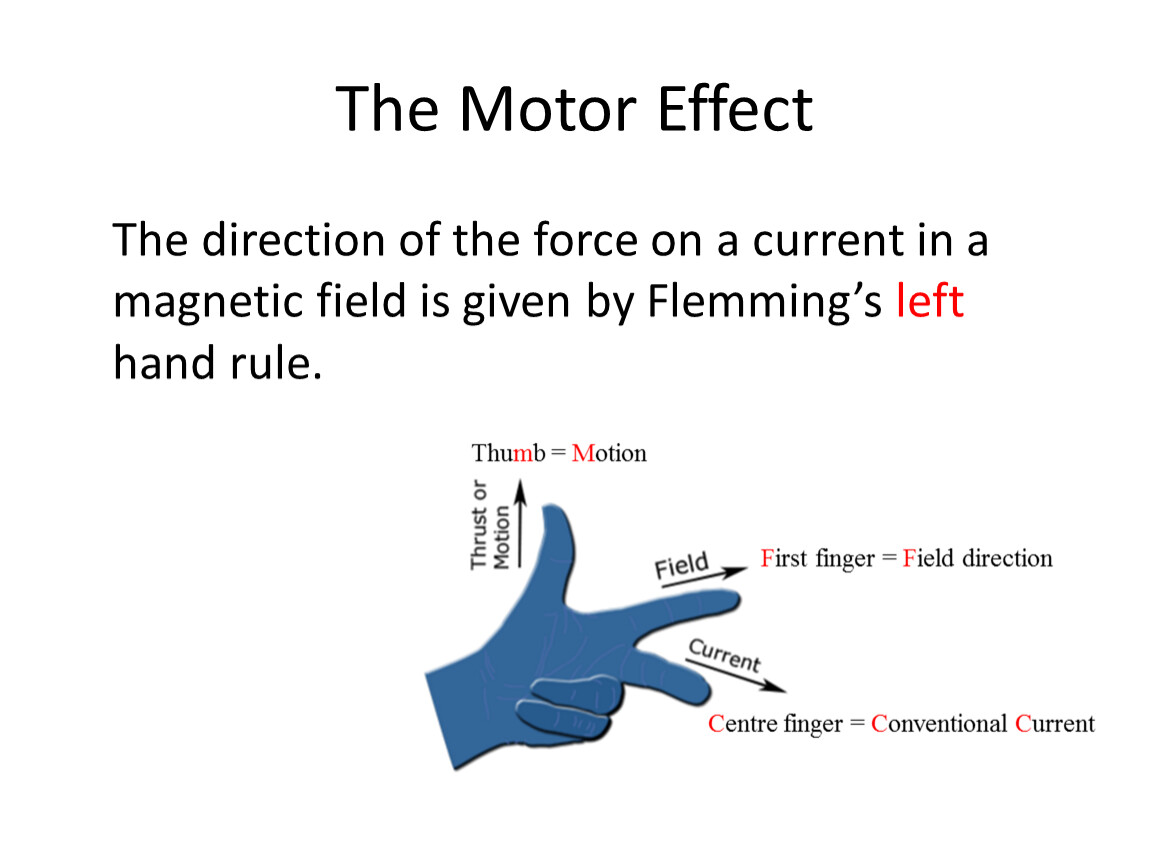

The Motor Effect

The direction of the force on a current in a magnetic field is given by Flemming’s left hand rule.

Centre finger = Conventional Current

First finger = Field direction

Thumb = Motion

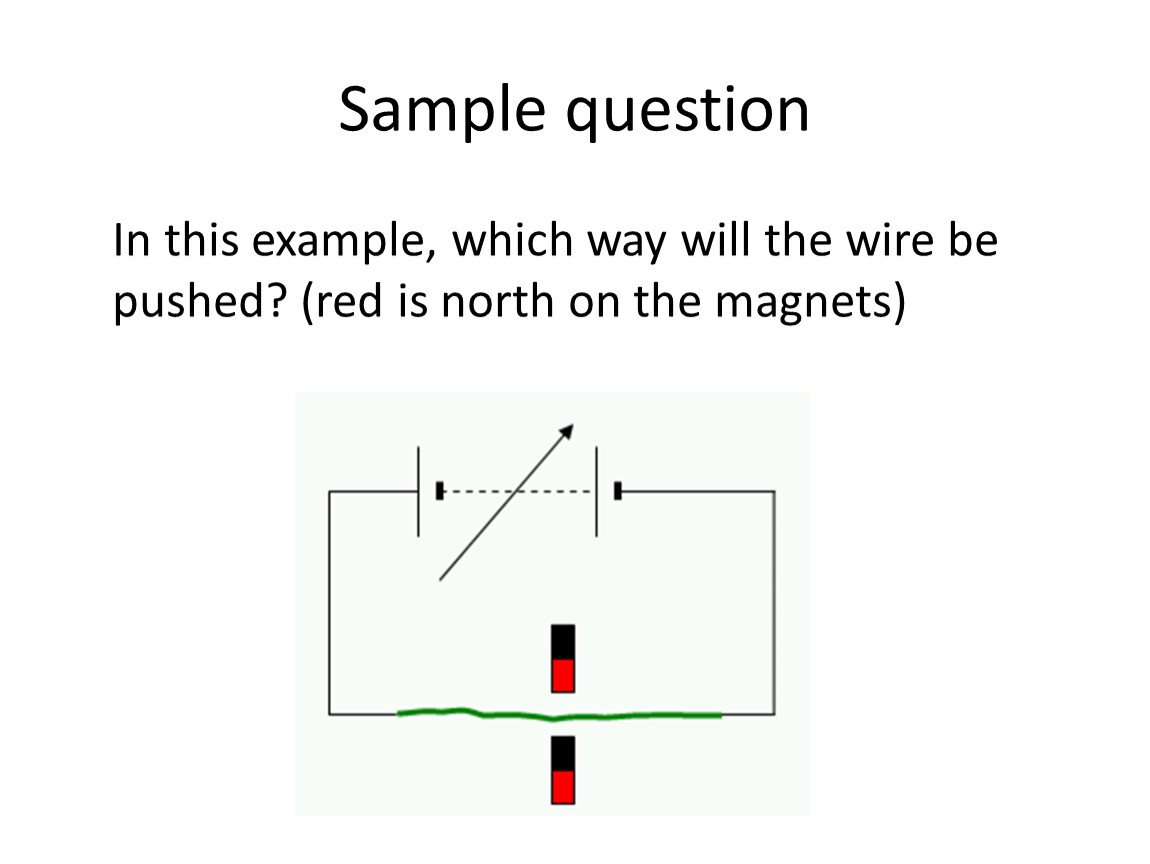

Sample question

In this example, which way will the wire be pushed? (red is north on the magnets)

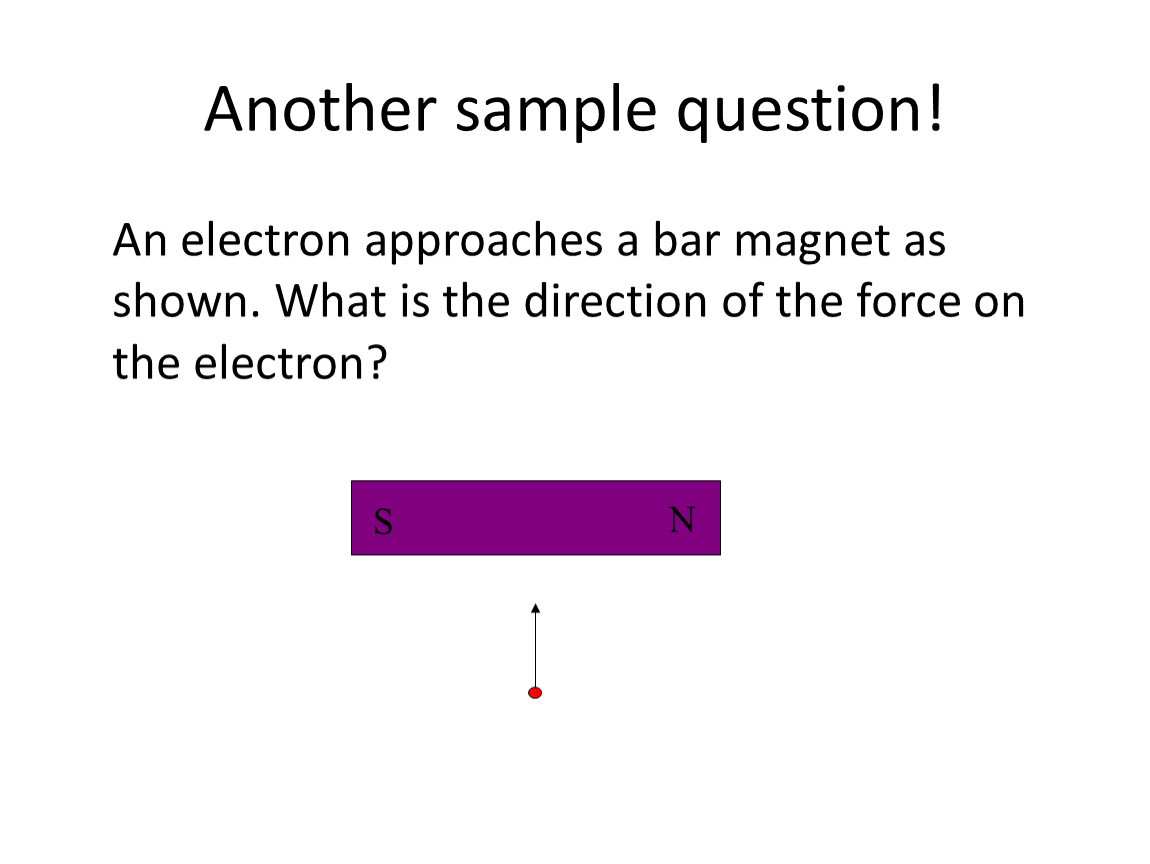

Another sample question!

An electron approaches a bar magnet as shown. What is the direction of the force on the electron?

N

S

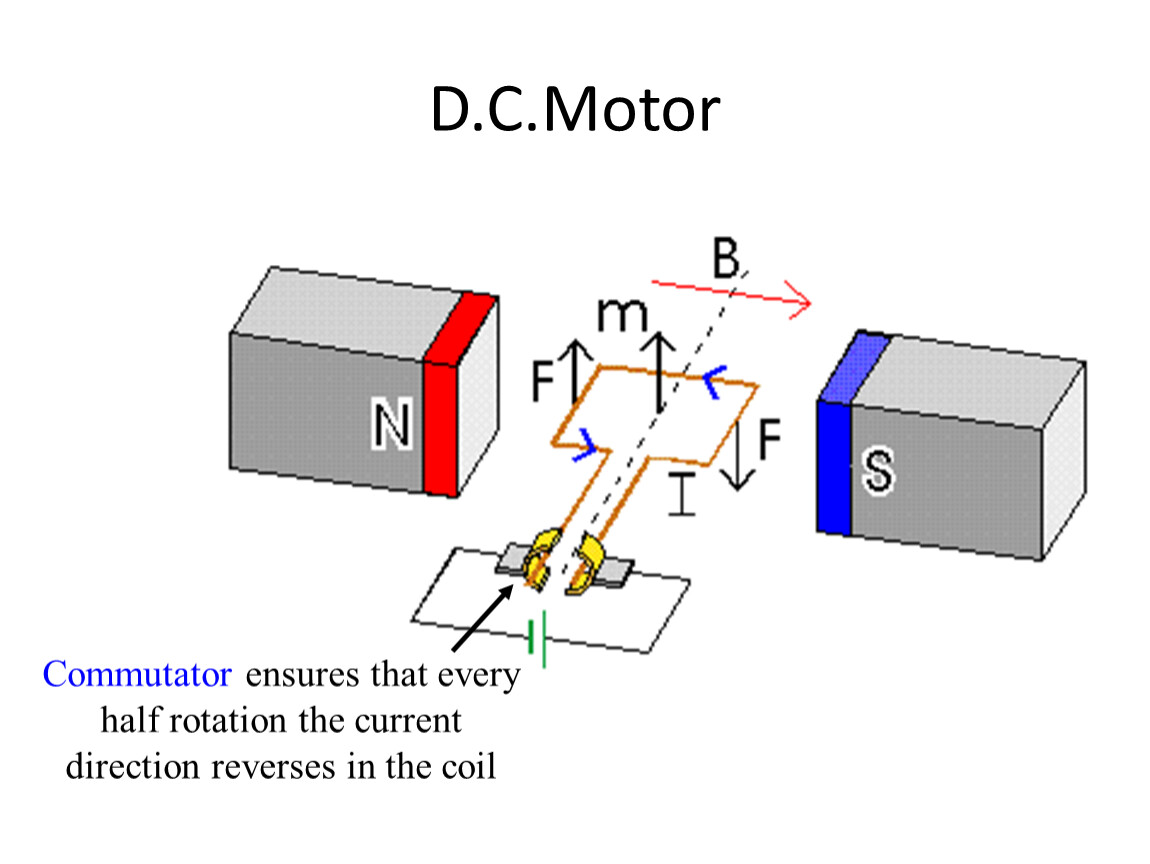

D.C.Motor

Commutator ensures that every half rotation the current direction reverses in the coil
