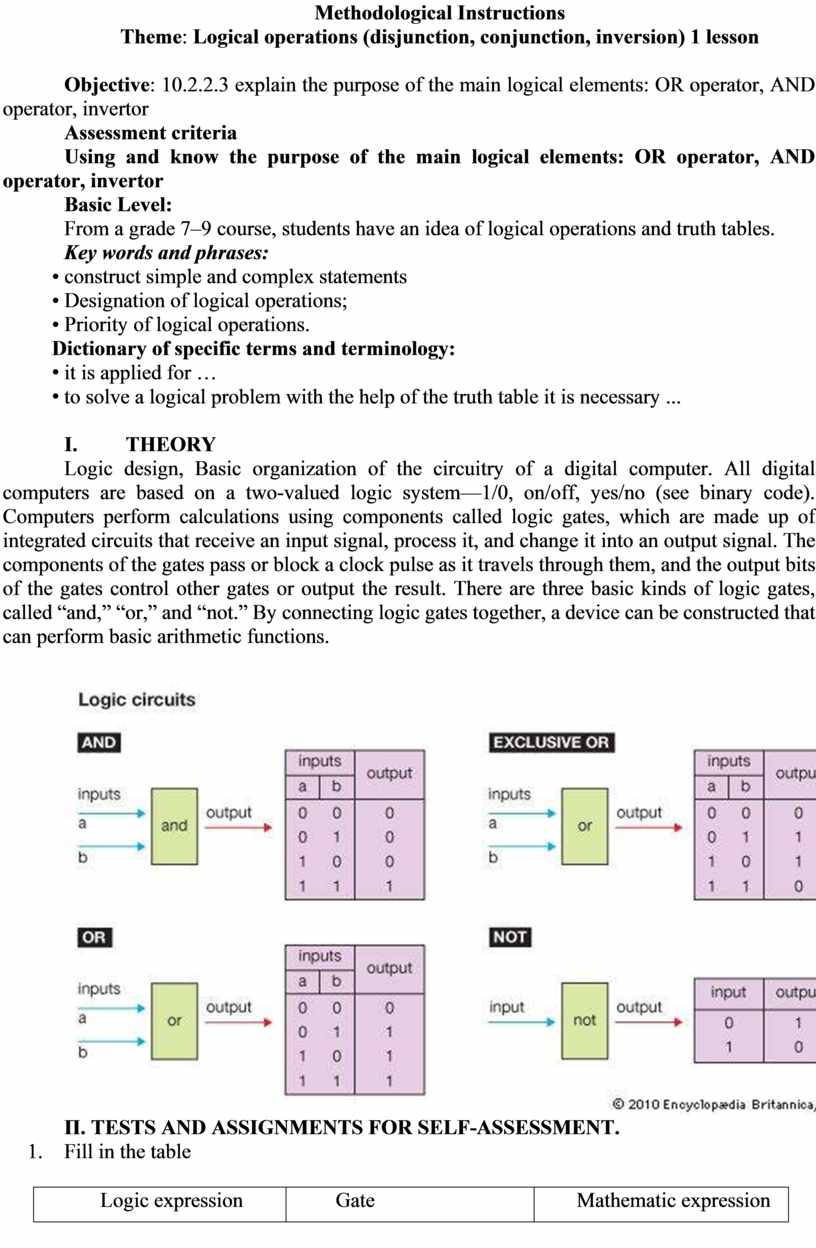

Methodological Instructions

Theme: Logical operations (disjunction, conjunction, inversion) 1 lesson

Objective: 10.2.2.3 explain the purpose of the main logical elements: OR operator, AND operator, invertor

Assessment criteria

Using and know the purpose of the main logical elements: OR operator, AND operator, invertor

Basic Level:

From a grade 7–9 course, students have an idea of logical operations and truth tables.

Key words and phrases:

• construct simple and complex statements

• Designation of logical operations;

• Priority of logical operations.

Dictionary of specific terms and terminology:

• it is applied for …

• to solve a logical problem with the help of the truth table it is necessary ...

I.                   THEORY

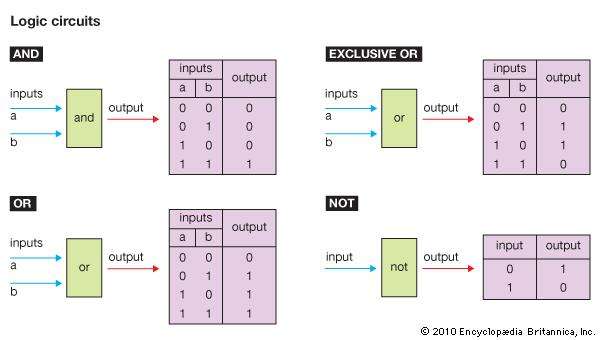

Logic design, Basic organization of the circuitry of a digital computer. All digital computers are based on a two-valued logic system—1/0, on/off, yes/no (see binary code). Computers perform calculations using components called logic gates, which are made up of integrated circuits that receive an input signal, process it, and change it into an output signal. The components of the gates pass or block a clock pulse as it travels through them, and the output bits of the gates control other gates or output the result. There are three basic kinds of logic gates, called “and,” “or,” and “not.” By connecting logic gates together, a device can be constructed that can perform basic arithmetic functions.

П. TESTS AND ASSIGNMENTS FOR SELF-ASSESSMENT.

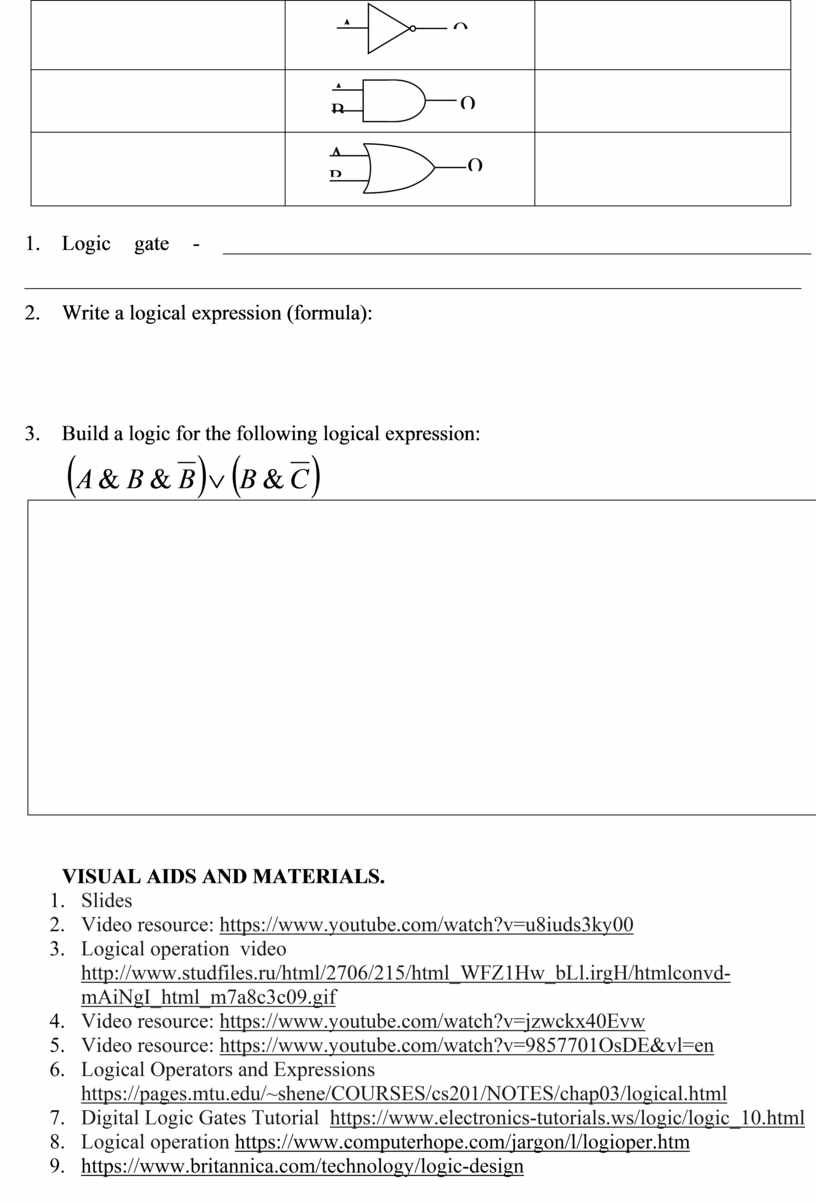

1.        Fill in the table

2.        Logic gate - ________________________________________________________                                __________________________________________________________________________

3.        Write a logical expression (formula):

4.        Build a logic for the following logical expression:

VISUAL AIDS AND MATERIALS.

1.      Slides

2.      Video resource: https://www.youtube.com/watch?v=u8iuds3ky00

3.      Logical operation  video http://www.studfiles.ru/html/2706/215/html_WFZ1Hw_bLl.irgH/htmlconvd-mAiNgI_html_m7a8c3c09.gif

4.      Video resource: https://www.youtube.com/watch?v=jzwckx40Evw

5.      Video resource: https://www.youtube.com/watch?v=9857701OsDE&vl=en

6.      Logical Operators and Expressions https://pages.mtu.edu/~shene/COURSES/cs201/NOTES/chap03/logical.html

7.      Digital Logic Gates Tutorial  https://www.electronics-tutorials.ws/logic/logic_10.html

8.      Logical operation https://www.computerhope.com/jargon/l/logioper.htm

9.      https://www.britannica.com/technology/logic-design
