Activity 1. Wall sheet

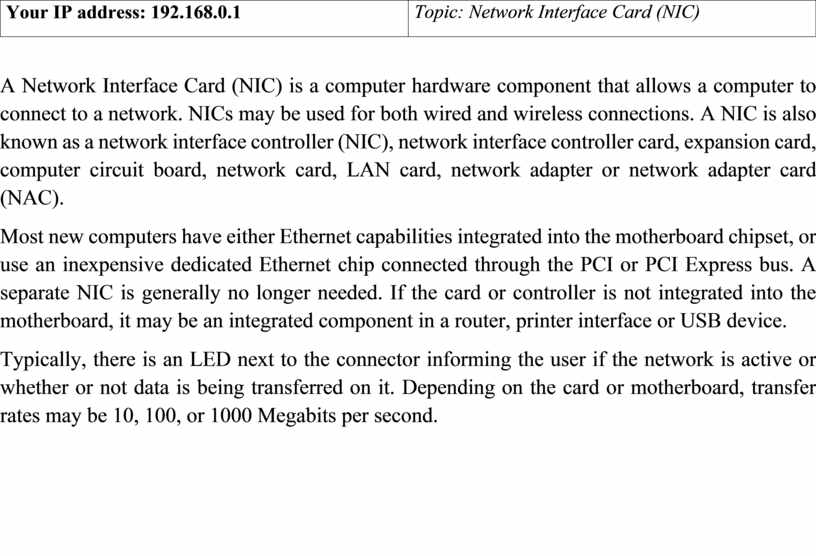

A Network Interface Card (NIC) is a computer hardware component that allows a computer to connect to a network. NICs may be used for both wired and wireless connections. A NIC is also known as a network interface controller (NIC), network interface controller card, expansion card, computer circuit board, network card, LAN card, network adapter or network adapter card (NAC).

Most new computers have either Ethernet capabilities integrated into the motherboard chipset, or use an inexpensive dedicated Ethernet chip connected through the PCI or PCI Express bus. A separate NIC is generally no longer needed. If the card or controller is not integrated into the motherboard, it may be an integrated component in a router, printer interface or USB device.

Typically, there is an LED next to the connector informing the user if the network is active or whether or not data is being transferred on it. Depending on the card or motherboard, transfer rates may be 10, 100, or 1000 Megabits per second.

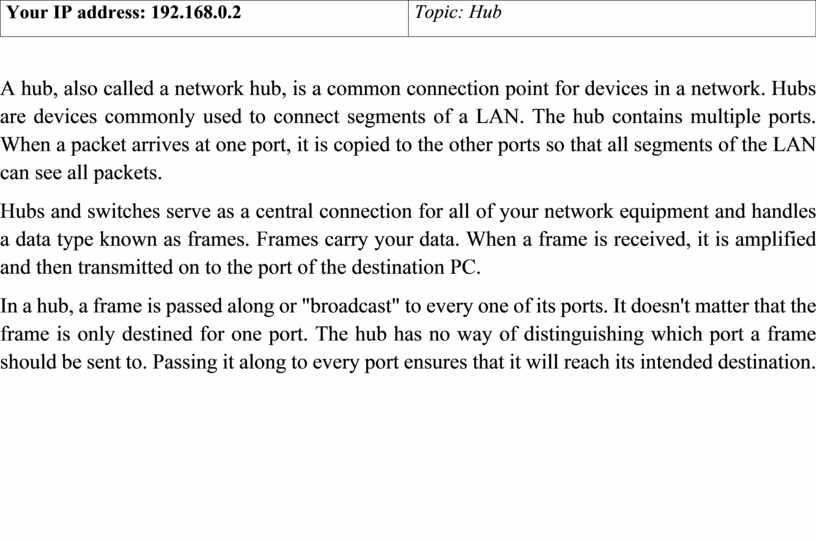

A hub, also called a network hub, is a common connection point for devices in a network. Hubs are devices commonly used to connect segments of a LAN. The hub contains multiple ports. When a packet arrives at one port, it is copied to the other ports so that all segments of the LAN can see all packets.

Hubs and switches serve as a central connection for all of your network equipment and handles a data type known as frames. Frames carry your data. When a frame is received, it is amplified and then transmitted on to the port of the destination PC.

In a hub, a frame is passed along or "broadcast" to every one of its ports. It doesn't matter that the frame is only destined for one port. The hub has no way of distinguishing which port a frame should be sent to. Passing it along to every port ensures that it will reach its intended destination.

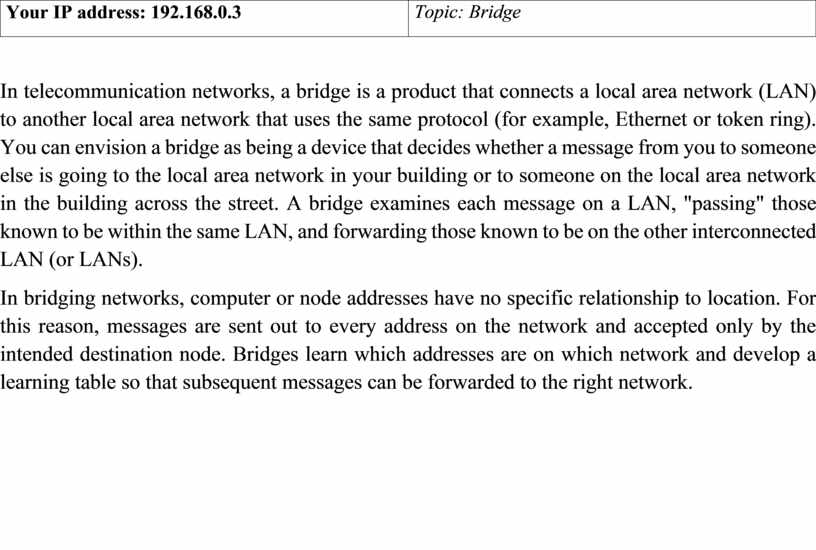

In telecommunication networks, a bridge is a product that connects a local area network (LAN) to another local area network that uses the same protocol (for example, Ethernet or token ring). You can envision a bridge as being a device that decides whether a message from you to someone else is going to the local area network in your building or to someone on the local area network in the building across the street. A bridge examines each message on a LAN, "passing" those known to be within the same LAN, and forwarding those known to be on the other interconnected LAN (or LANs).

In bridging networks, computer or node addresses have no specific relationship to location. For this reason, messages are sent out to every address on the network and accepted only by the intended destination node. Bridges learn which addresses are on which network and develop a learning table so that subsequent messages can be forwarded to the right network.

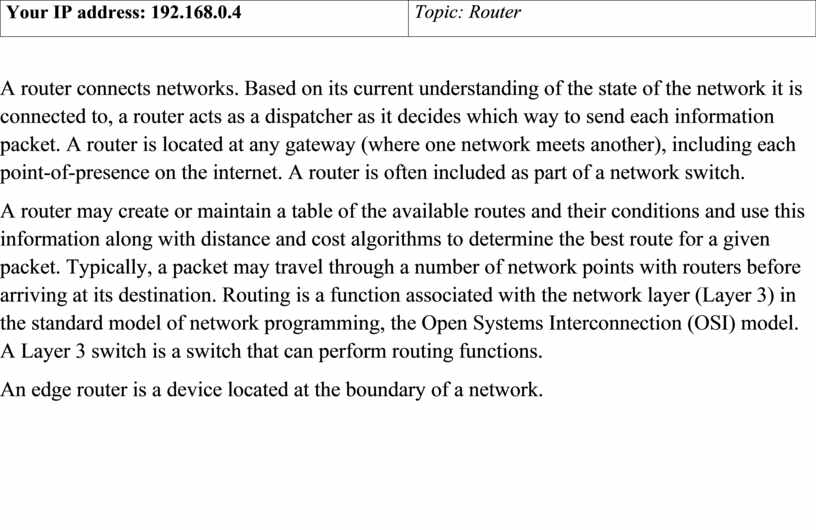

A router connects networks. Based on its current understanding of the state of the network it is connected to, a router acts as a dispatcher as it decides which way to send each information packet. A router is located at any gateway (where one network meets another), including each point-of-presence on the internet. A router is often included as part of a network switch.

A router may create or maintain a table of the available routes and their conditions and use this information along with distance and cost algorithms to determine the best route for a given packet. Typically, a packet may travel through a number of network points with routers before arriving at its destination. Routing is a function associated with the network layer (Layer 3) in the standard model of network programming, the Open Systems Interconnection (OSI) model. A Layer 3 switch is a switch that can perform routing functions.

An edge router is a device located at the boundary of a network.

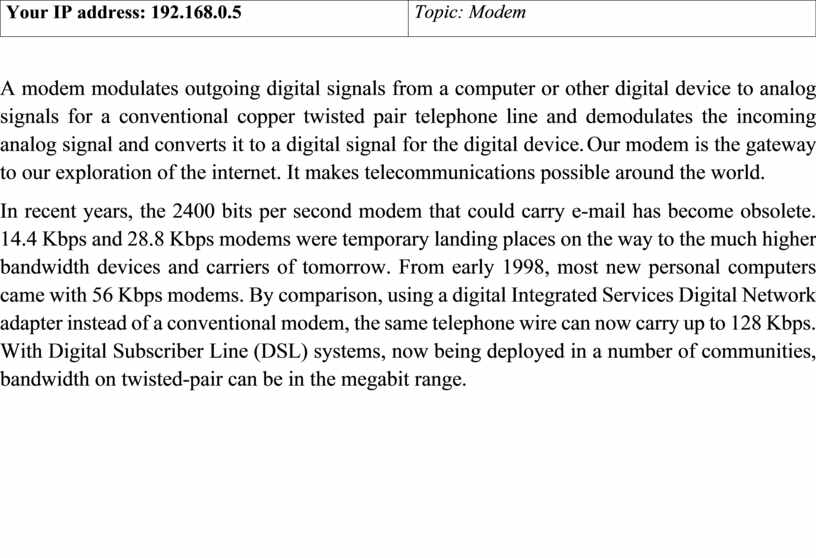

A modem modulates outgoing digital signals from a computer or other digital device to analog signals for a conventional copper twisted pair telephone line and demodulates the incoming analog signal and converts it to a digital signal for the digital device. Our modem is the gateway to our exploration of the internet. It makes telecommunications possible around the world.

In recent years, the 2400 bits per second modem that could carry e-mail has become obsolete. 14.4 Kbps and 28.8 Kbps modems were temporary landing places on the way to the much higher bandwidth devices and carriers of tomorrow. From early 1998, most new personal computers came with 56 Kbps modems. By comparison, using a digital Integrated Services Digital Network adapter instead of a conventional modem, the same telephone wire can now carry up to 128 Kbps. With Digital Subscriber Line (DSL) systems, now being deployed in a number of communities, bandwidth on twisted-pair can be in the megabit range.

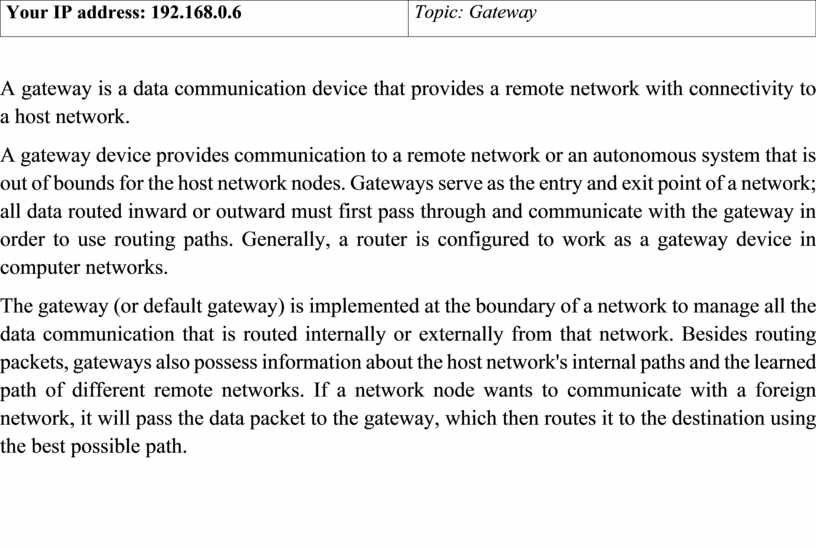

A gateway is a data communication device that provides a remote network with connectivity to a host network.

A gateway device provides communication to a remote network or an autonomous system that is out of bounds for the host network nodes. Gateways serve as the entry and exit point of a network; all data routed inward or outward must first pass through and communicate with the gateway in order to use routing paths. Generally, a router is configured to work as a gateway device in computer networks.

The gateway (or default gateway) is implemented at the boundary of a network to manage all the data communication that is routed internally or externally from that network. Besides routing packets, gateways also possess information about the host network's internal paths and the learned path of different remote networks. If a network node wants to communicate with a foreign network, it will pass the data packet to the gateway, which then routes it to the destination using the best possible path.

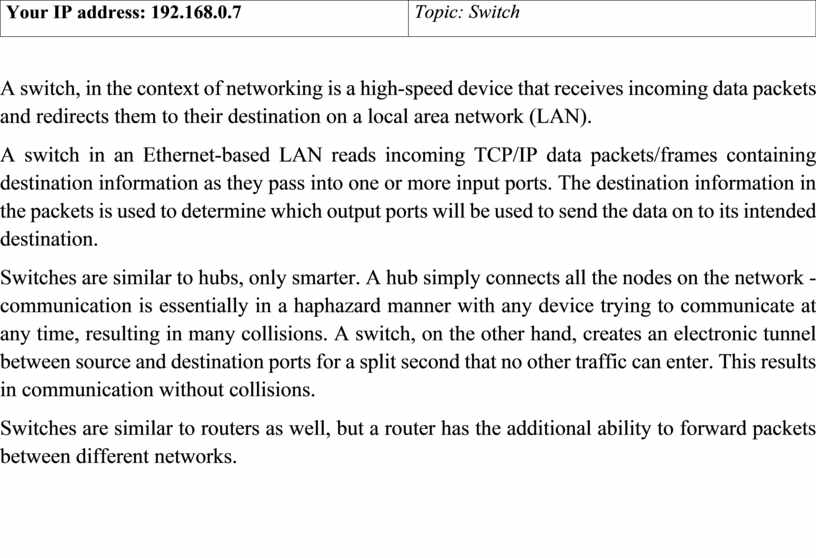

A switch, in the context of networking is a high-speed device that receives incoming data packets and redirects them to their destination on a local area network (LAN).

A switch in an Ethernet-based LAN reads incoming TCP/IP data packets/frames containing destination information as they pass into one or more input ports. The destination information in the packets is used to determine which output ports will be used to send the data on to its intended destination.

Switches are similar to hubs, only smarter. A hub simply connects all the nodes on the network - communication is essentially in a haphazard manner with any device trying to communicate at any time, resulting in many collisions. A switch, on the other hand, creates an electronic tunnel between source and destination ports for a split second that no other traffic can enter. This results in communication without collisions.

Switches are similar to routers as well, but a router has the additional ability to forward packets between different networks.
