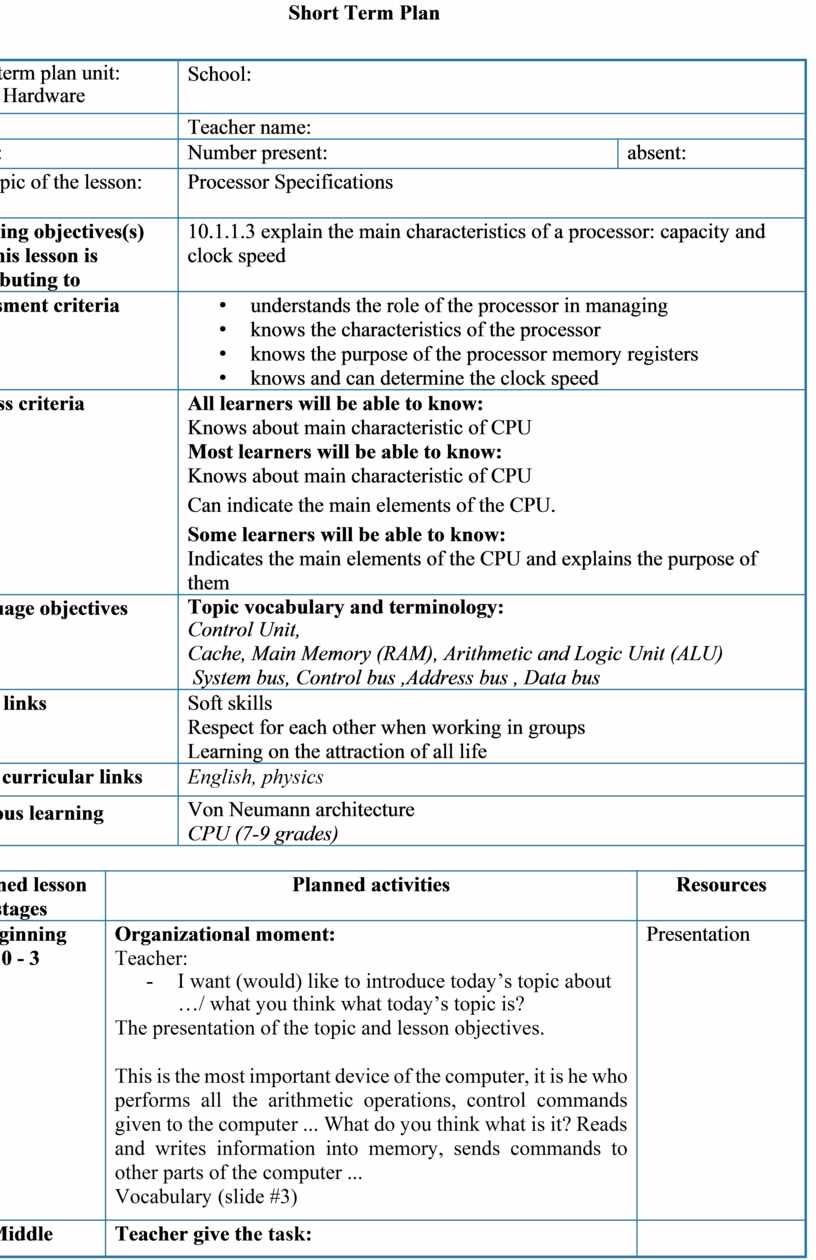

Hardware Processor Specifications lesson plan 1 variant

Long-term plan unit: 10.1A Hardware

School:

Date:

Teacher name:

Grade:

Number present:

absent:

The topic of the lesson:

Processor Specifications

Learning objectives(s) that this lesson is contributing to

10.1.1.3 explain the main characteristics of a processor: capacity and clock speed

Assessment criteria

•      understands the role of the processor in managing

•      knows the characteristics of the processor

•      knows the purpose of the processor memory registers

•      knows and can determine the clock speed

Success criteria

All learners will be able to know:

Knows about main characteristic of CPU

Most learners will be able to know:

Knows about main characteristic of CPU

Can indicate the main elements of the CPU.

Some learners will be able to know:

Indicates the main elements of the CPU and explains the purpose of them

Language objectives

Topic vocabulary and terminology:

Control Unit,

Cache, Main Memory (RAM), Arithmetic and Logic Unit (ALU)

 System bus, Control bus ,Address bus , Data bus

Value links

Soft skills

Respect for each other when working in groups

Learning on the attraction of all life

Cross curricular links

English, physics

Previous learning

Von Neumann architecture

CPU (7-9 grades)

Plan

Planned lesson stages

Planned activities

Resources

Beginning

0 - 3

Organizational moment:

Teacher:

-          I want (would) like to introduce today’s topic about …/ what you think what today’s topic is?

The presentation of the topic and lesson objectives.

This is the most important device of the computer, it is he who performs all the arithmetic operations, control commands given to the computer ... What do you think what is it? Reads and writes information into memory, sends commands to other parts of the computer ...

Vocabulary (slide #3)

Presentation

Middle

3 – 10

10 - 15

15 - 20

20 – 35

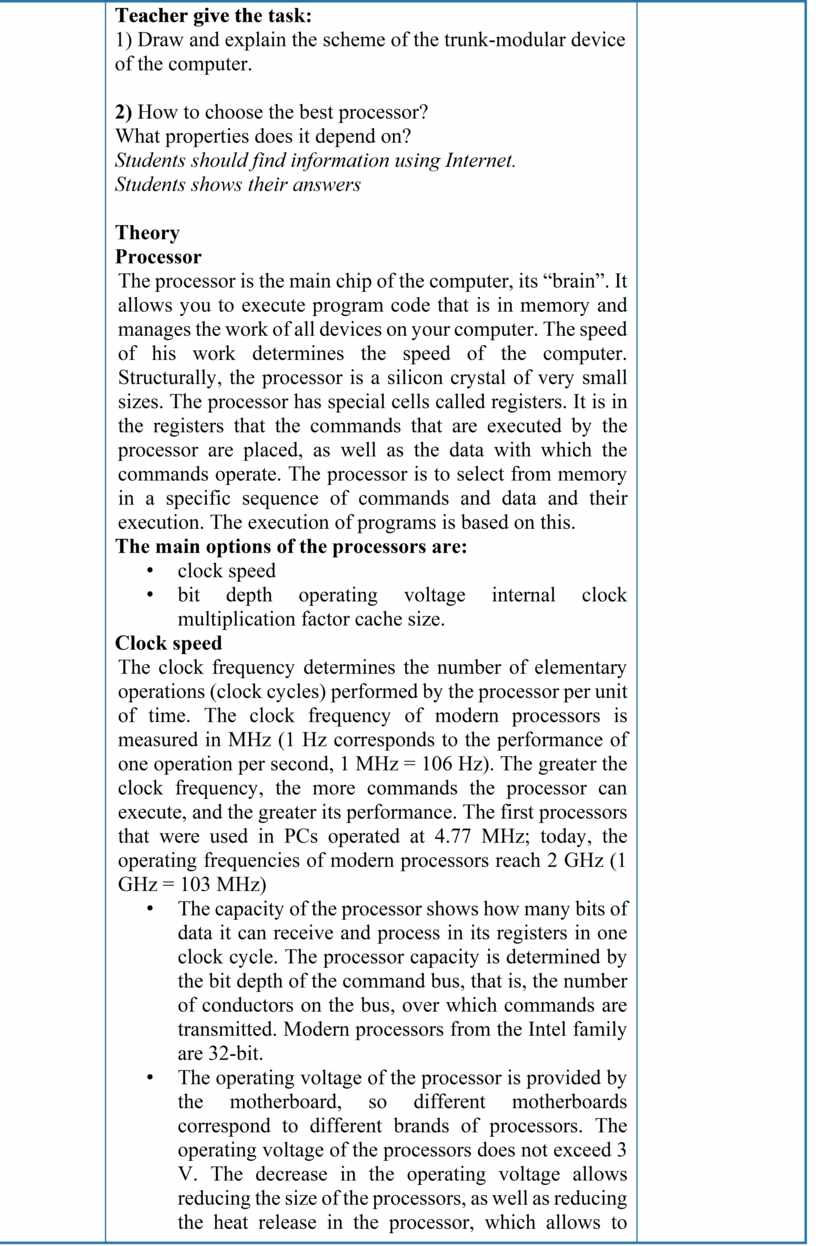

Teacher give the task:

1) Draw and explain the scheme of the trunk-modular device of the computer.

2) How to choose the best processor?

What properties does it depend on?

Students should find information using Internet.

Students shows their answers

Theory

Processor

The processor is the main chip of the computer, its “brain”. It allows you to execute program code that is in memory and manages the work of all devices on your computer. The speed of his work determines the speed of the computer. Structurally, the processor is a silicon crystal of very small sizes. The processor has special cells called registers. It is in the registers that the commands that are executed by the processor are placed, as well as the data with which the commands operate. The processor is to select from memory in a specific sequence of commands and data and their execution. The execution of programs is based on this.

The main options of the processors are:

•      clock speed

•      bit depth operating voltage internal clock multiplication factor cache size.

Clock speed

The clock frequency determines the number of elementary operations (clock cycles) performed by the processor per unit of time. The clock frequency of modern processors is measured in MHz (1 Hz corresponds to the performance of one operation per second, 1 MHz = 106 Hz). The greater the clock frequency, the more commands the processor can execute, and the greater its performance. The first processors that were used in PCs operated at 4.77 MHz; today, the operating frequencies of modern processors reach 2 GHz (1 GHz = 103 MHz)

•      The capacity of the processor shows how many bits of data it can receive and process in its registers in one clock cycle. The processor capacity is determined by the bit depth of the command bus, that is, the number of conductors on the bus, over which commands are transmitted. Modern processors from the Intel family are 32-bit.

•      The operating voltage of the processor is provided by the motherboard, so different motherboards correspond to different brands of processors. The operating voltage of the processors does not exceed 3 V. The decrease in the operating voltage allows reducing the size of the processors, as well as reducing the heat release in the processor, which allows to increase its performance without the threat of overheating.

Internal multiplication factor clock speed

The internal clock multiplication factor is the coefficient by which the motherboard clock frequency should be multiplied to reach the processor frequency. The processor receives clock signals from the motherboard, which, for purely physical reasons, cannot operate at such high frequencies as the processor. At present, the clock frequency of motherboards is 100-133 MHz. For higher frequencies, internal multiplication by a factor of 4, 4.5, 5 and more occurs in the processor.

Bus

With other devices, and primarily with RAM, the processor is connected by groups of conductors, which are called buses. There are three main tires:

•      data bus,

•      address bus,

•      command bus.

Address Bus. Data transmitted over this bus are treated as addresses of memory cells. It is from this bus that the processor reads the addresses of the commands to be executed, as well as the data with which the commands operate. In modern processors, the address bus is 32-bit, that is, it consists of 32 parallel conductors.

•      Data bus. This bus copies data from the RAM to the processor registers and vice versa. The PC is based on Intel Pentium 64-bit data bus. This means that in a single clock cycle, 8 bytes of data arrive immediately.

•      Command bus This bus from the RAM receives commands executed by the processor. Commands are in the form of bytes. Simple commands are invested in one byte, but there are also commands for which you need two, three or more bytes. Most modern processors have a 32-bit command bus, although there are 64-bit processors with a command bus.

•      Bus on the motherboard are used not only to communicate with the processor. All other internal devices of the motherboard, as well as devices that connect to it, interact with each other using tires. From the architecture of these elements depends largely on the performance of the PC as a whole.

The end of the lesson

35 – 40

At the end of the lesson, learners reflect on their learning:

✓            What has been learned

✓            What remained unclear

✓            What needs more attention

Differentiation – how do you plan to give more support? How do you plan to challenge the more able learners?

Assessment – how are you planning to check learners’ learning?

Health and safety check
ICT links

Differentiation can be expressed in the selection of tasks, in the expected result from a particular student, in providing individual support to the student, in selecting the educational material and resources, taking into account the individual abilities of the students (Theory of Multiple Intelligence by Gardner). Differentiation can be used at any stage of the lesson, taking into account the rational use of time.

Use this section to record the methods that you will use to assess what the students have learned during the lesson.

Health and safety check links.

Used active exercises.

Items applied from the Safety Rules in this lesson.

Reflection

Were the lesson objectives/learning objectives realistic? Did all learners achieve the LO?

If not, why?

Did my planned differentiation work well?

Did I stick to timings?

What changes did I make from my plan and why?

Use the space below to reflect on your lesson. Answer the most relevant questions from the box on the left about your lesson.

Summary evaluation

What two things went really well (consider both teaching and learning)?

1:

2:

What two things would have improved the lesson (consider both teaching and learning)?

1:

2:

What have I learned from this lesson about the class or individuals that will inform my next lesson?
